Home >> Ford >> 2008 >> Escape 4WD V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module

Steering Control Module

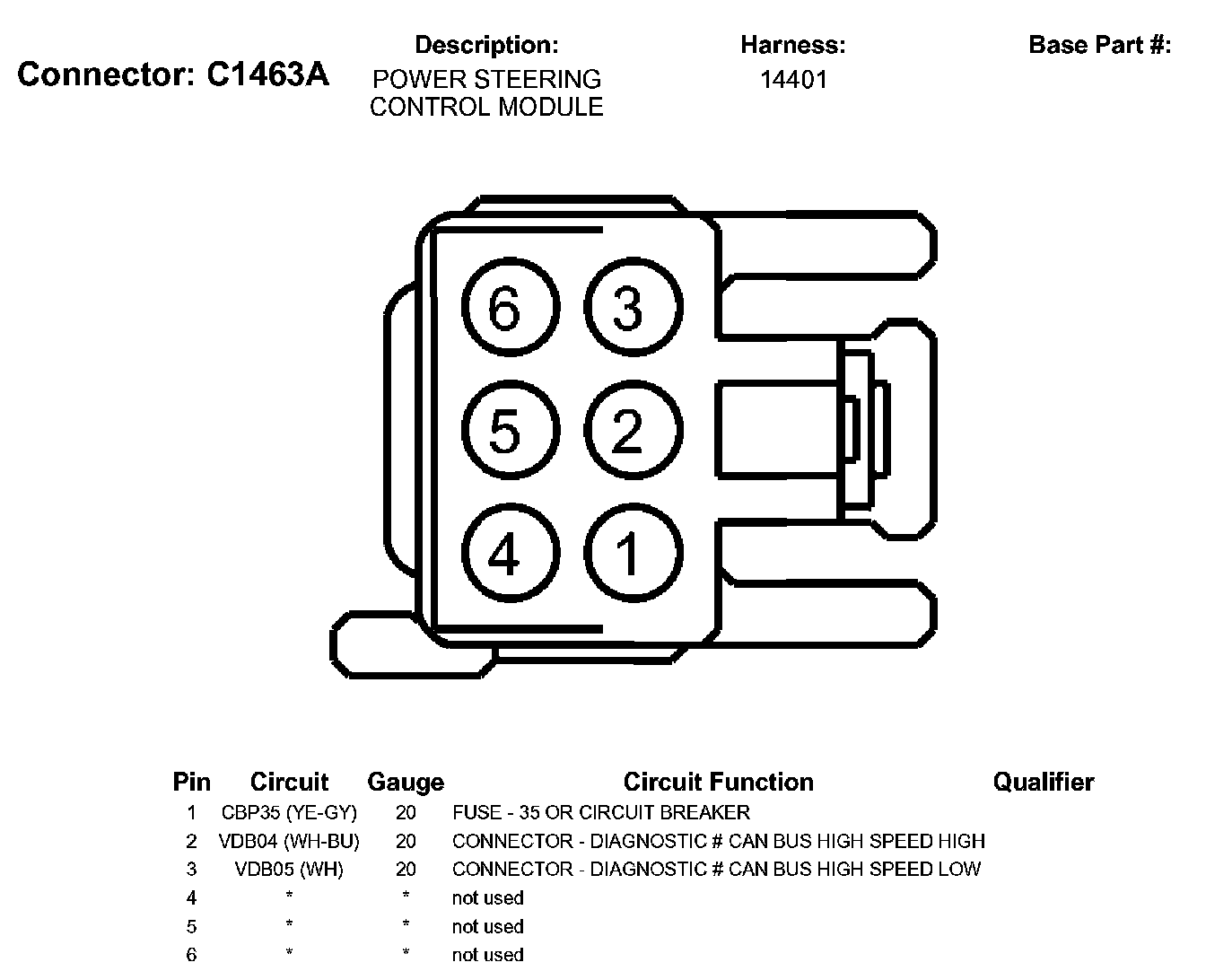

C1463A:

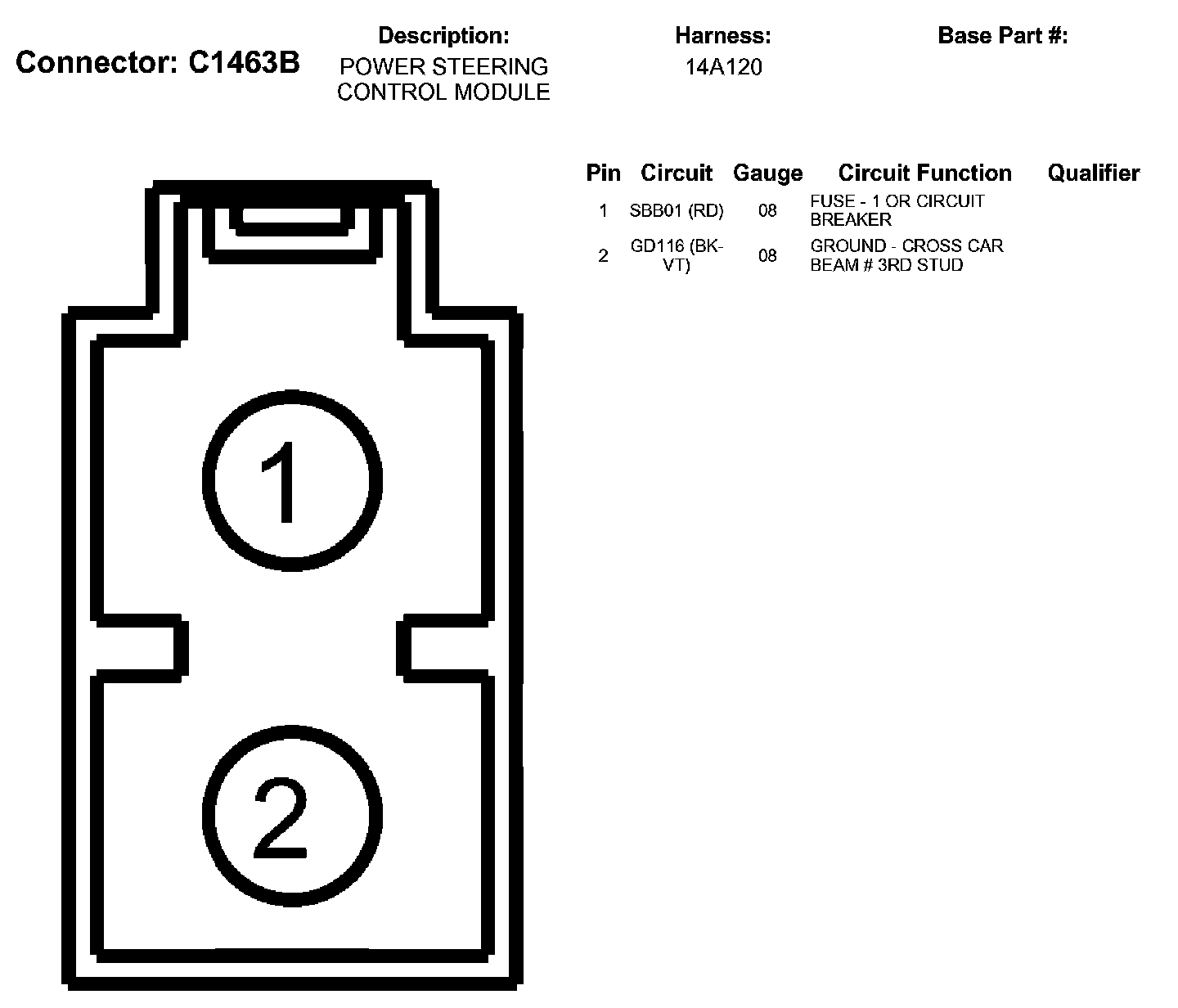

C1463B:
