Torque Specifications

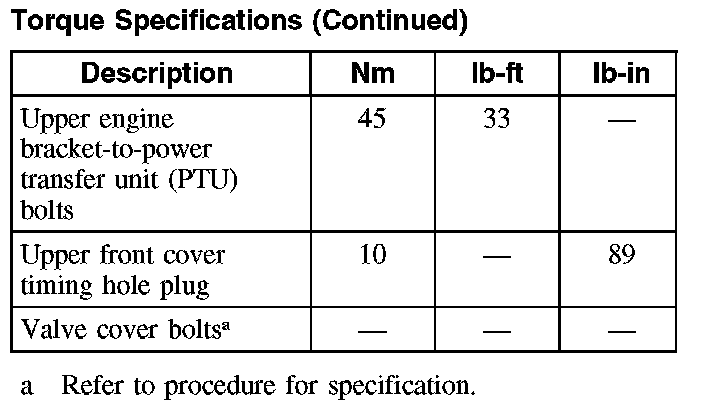

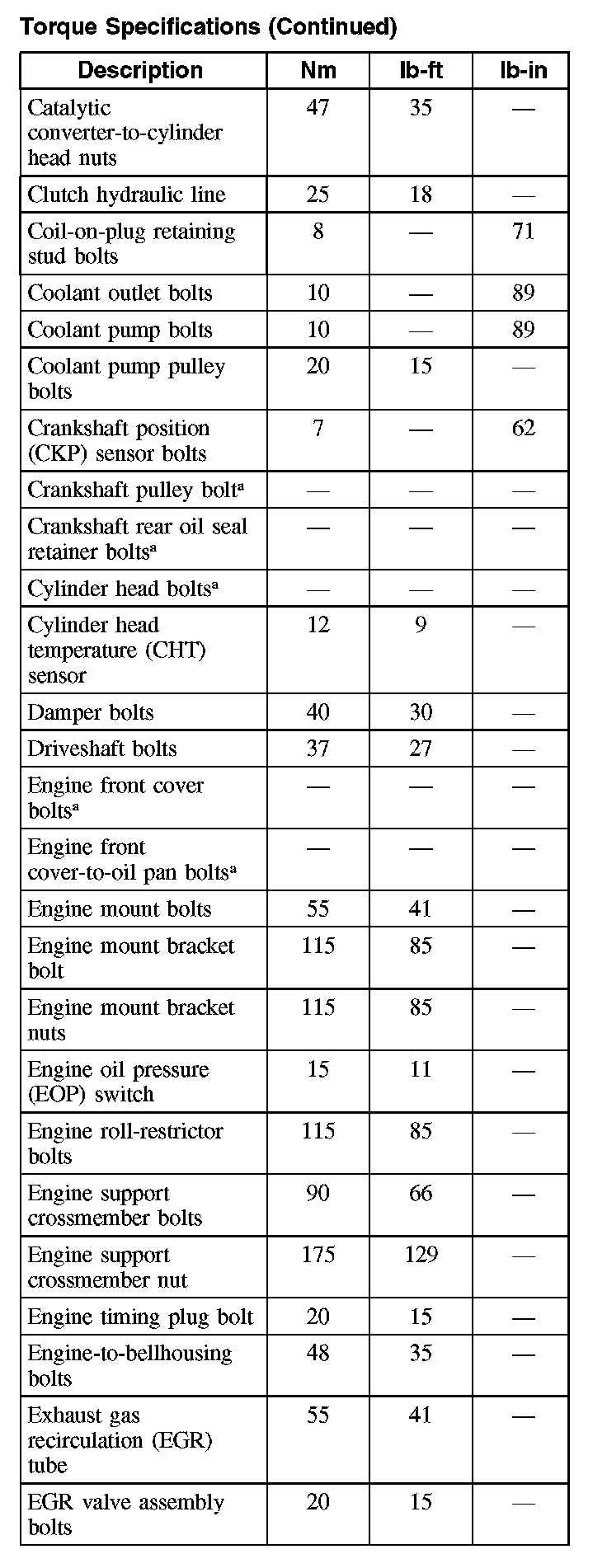

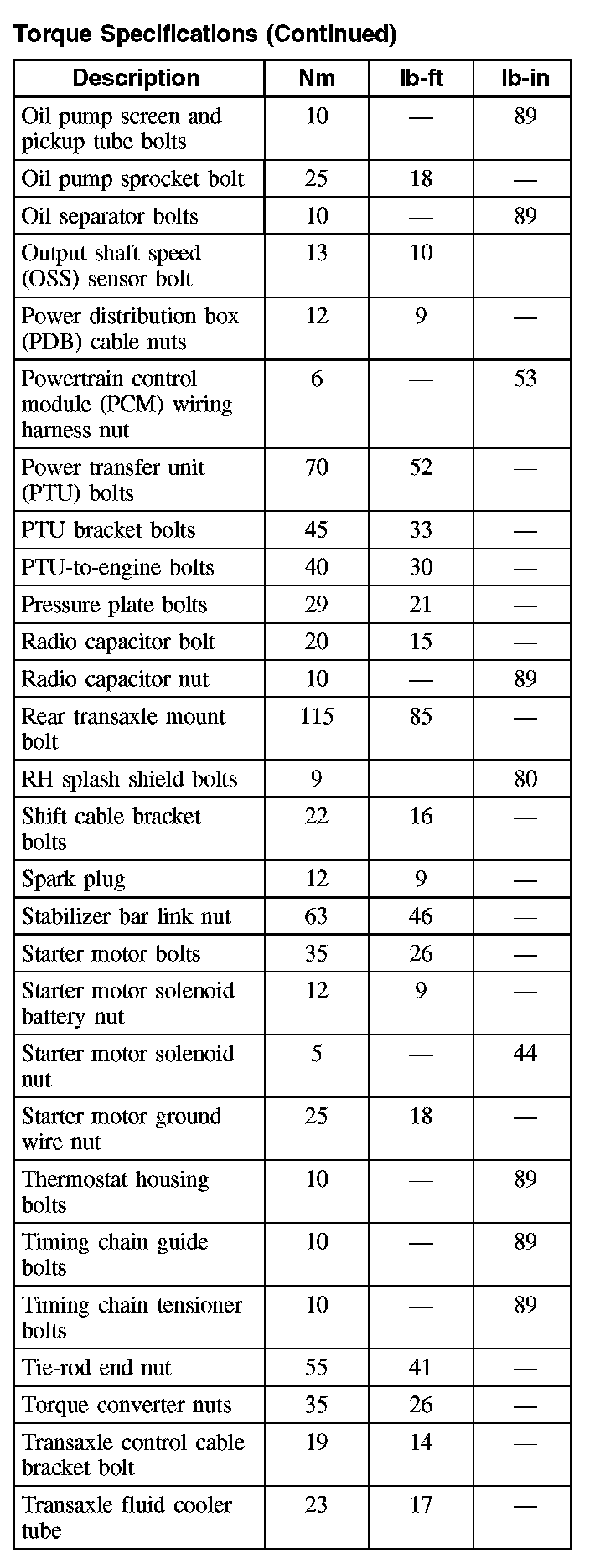

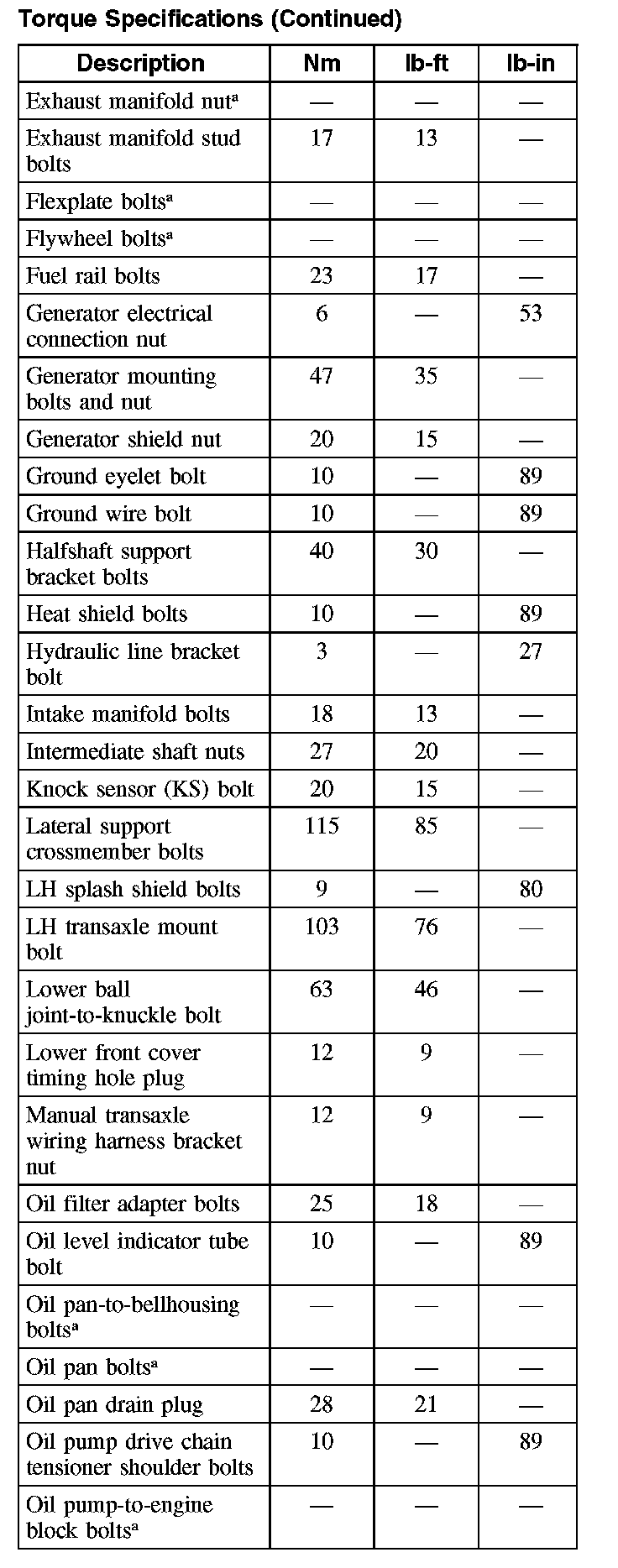

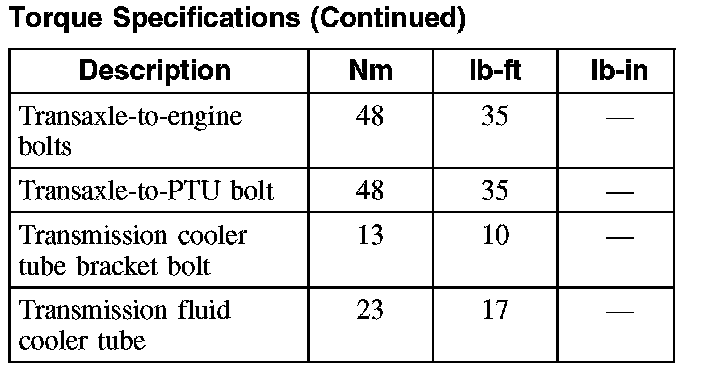

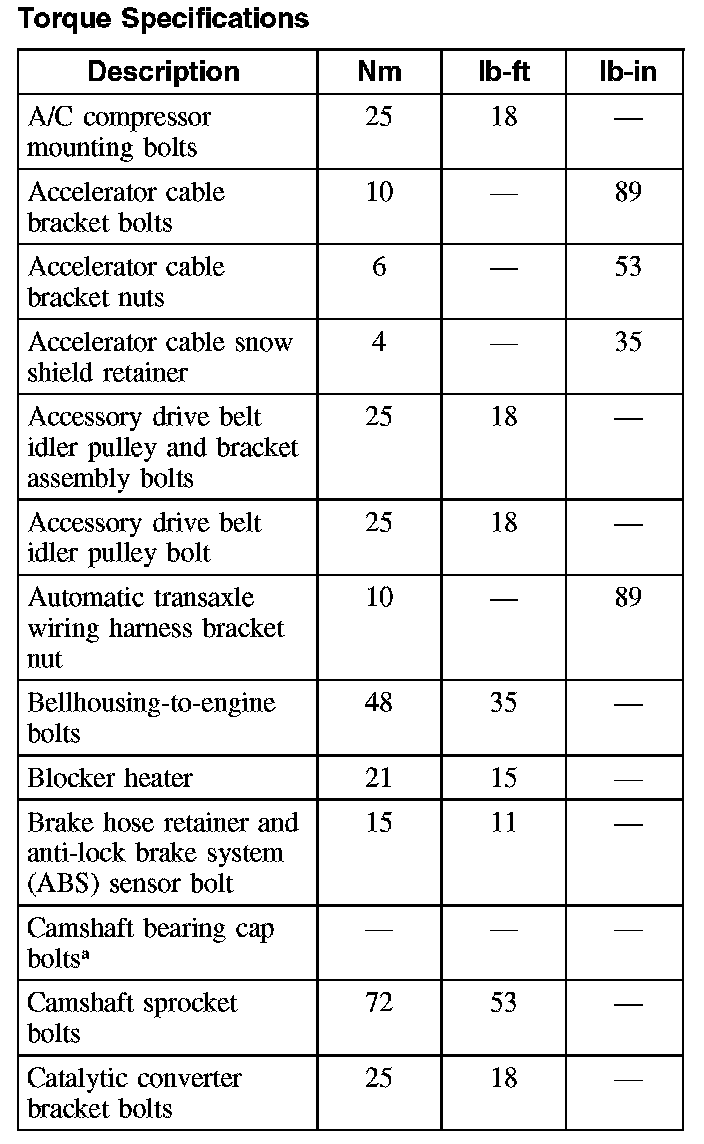

Torque SpecificationsTorque Specifications (Part 1):
Torque Specifications (Part 2):
Torque Specifications (Part 3):
Torque Specifications (Part 4):
Torque Specifications (Part 5):
Torque Specifications (Part 6):
Cylinder Head Bolts
The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.
