Ford
>>
2008
>>
Escape 2WD L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Oil Filter Adapter
Oil Filter Adapter
Engine Lubrication Components - Exploded View

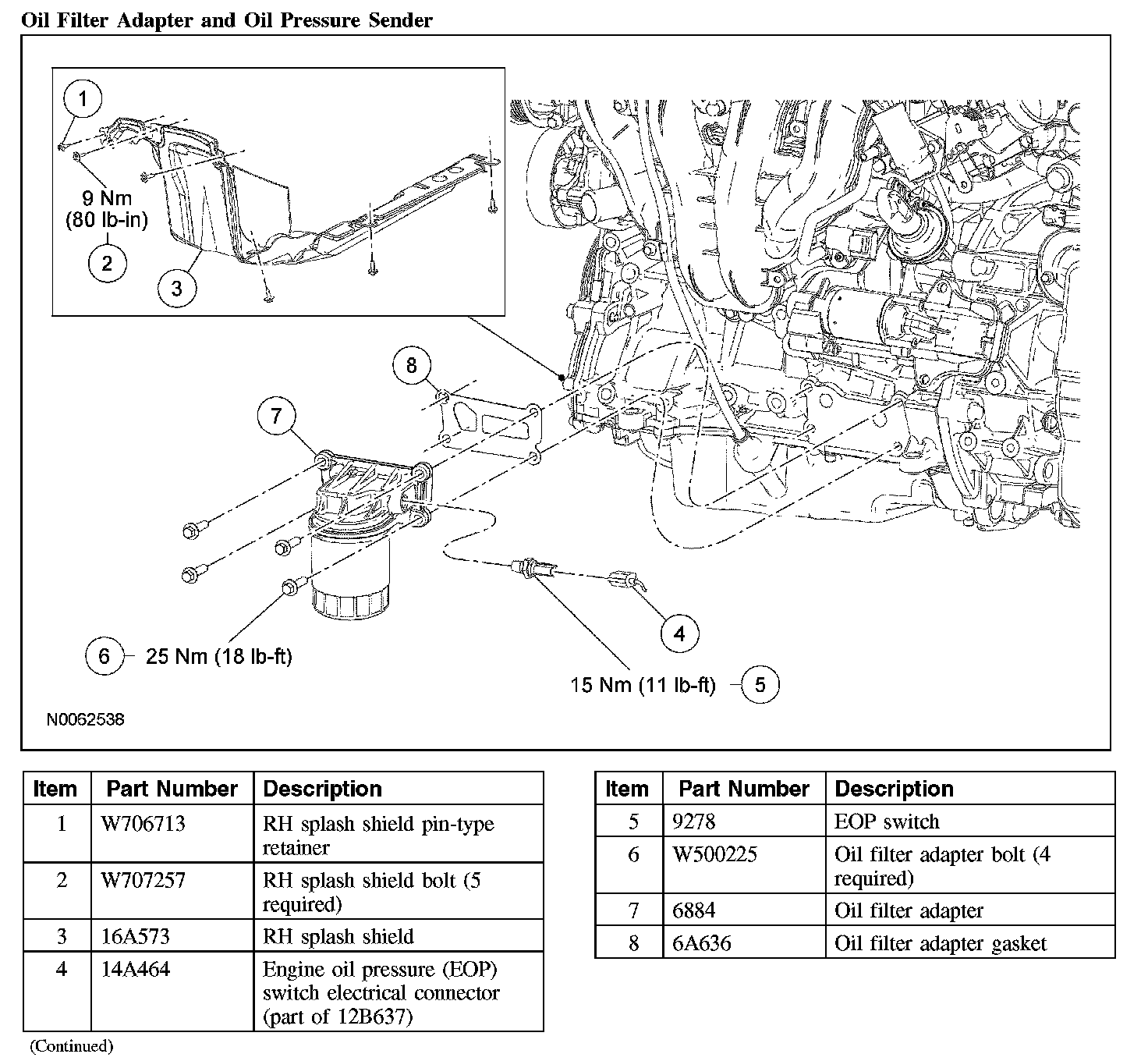

Oil Filter Adapter and Oil Pressure Sender:
