Ford
>>
2008
>>
Escape 2WD L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Flywheel
Flywheel
Lower End Components - Exploded View

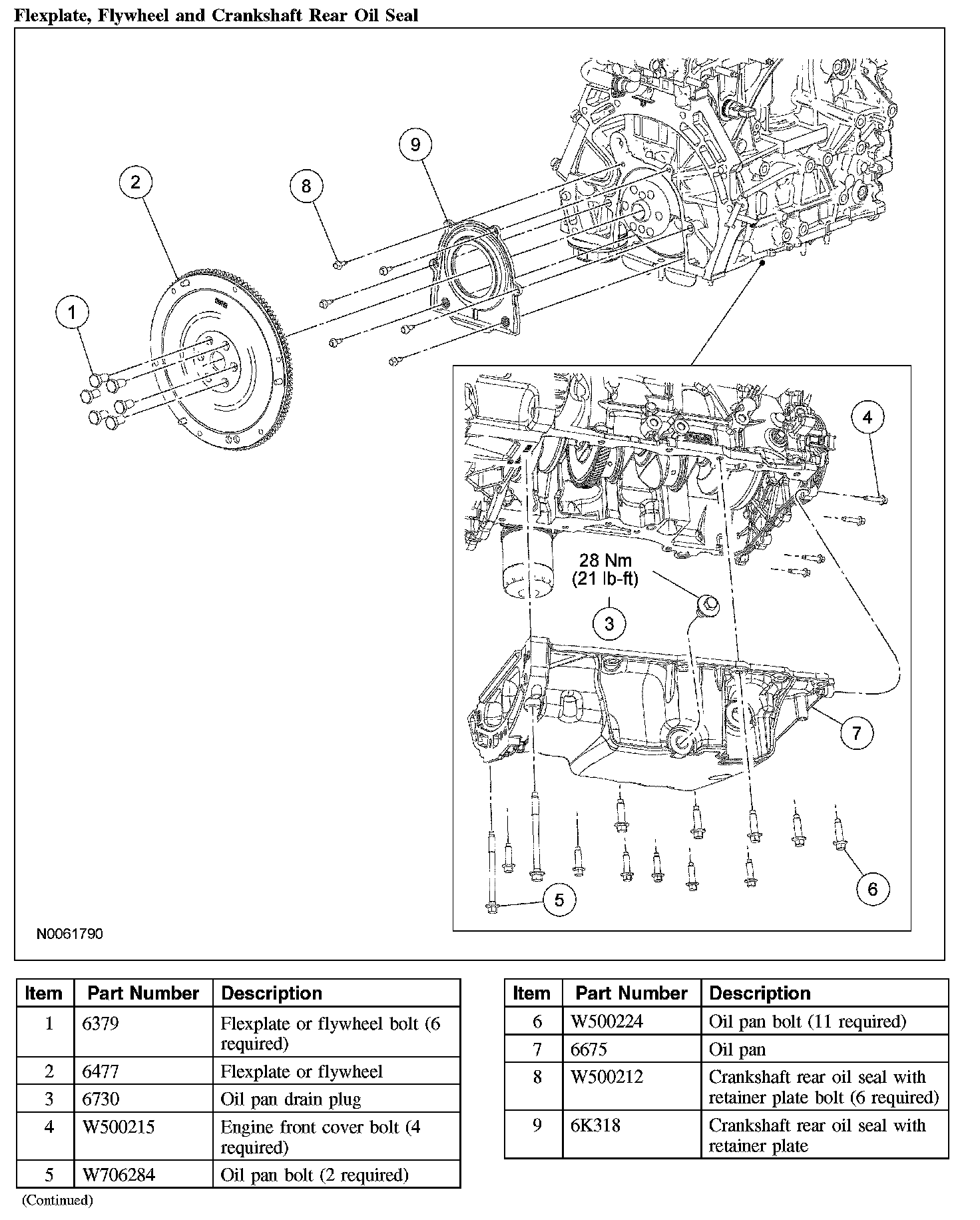

Flexplate, Flywheel and Crankshaft Rear Oil Seal:
