Ford
>>
2008
>>
Escape 2WD L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Cylinder Head Assembly
>>
Valve Spring
Valve Spring

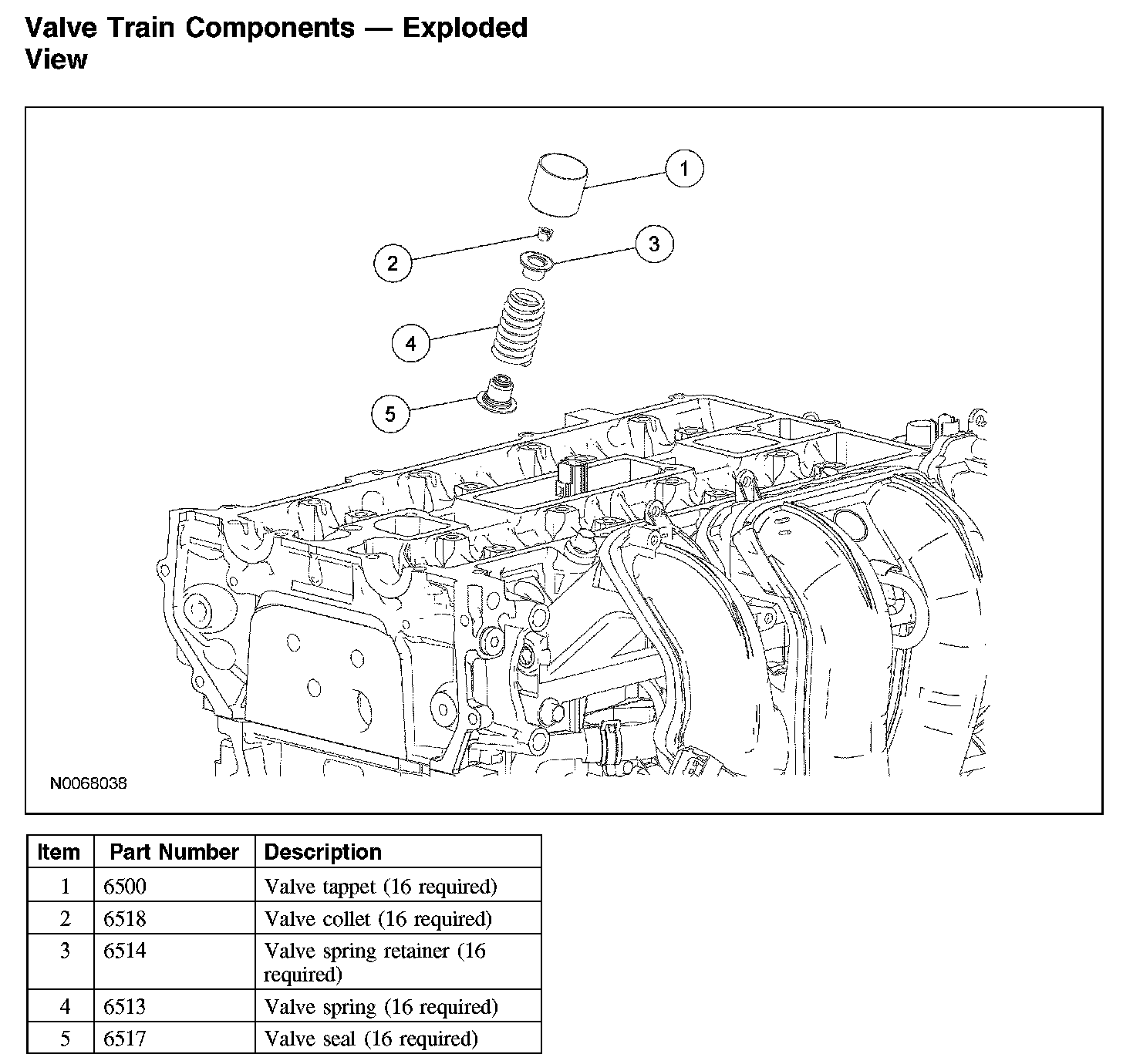

Valve Train Components - Exploded View
Valve Train Components - Exploded View:
