Idle/Throttle Speed Control Unit: Locations

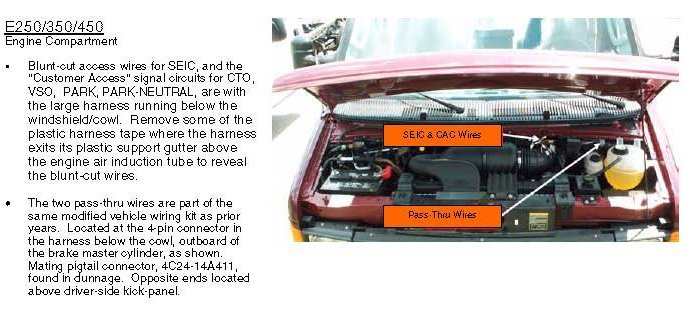

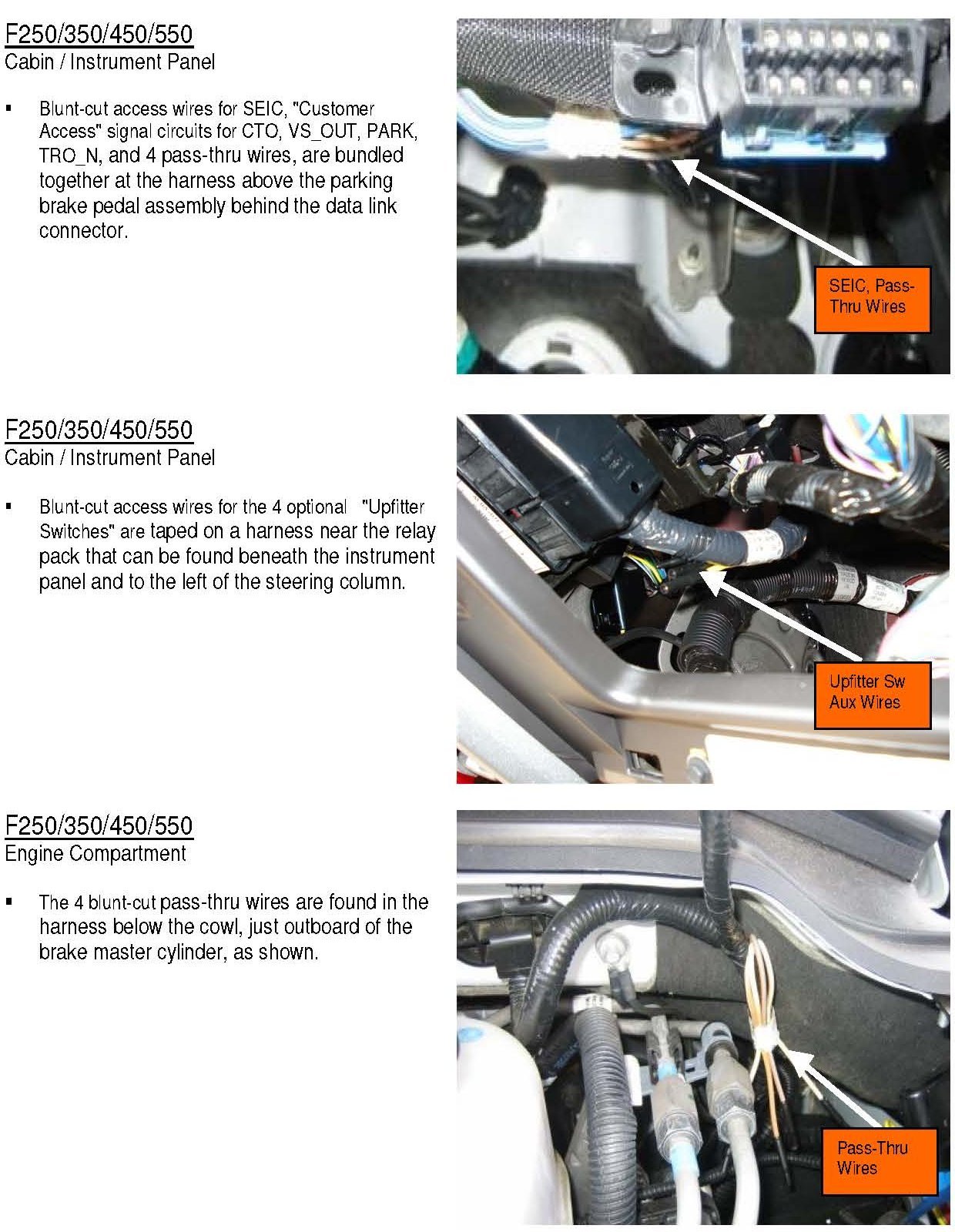

Wire Locations

SEIC circuits, Customer Access Signal Circuits, Pass-Thru Wires.
