Engine Lubrication
Engine Lubrication
Engine Lubrication
Components Exploded View

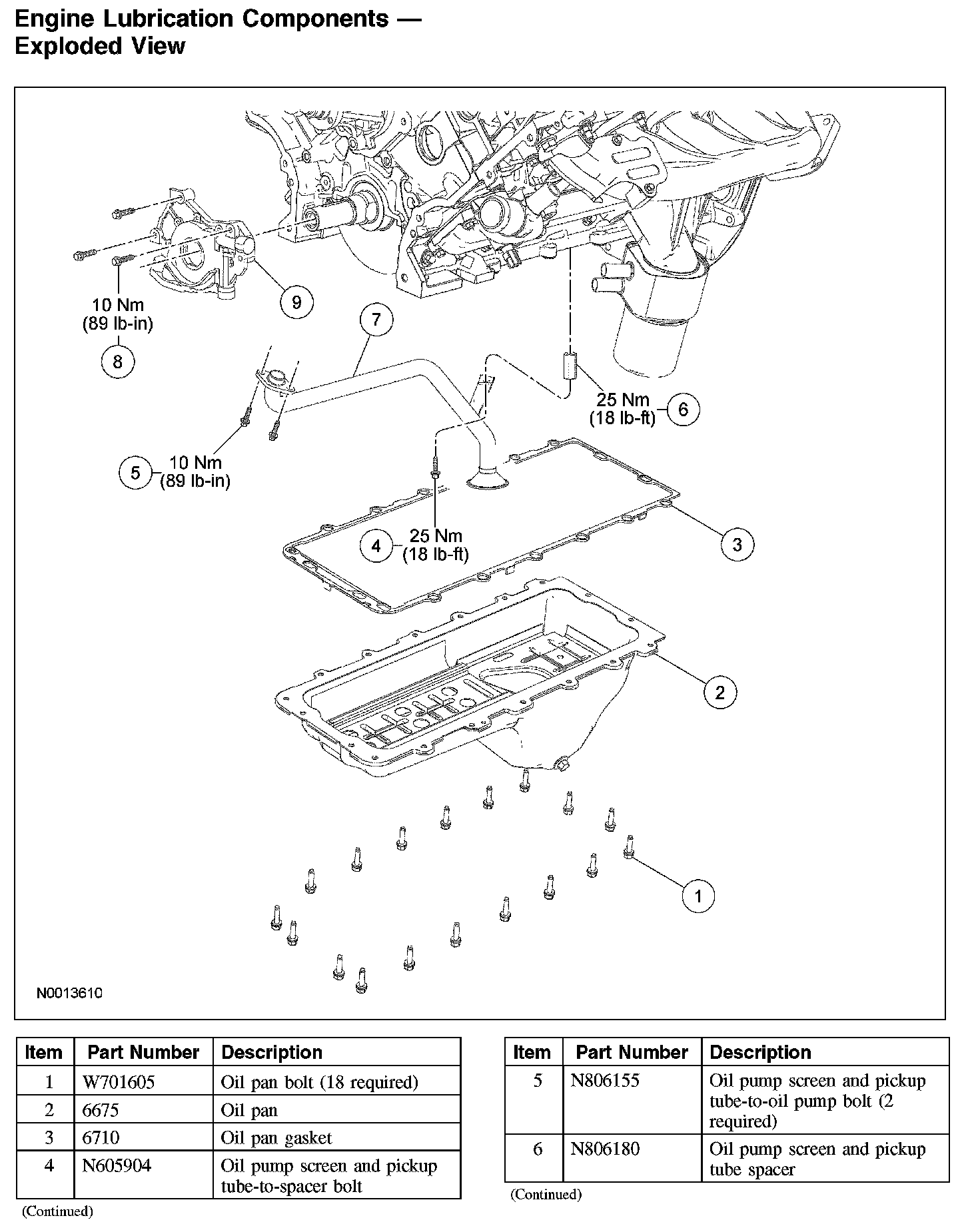

Engine Lubrication Components - Exploded View (Part 1):
Engine Lubrication Components - Exploded View (Part 2):
