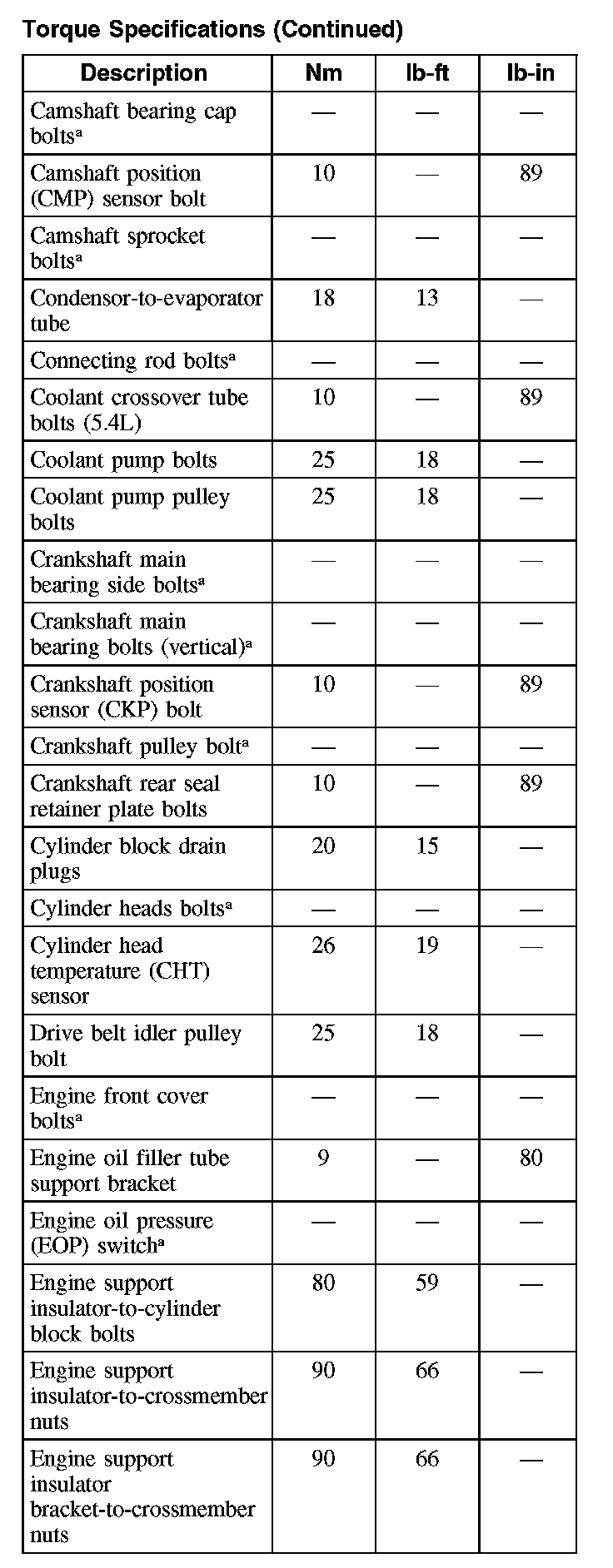

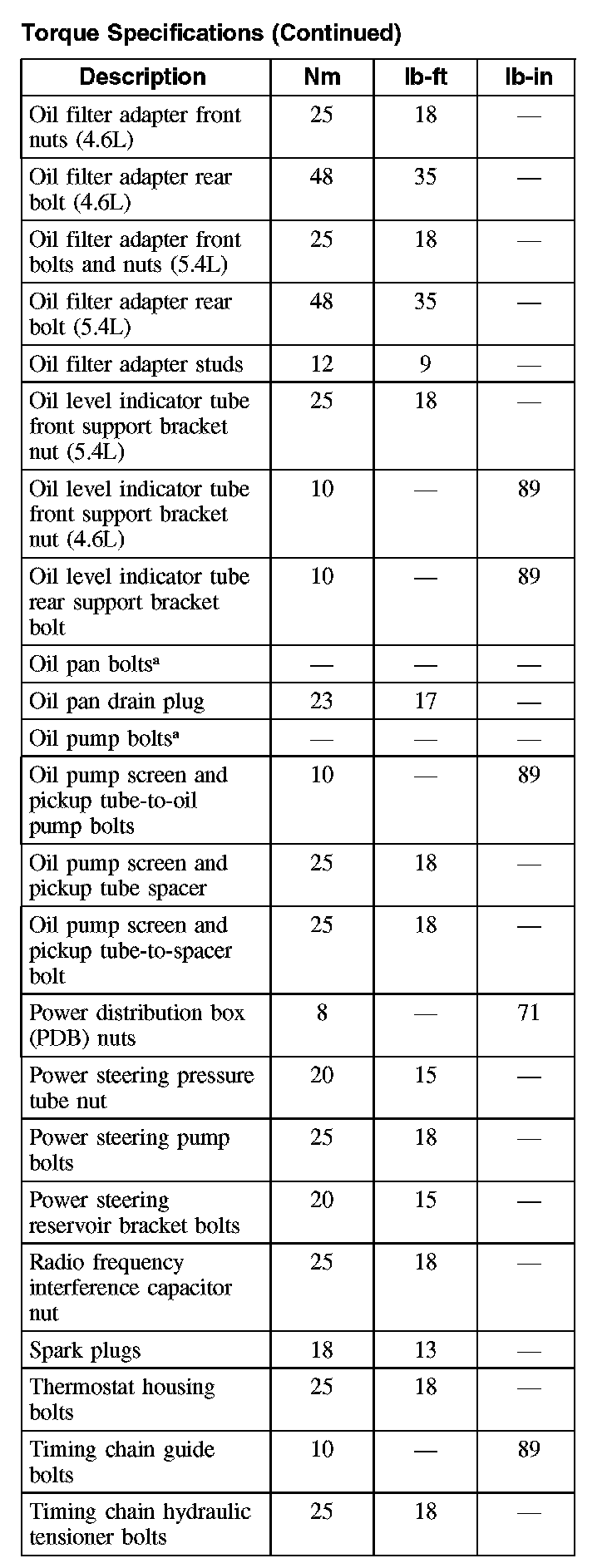

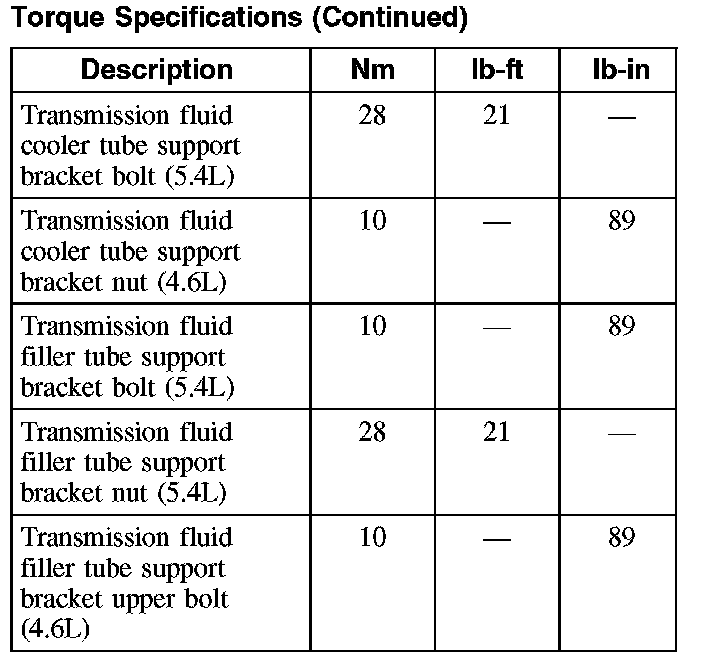

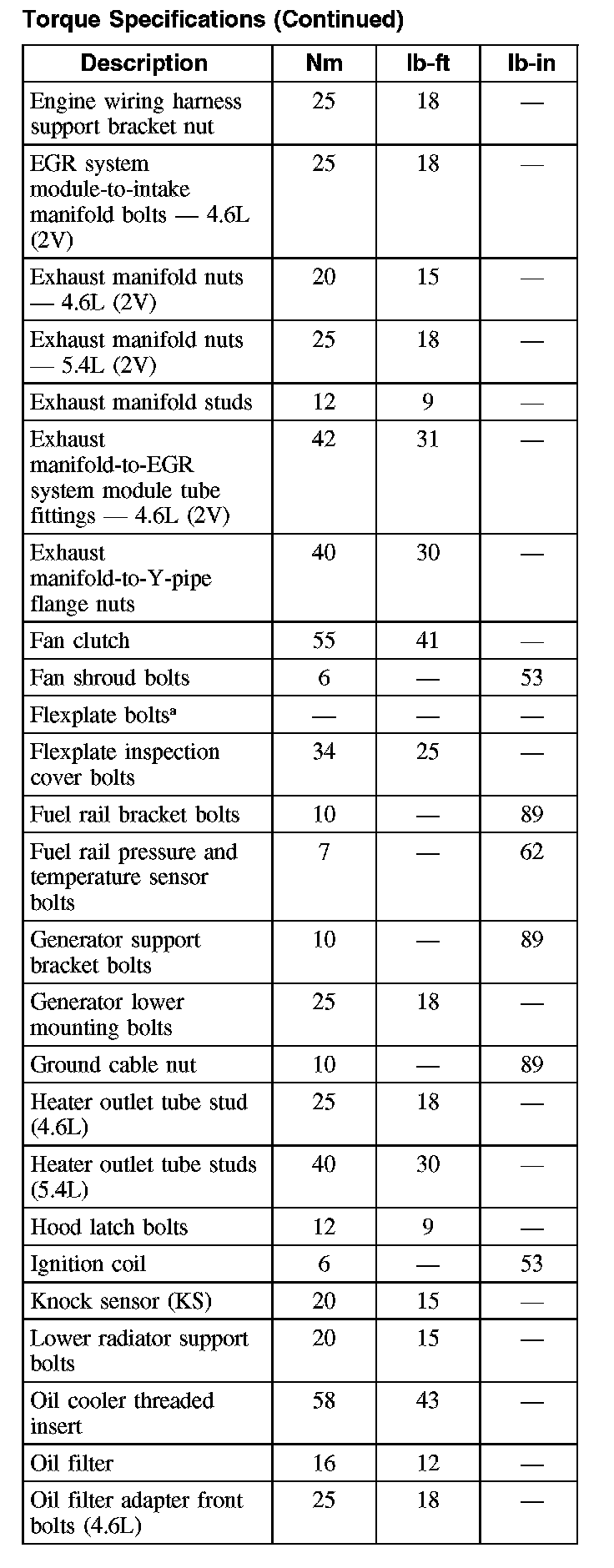

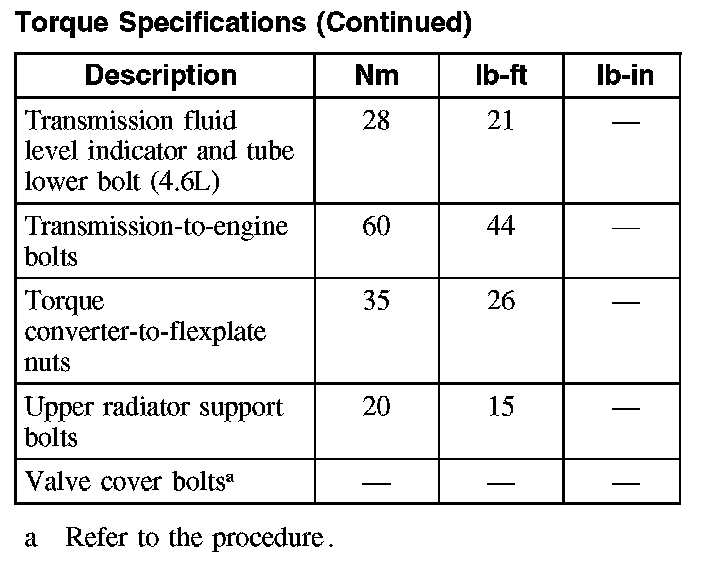

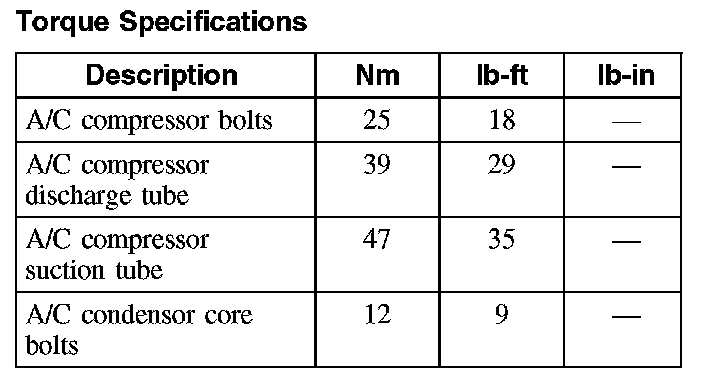

Torque Specifications

Torque Specifications




















Cylinder Head Bolts
The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused. Failure to follow these instructions may result in engine damage.

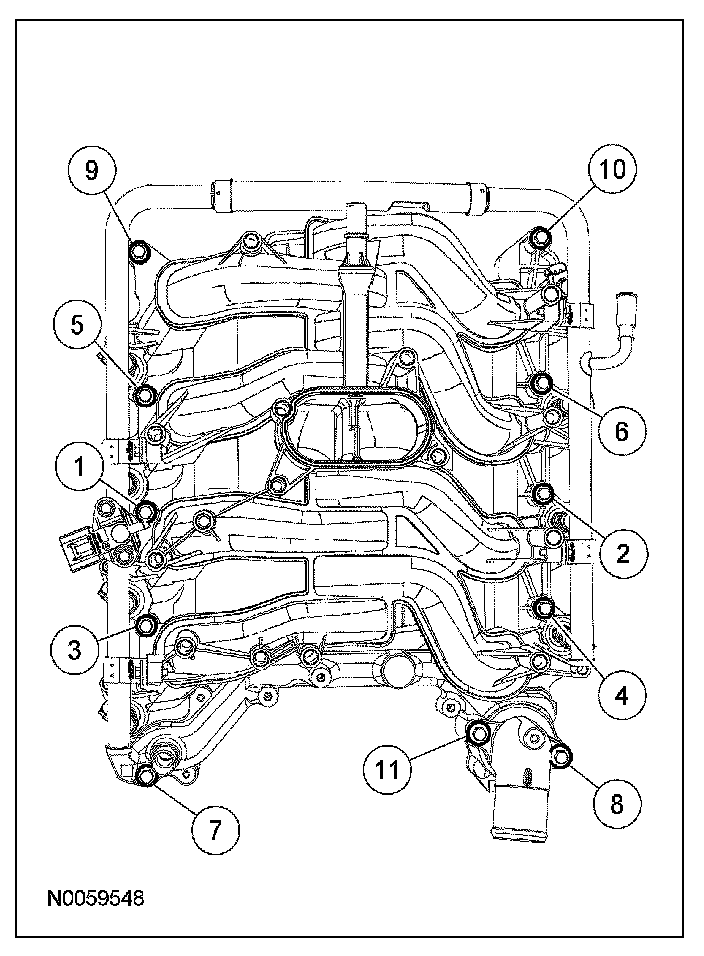

Intake Manifold Bolts
Stage 1 2 Nm (18 lb-in).
Stage 2 25 Nm (18 lb-ft).
