Radiator

Radiator and Cooling Fan - Exploded View, Gasoline Engines

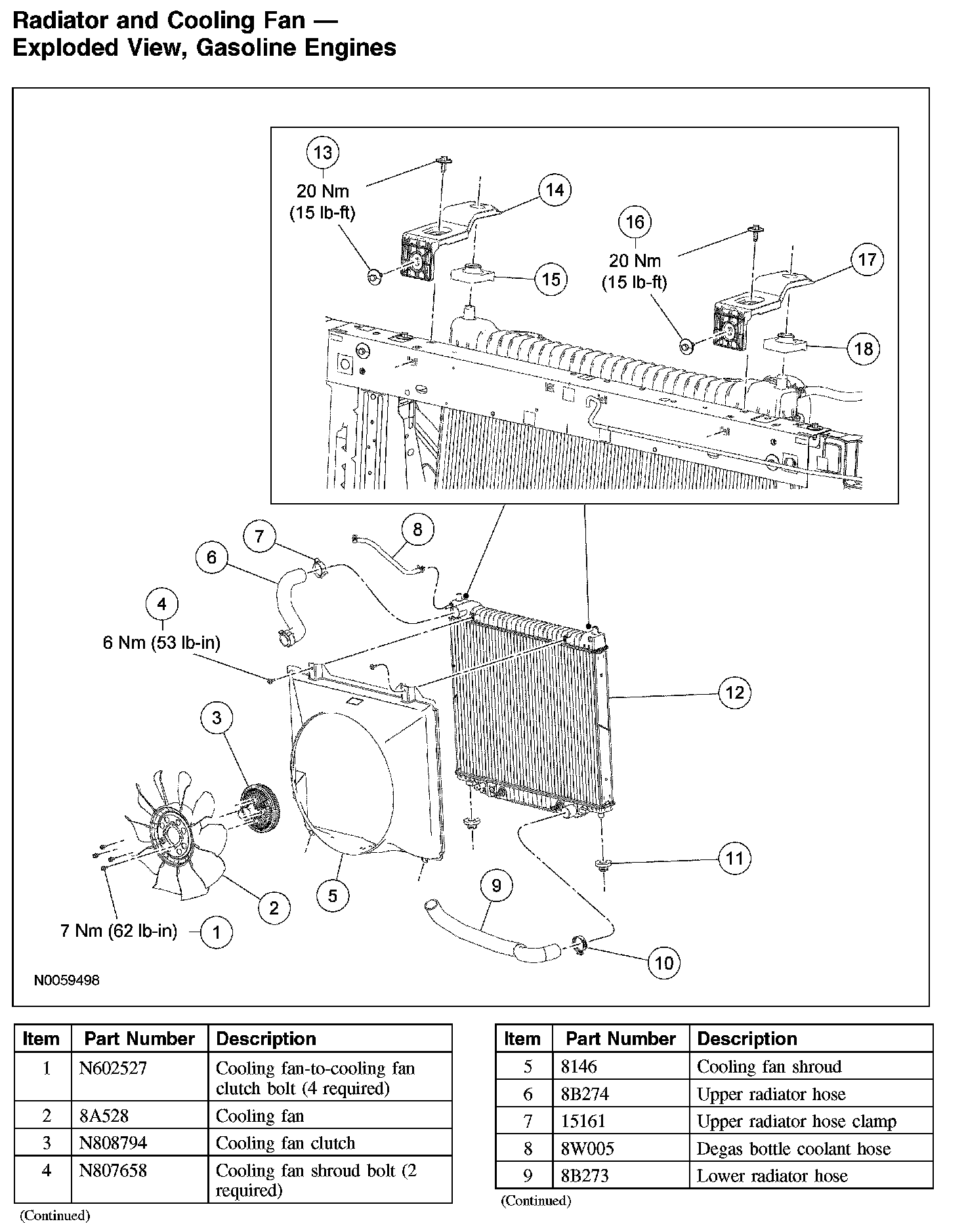

Radiator and Cooling Fan - Exploded View, Gasoline Engines (Part 1):

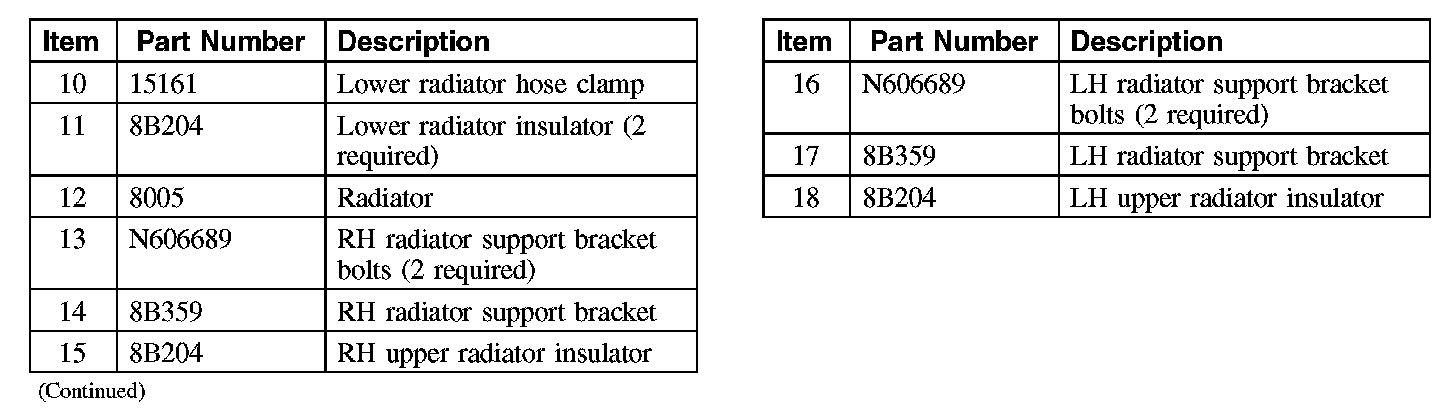

Radiator and Cooling Fan - Exploded View, Gasoline Engines (Part 2):
