Flex Plate

Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View

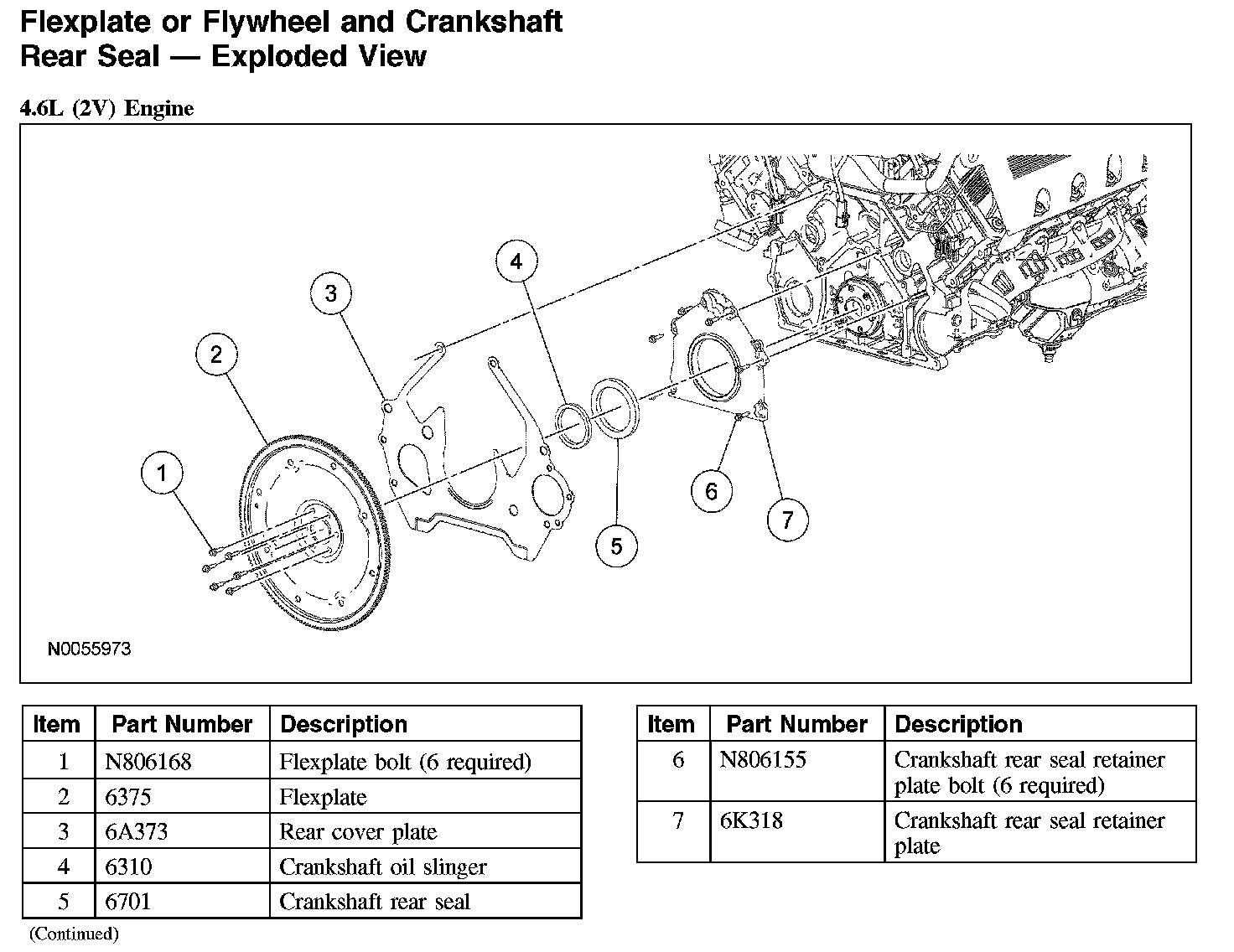

Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View, 4.6L (2V) Engine:

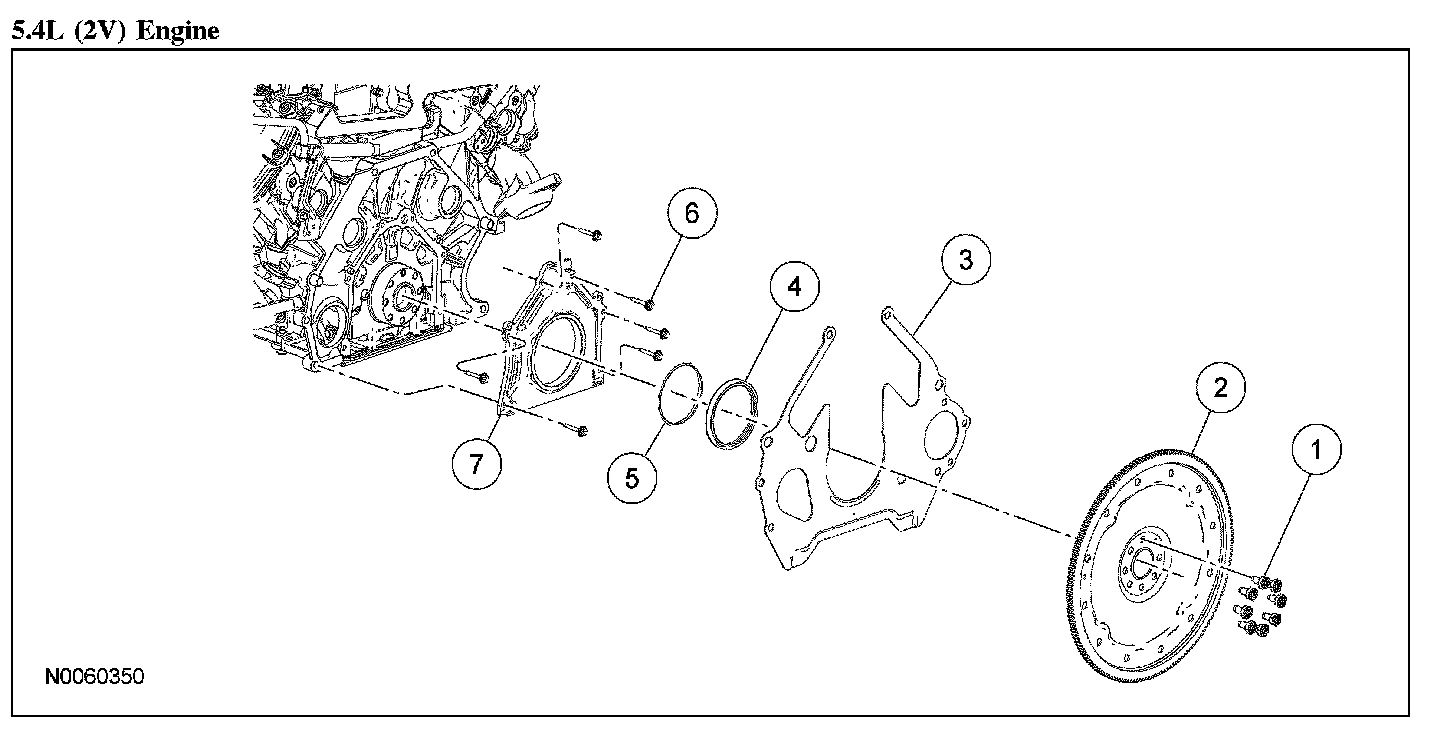

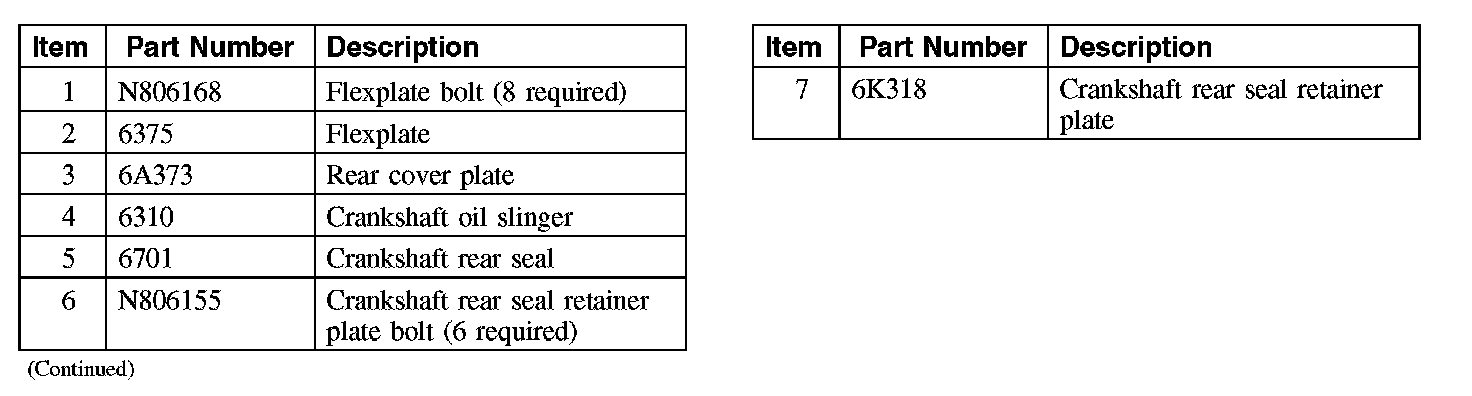

Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View, 5.4L (2V) Engine (Part 1):




Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View, 5.4L (2V) Engine (Part 2):
