Home
>>
Ford
>>
2008
>>
E 150 V8-5.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Injector Driver Module
Injector Driver Module

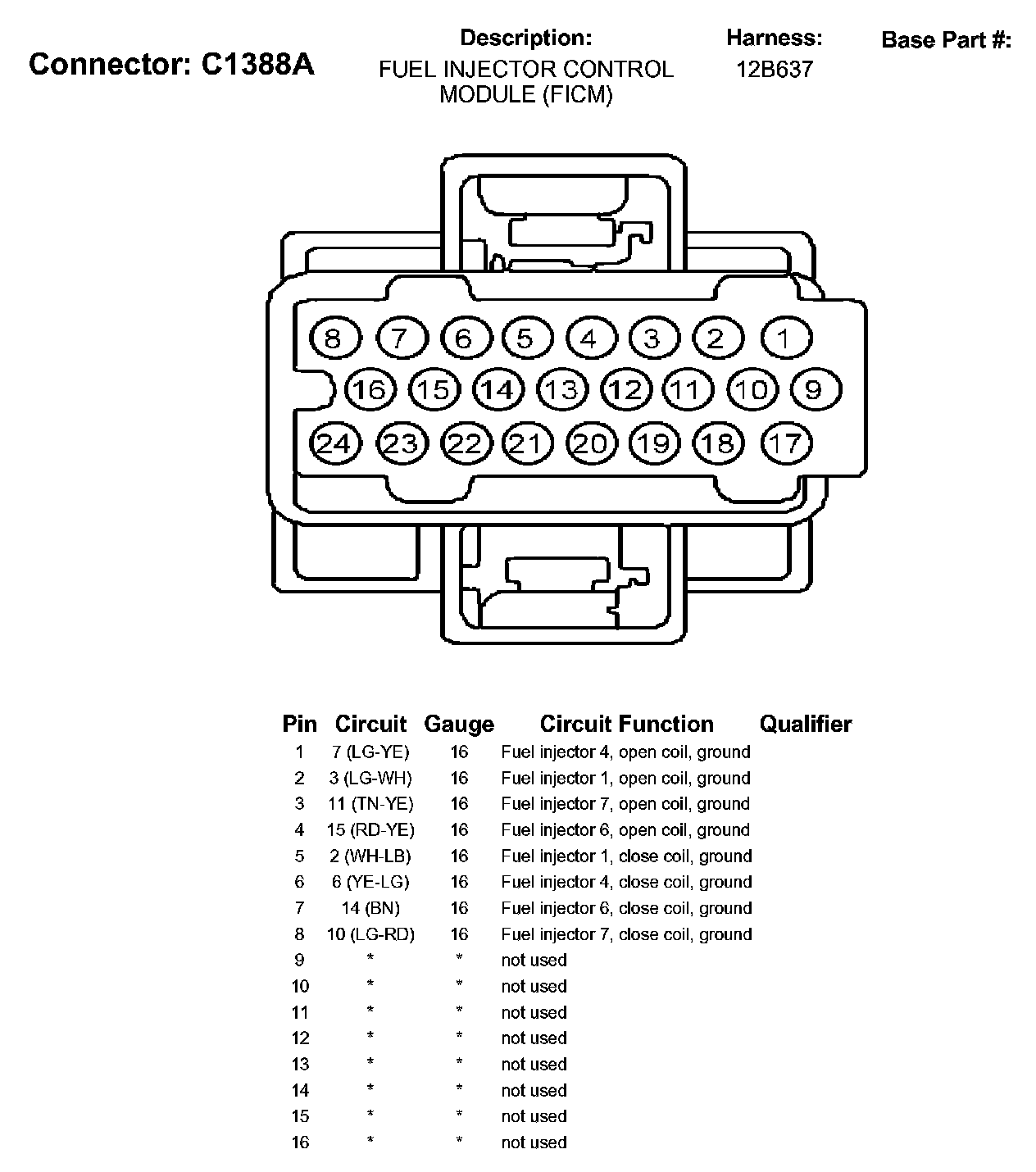

C1388A (Part 1):

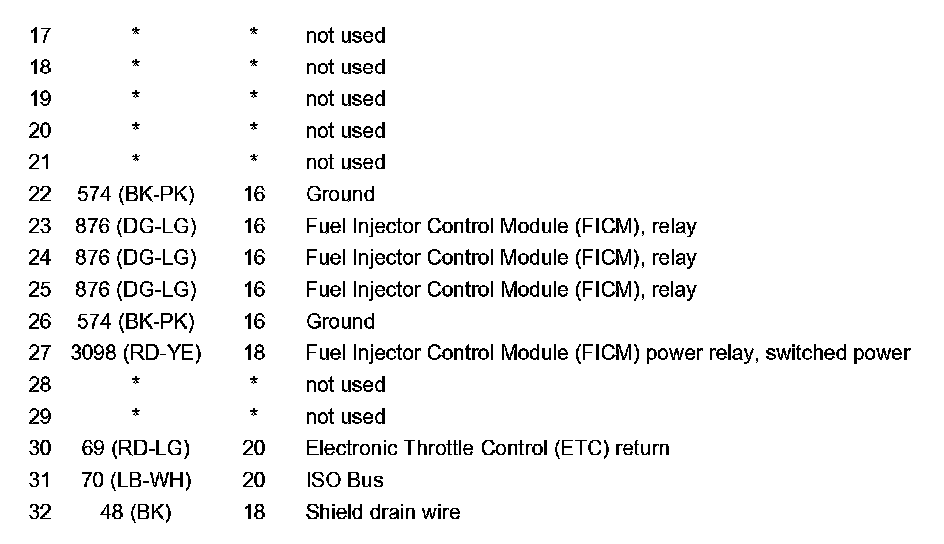

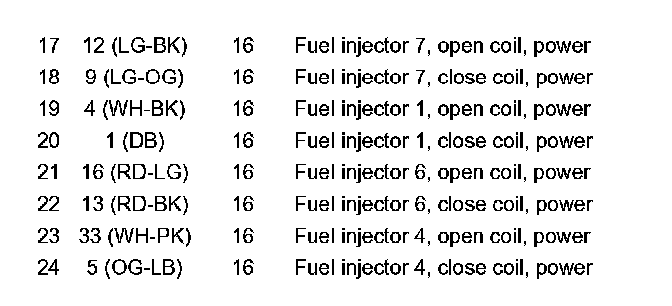

C1388A (Part 2):

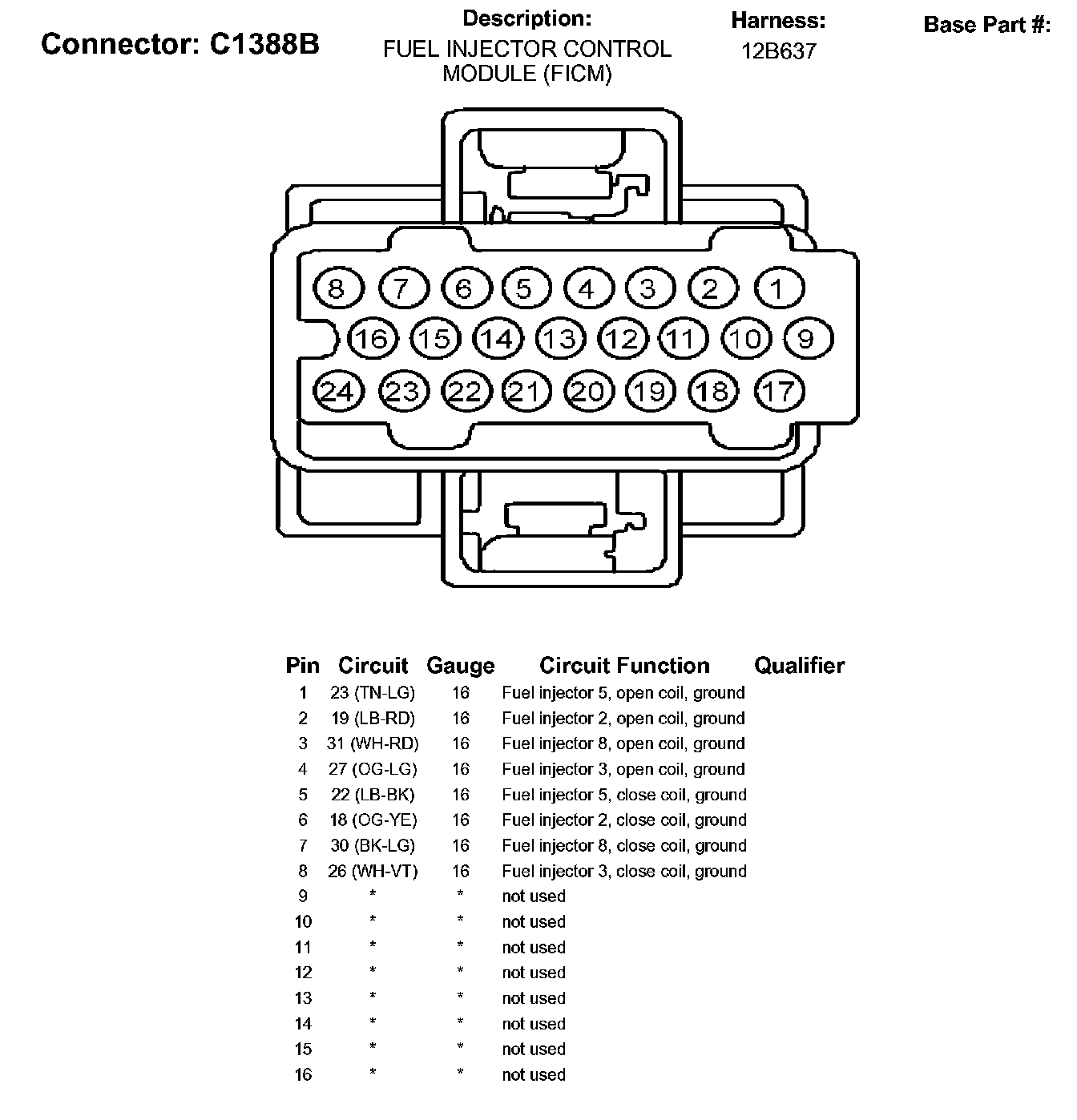

C1388B (Part 1):

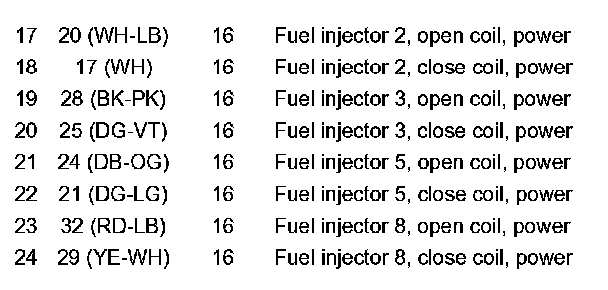

C1388B (Part 2):

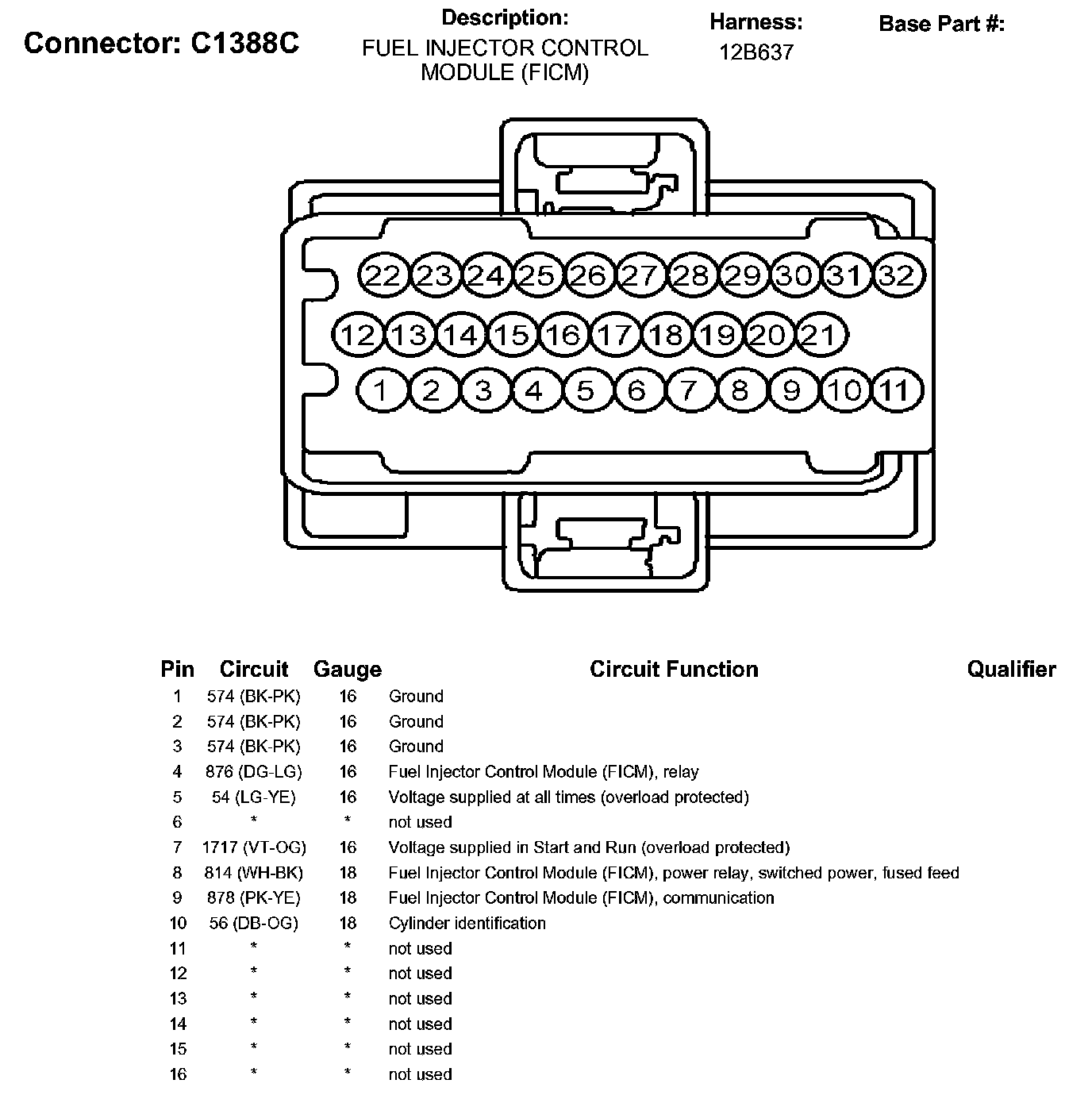

C1388C (Part 1):
C1388C (Part 2):
