Electronic Brake Control Module
>>
Anti-Lock Brake System (ABS) Module
Anti-Lock Brake System (ABS) Module

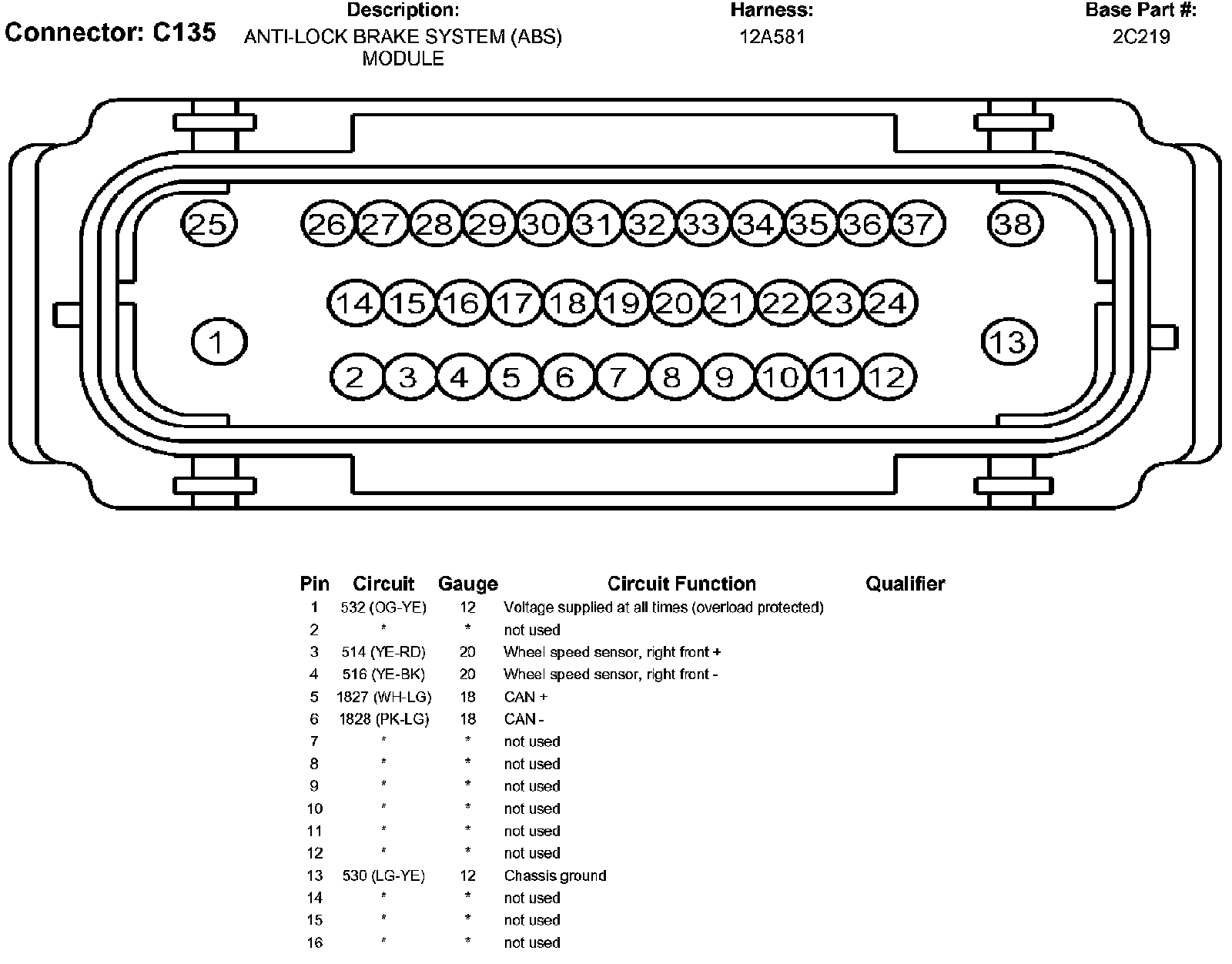

C135 (Part 1):

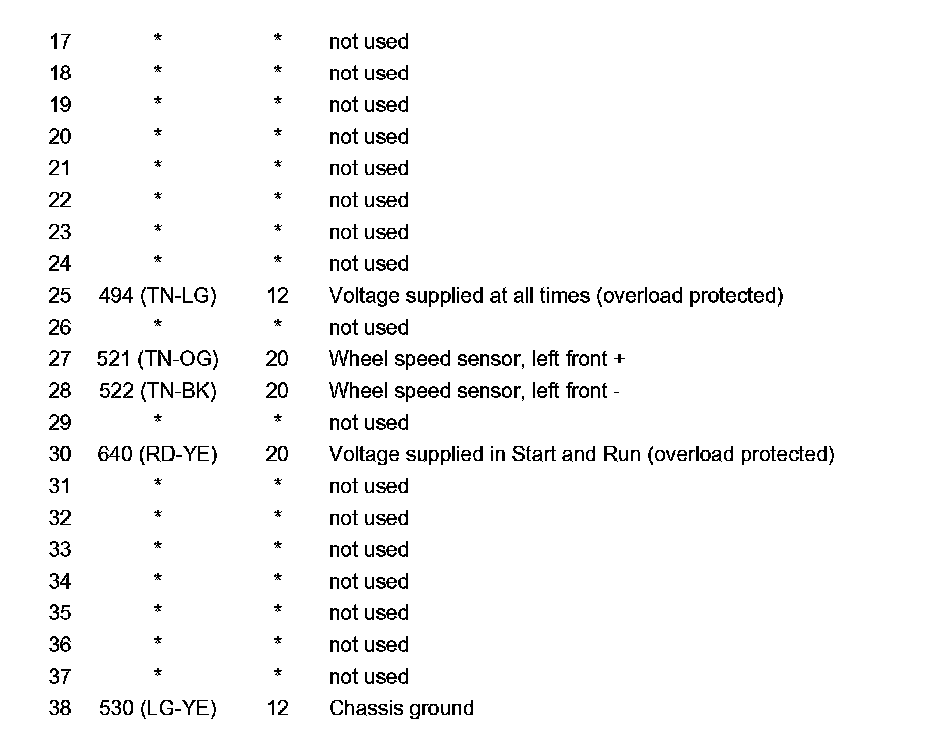

C135 (Part 2):
