Function Selector Switch

FUNCTION SELECTOR SWITCH

Removal and Installation
1. Remove the climate control assembly.
2. Pull and remove the function selector switch knob.
3. Remove the function selector switch.

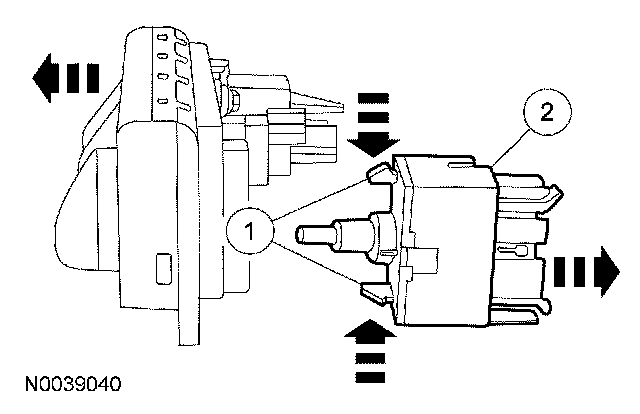

1 Release the tabs.
2 Remove the function selector switch.







4. To install, reverse the removal procedure.
