Crown Victoria V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Oil Pump, Engine
Oil Pump, Engine
Engine Lubrication

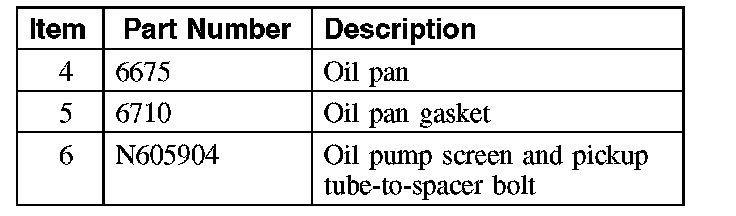

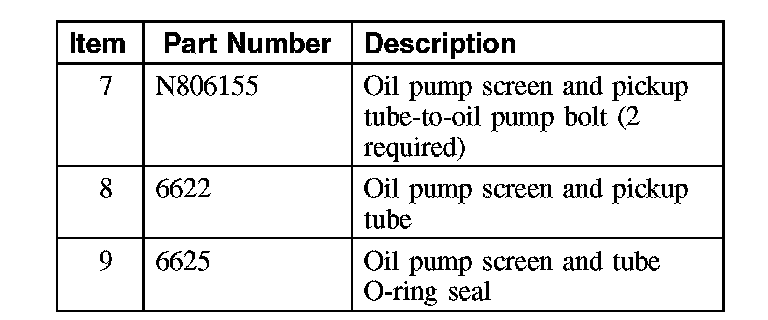

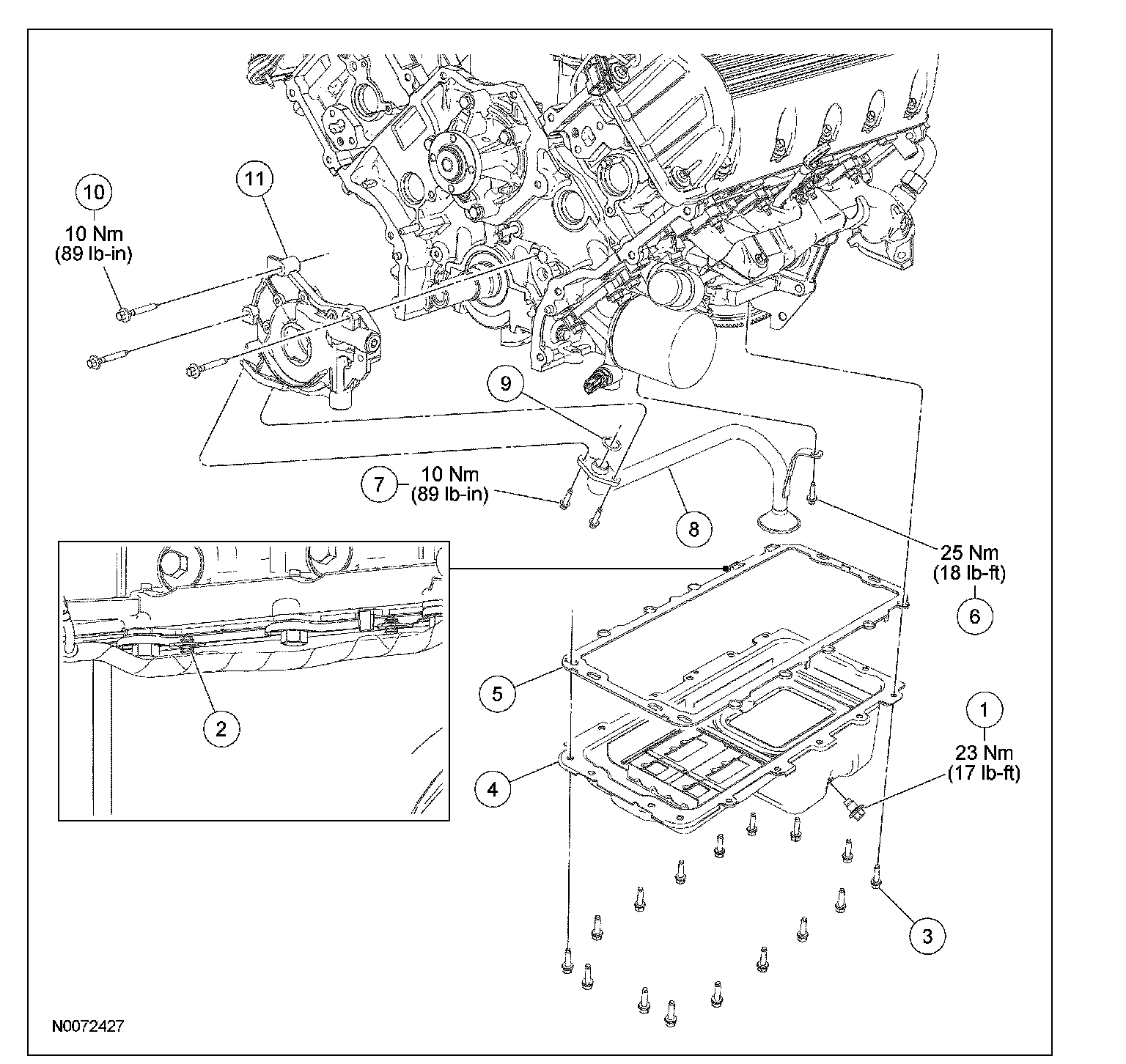

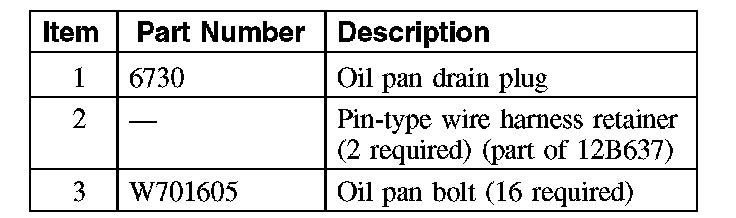

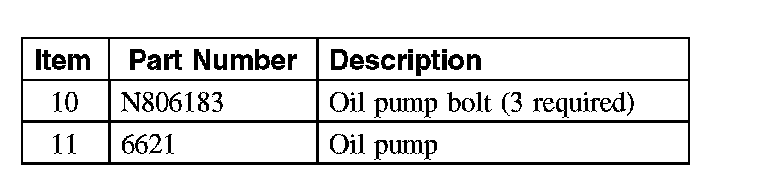

Components - Exploded View,
Oil Pan
, Oil Pump, Oil Pump Screen and Pickup Tube
