Seat Temperature Control Module
>>
Heated Seat Module, Driver Side Front
Heated Seat Module, Driver Side Front

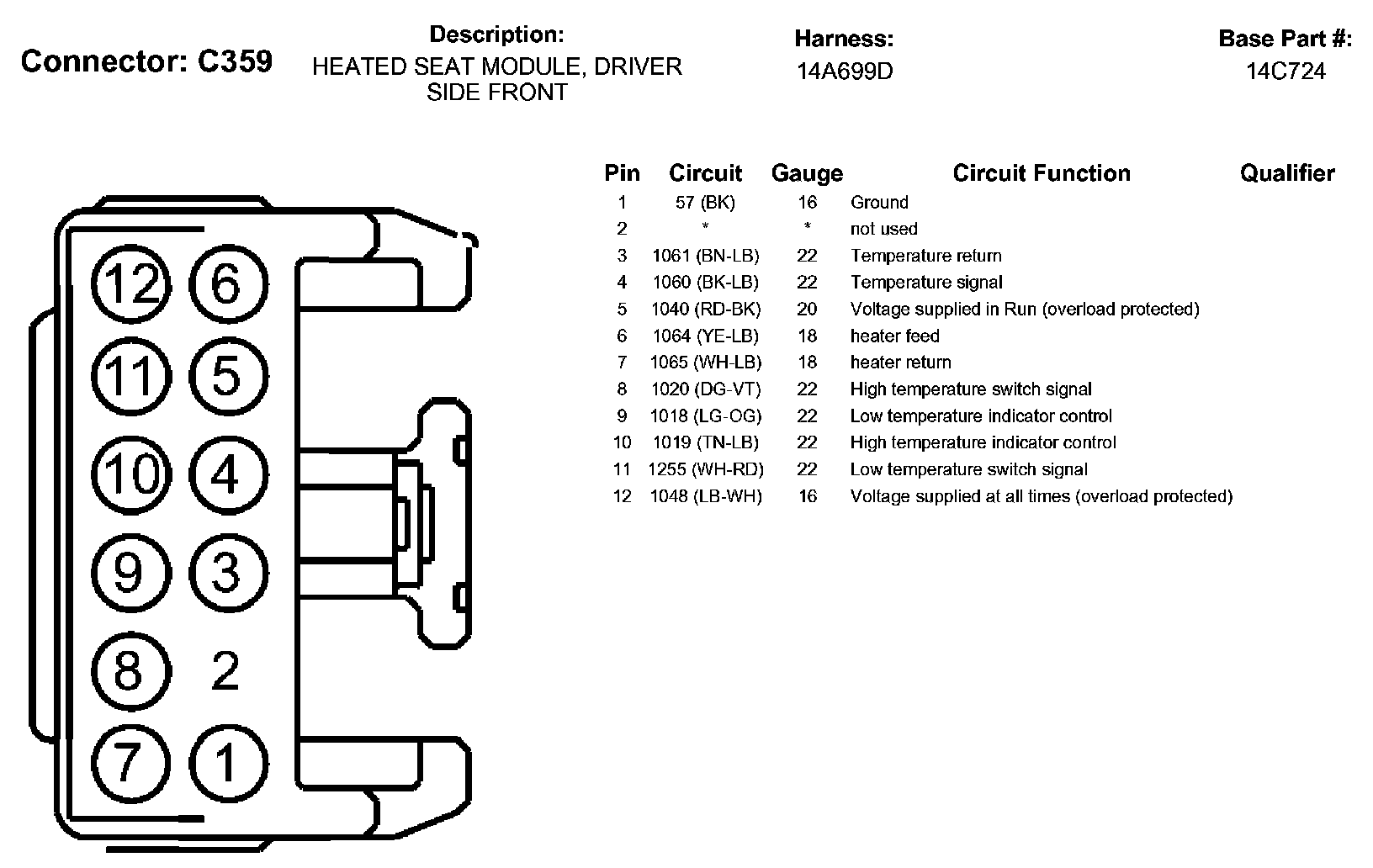

C359:
