Home >> Ford >> 2008 >> Crown Victoria V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Lighting Control Module (LCM)

Lighting Control Module (LCM)

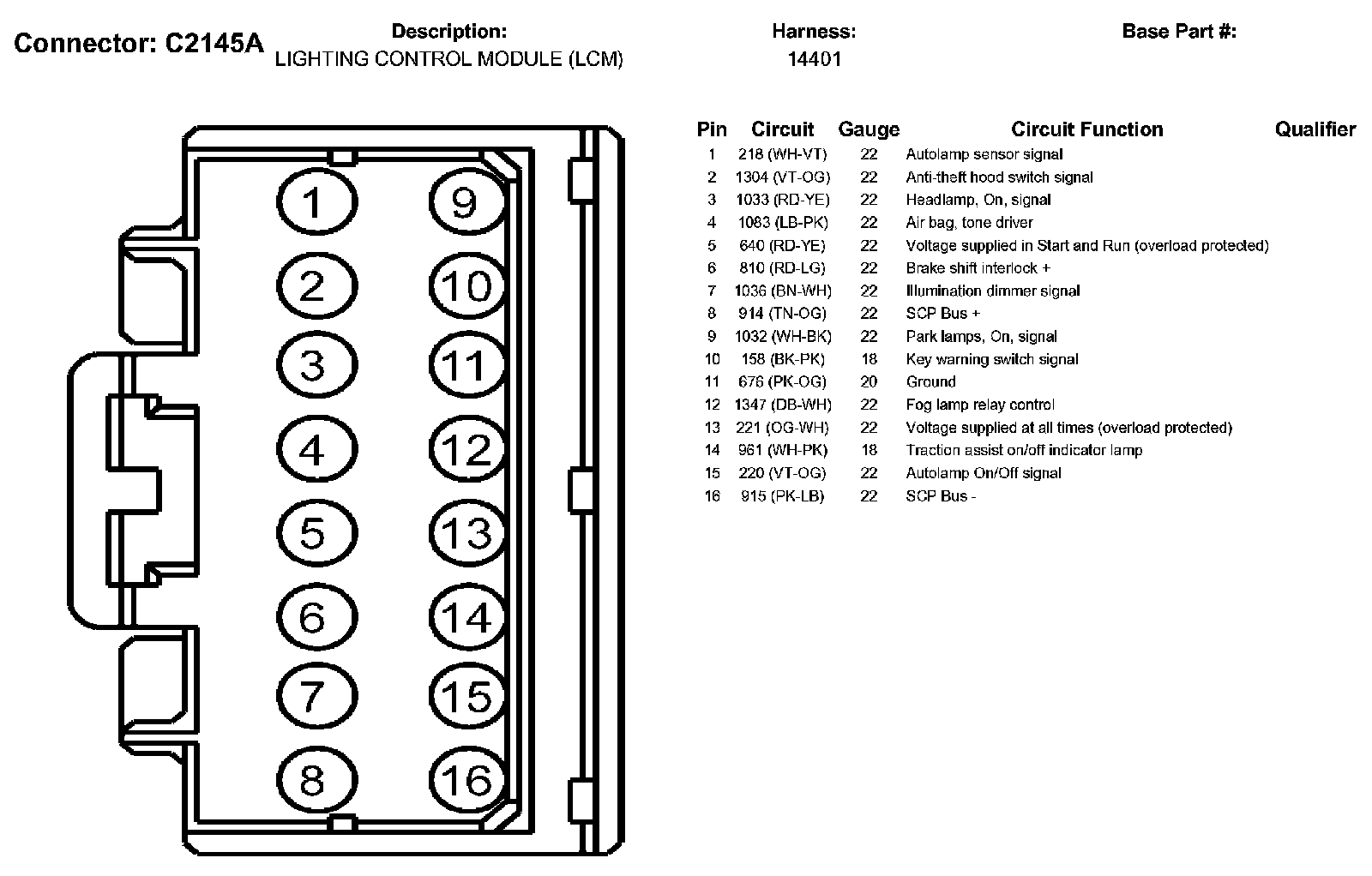

C2145A:

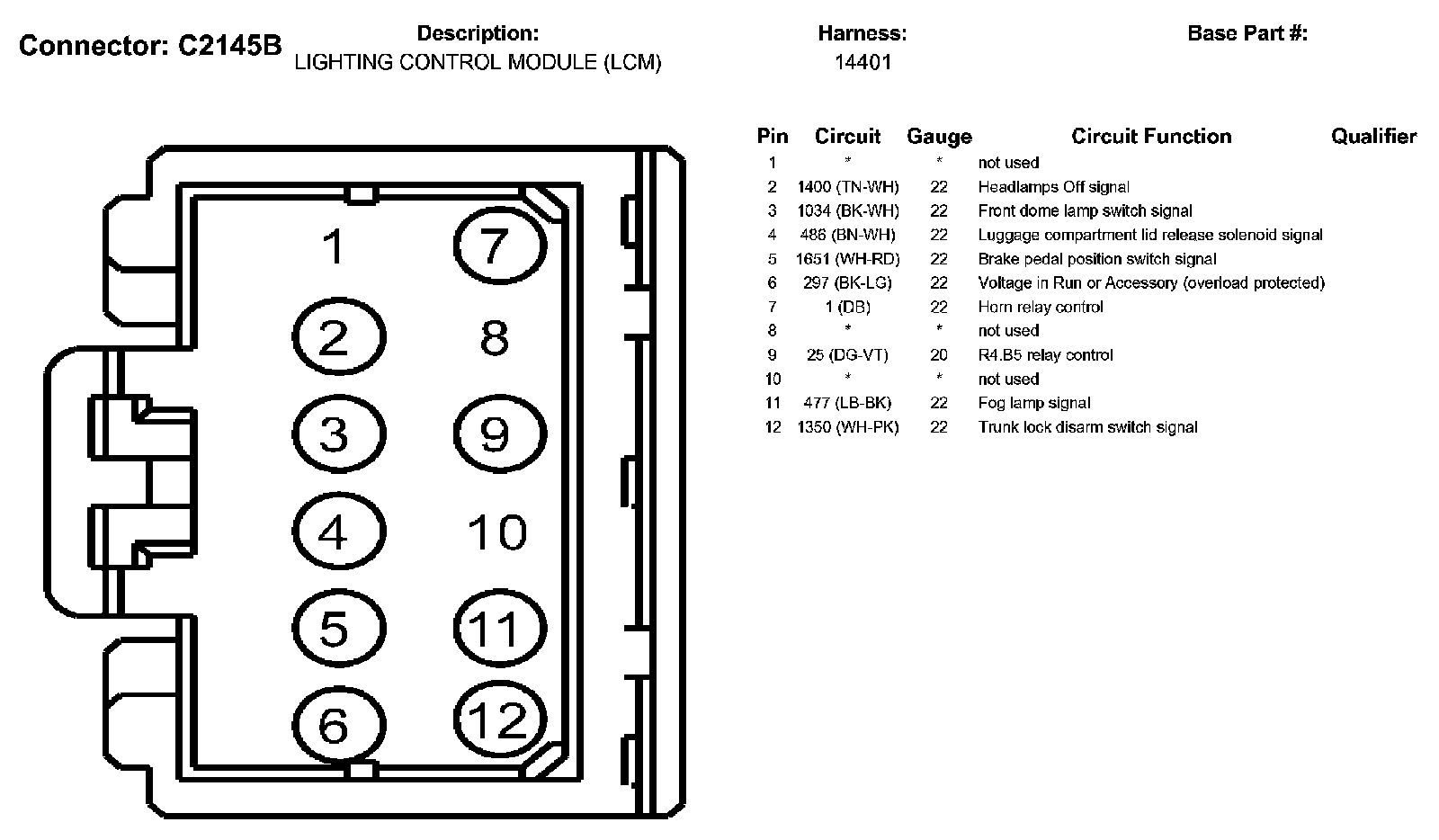

C2145B:

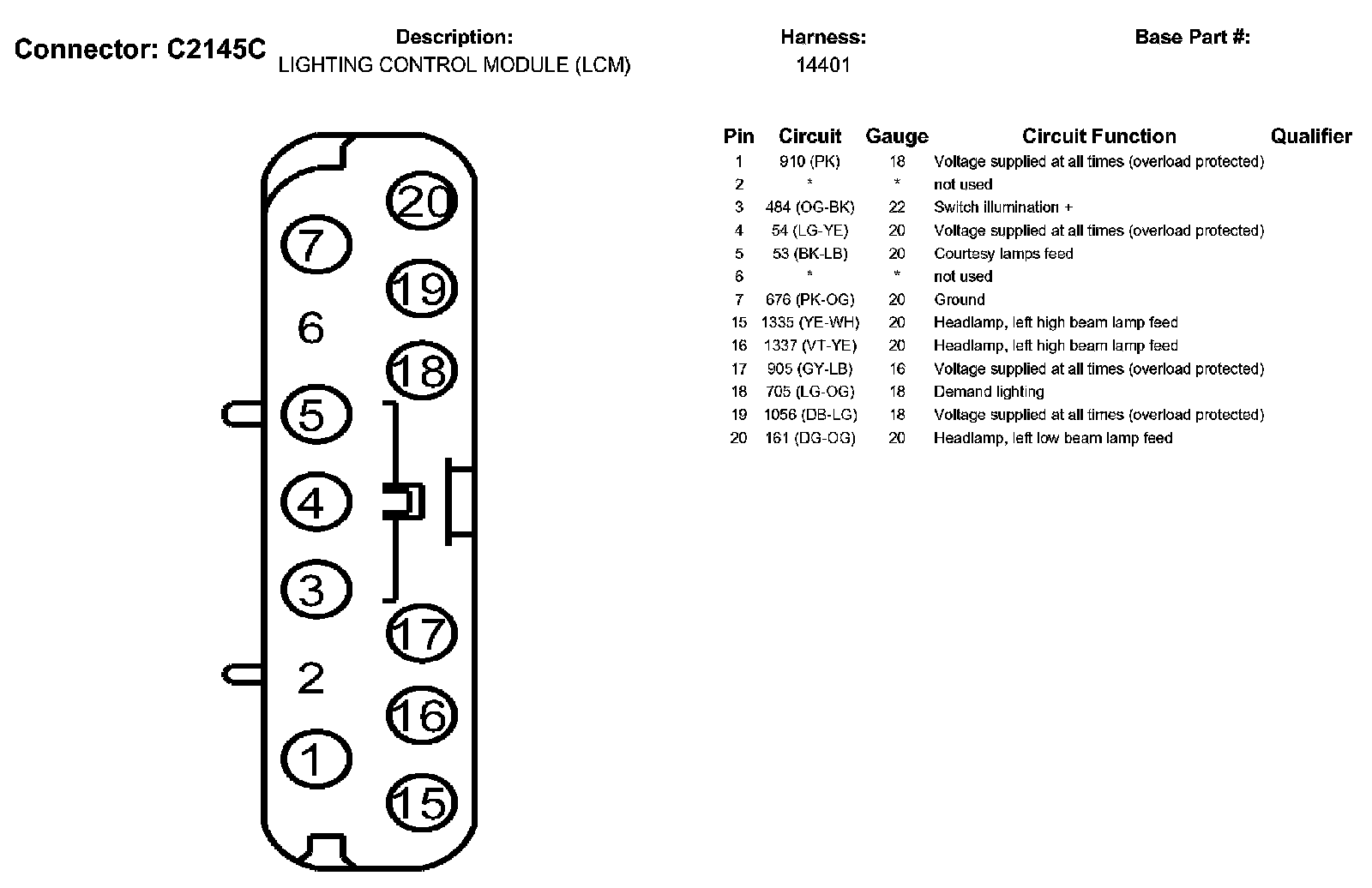

C2145C:

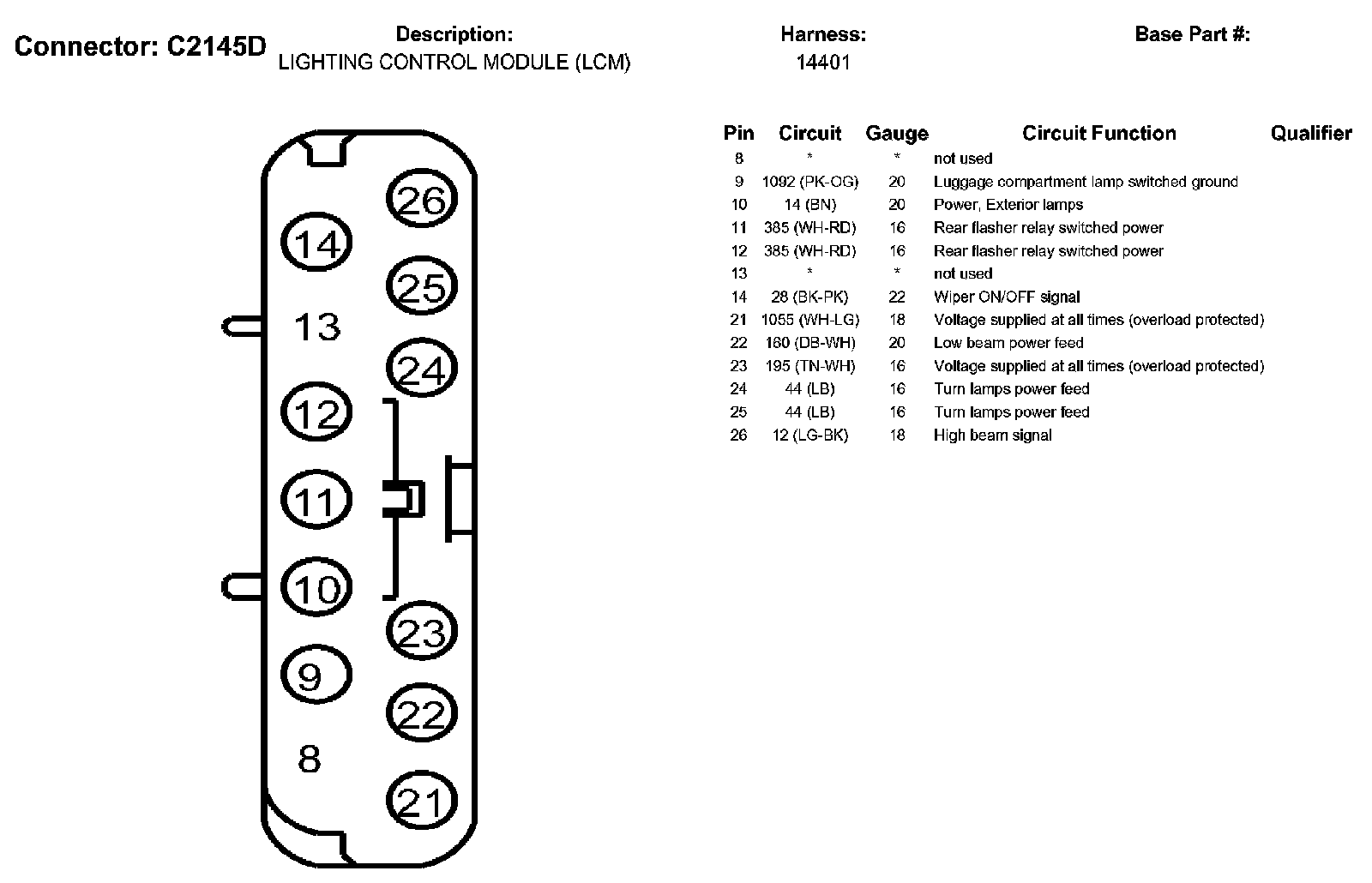

C2145D:
