Flex Plate

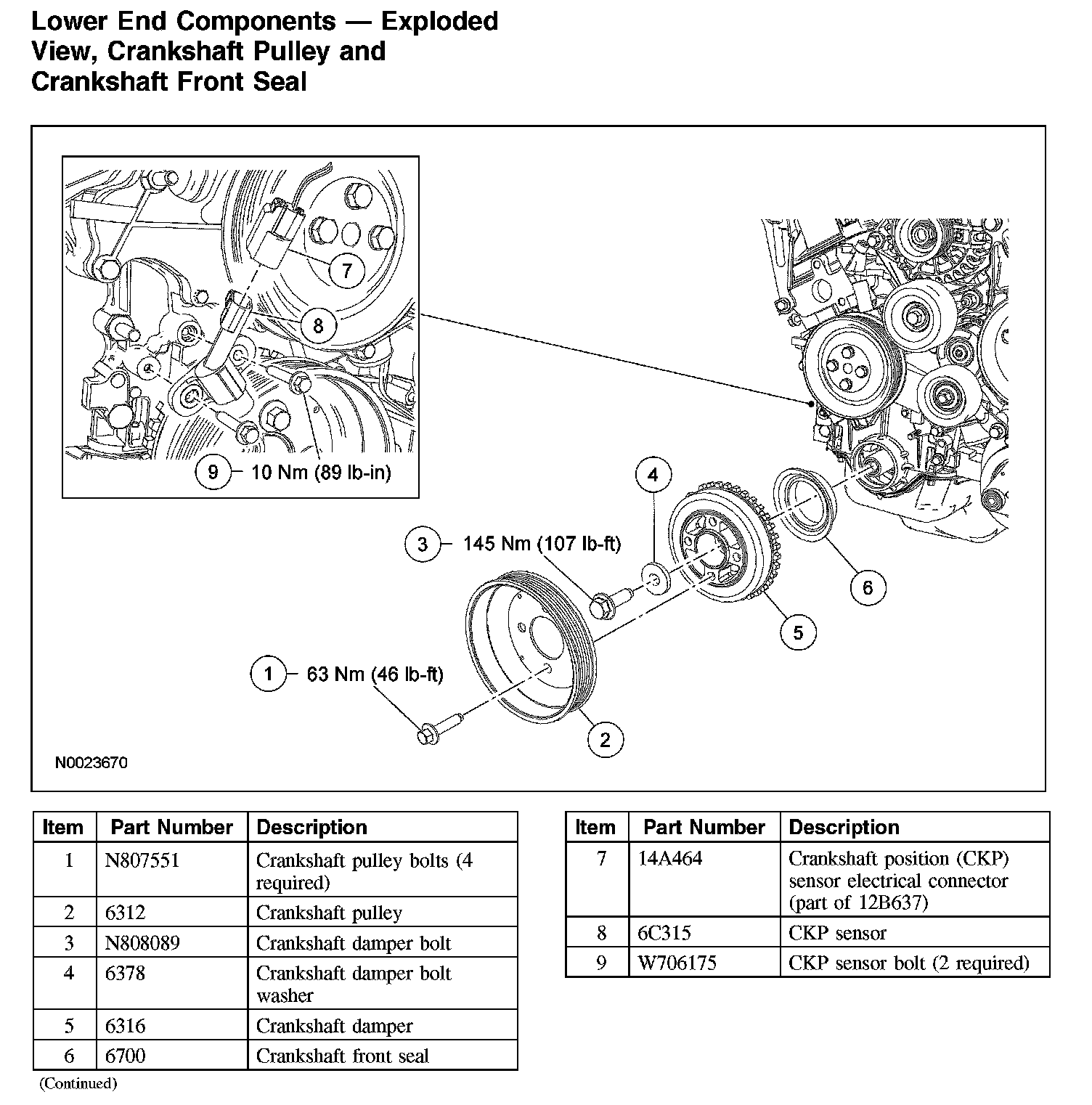

Lower End Components - Exploded View, Crankshaft Pulley and Crankshaft Front Seal

Lower End Components - Exploded View, Crankshaft Pulley and Crankshaft Front Seal:

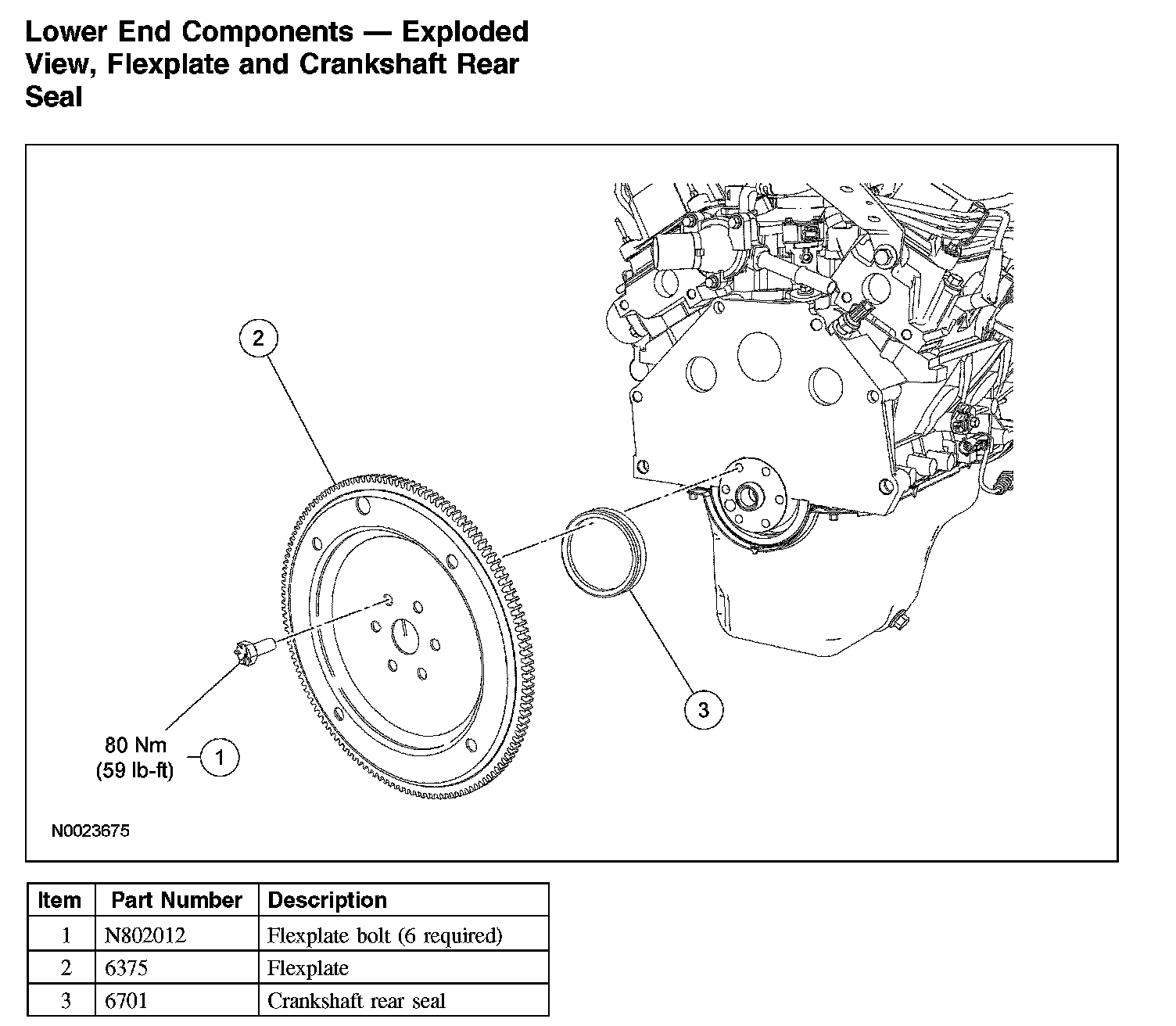

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal:
