Home >> Ford >> 2007 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Function Selector Switch Assembly

Function Selector Switch Assembly

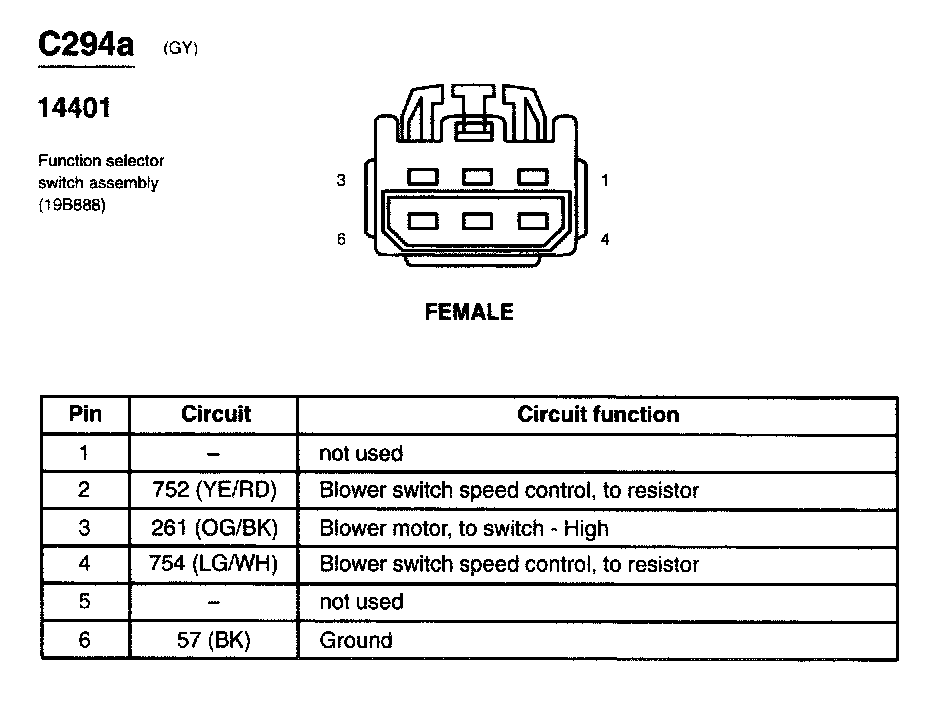

C294a:

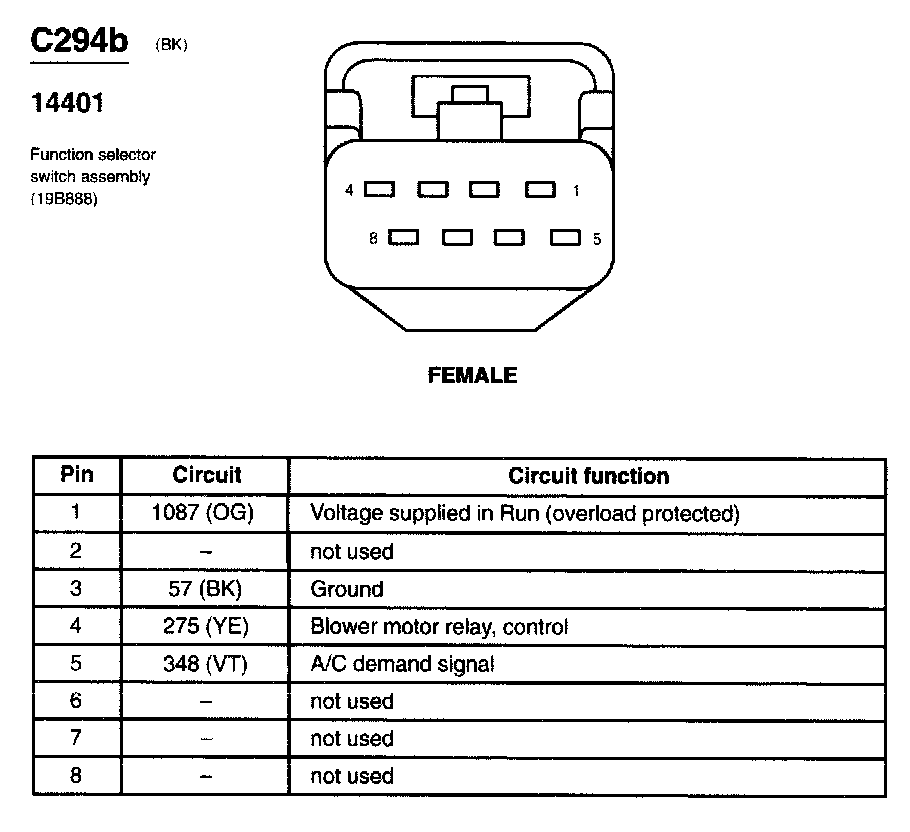

C294b:

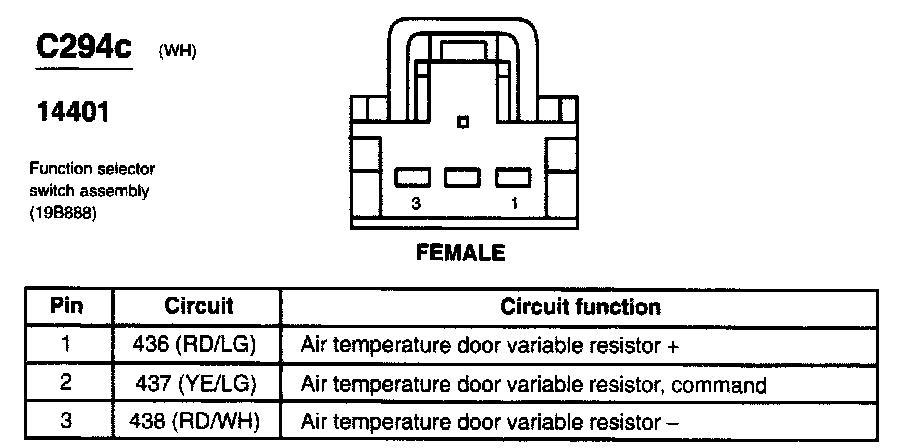

C294c:
