Home >> Ford >> 2007 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

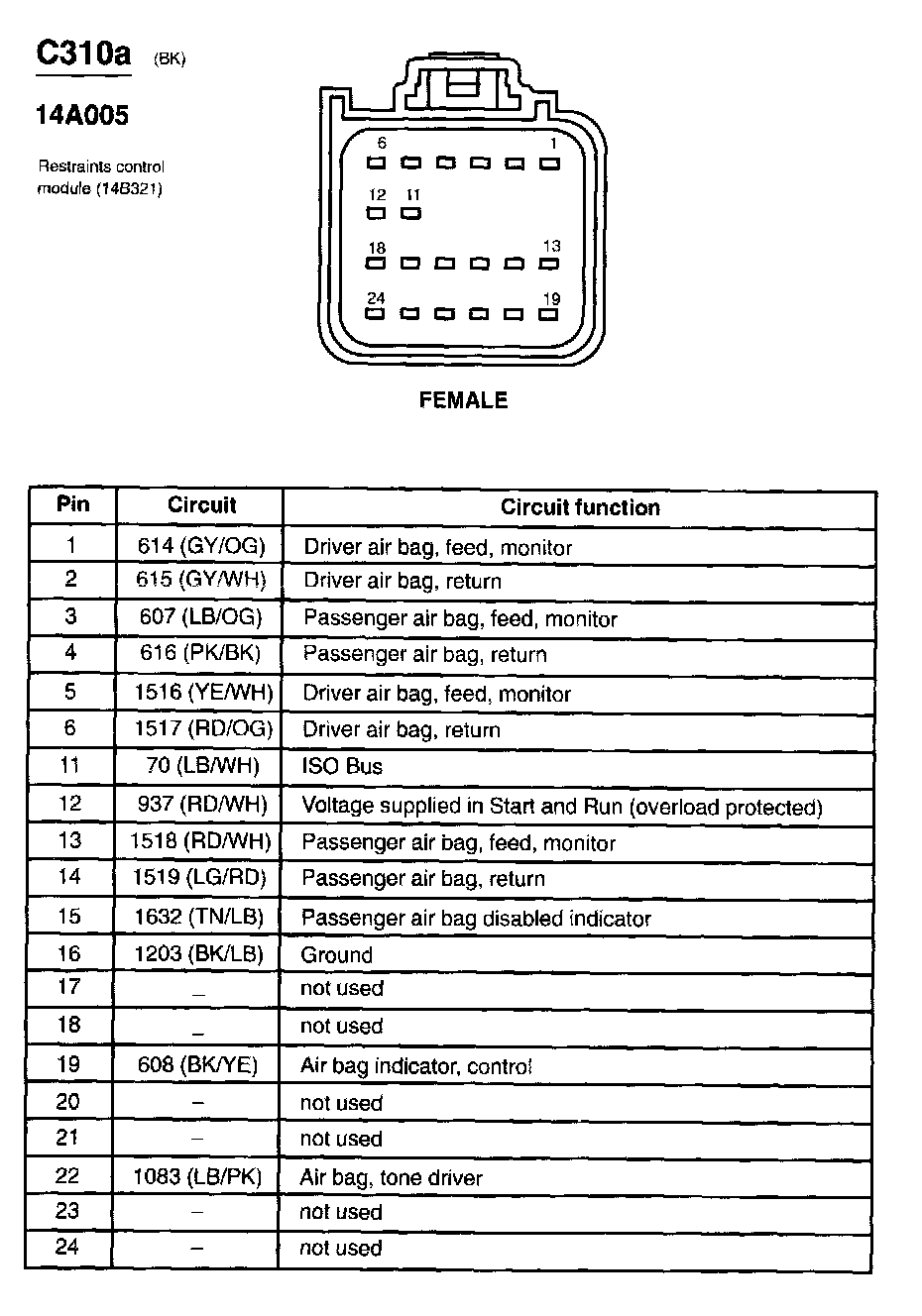

C310a:

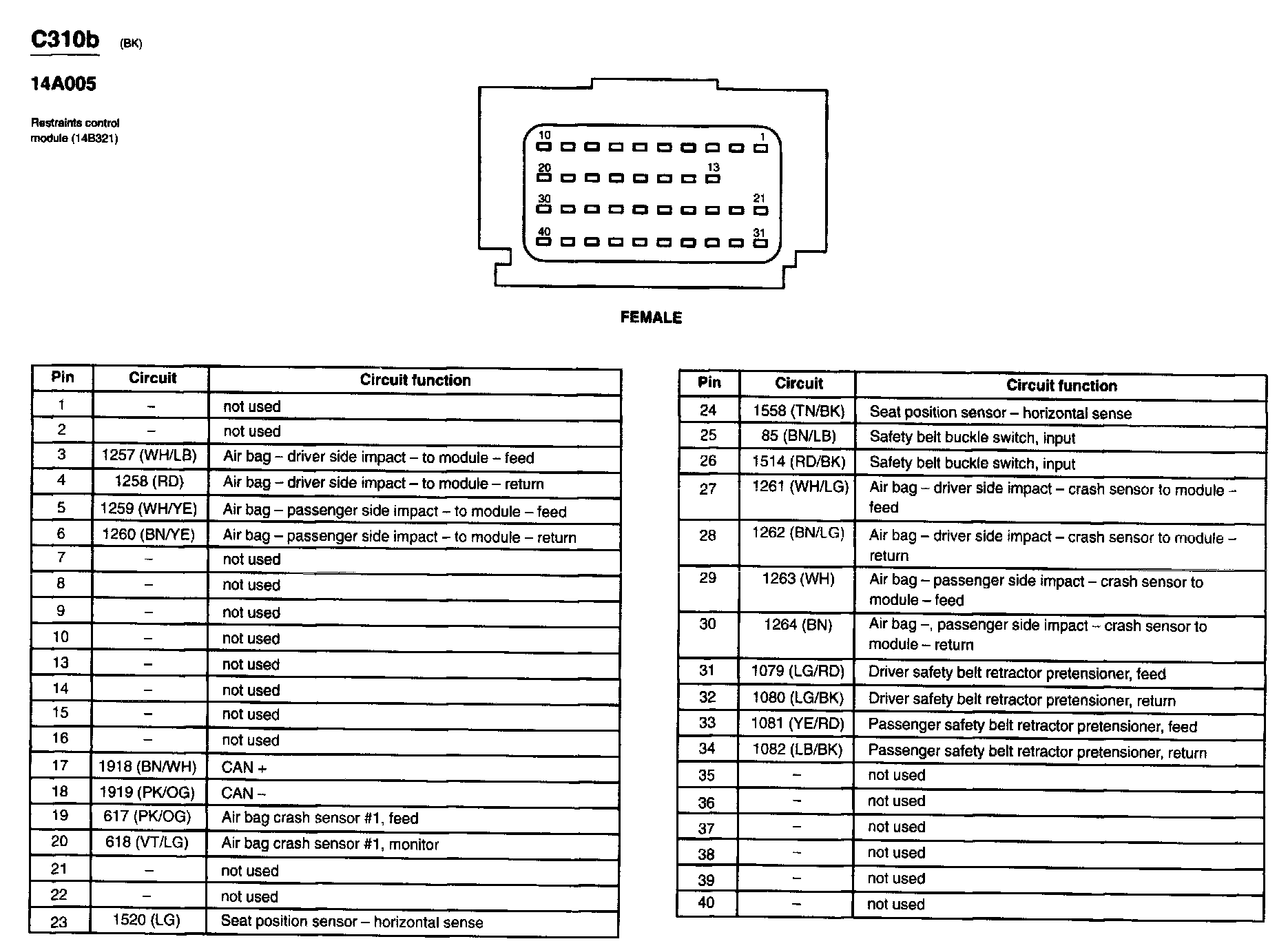

C310b:
