Home >> Ford >> 2007 >> Ranger 4WD L4-2.3L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, Transfer Case

Control Module, Transfer Case

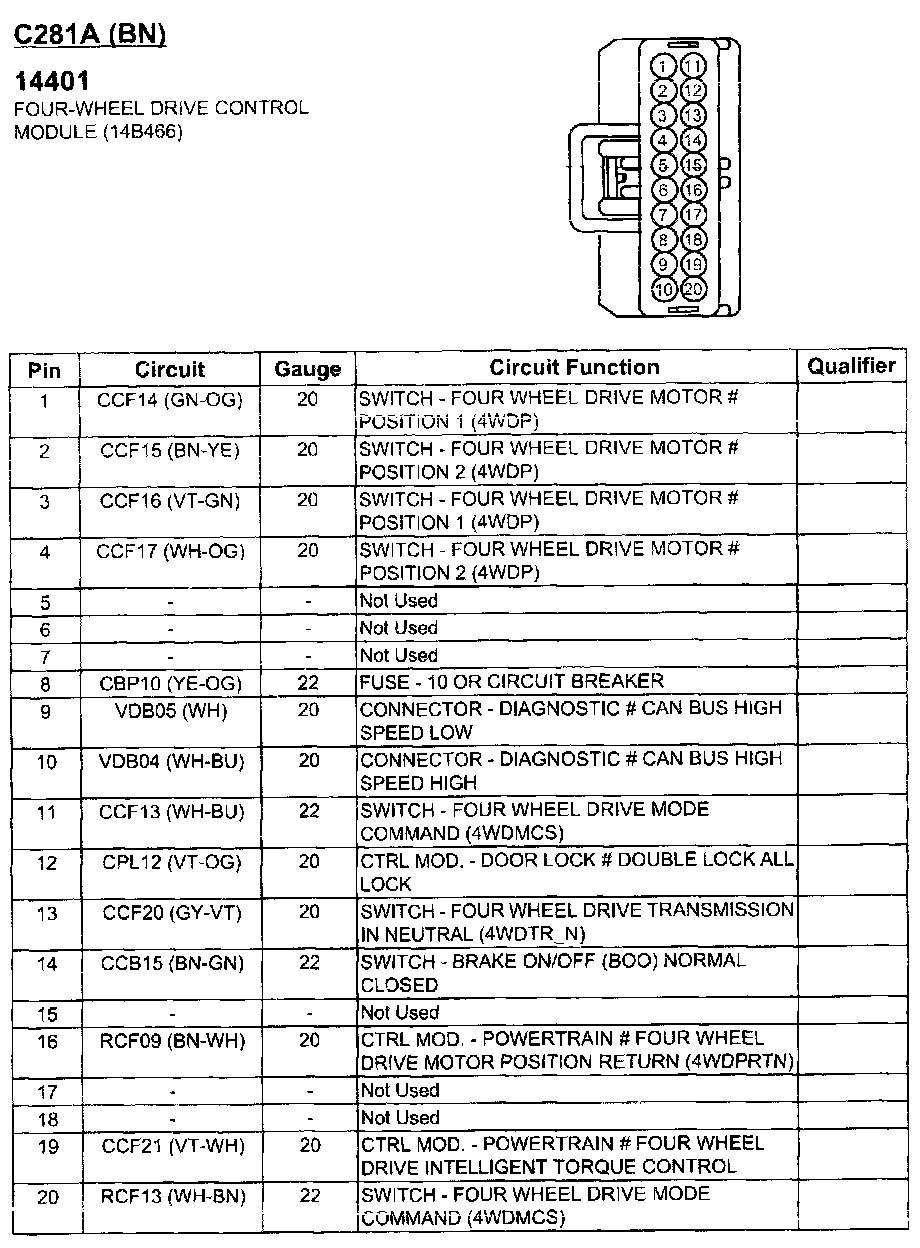

C281A:

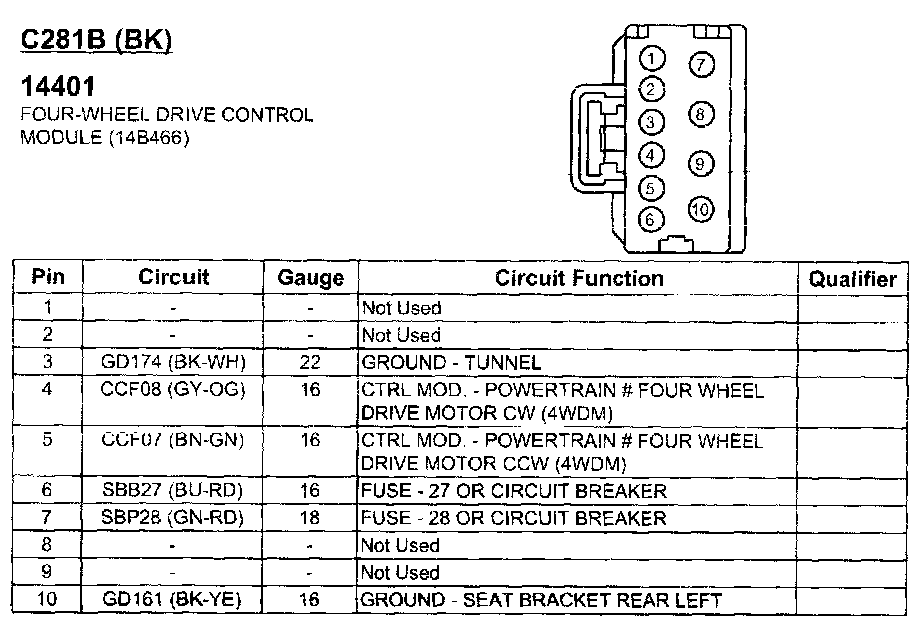

C281B:
