lemon-mirror
:
Home
>>
Ford
>>
2007
>>
Ranger 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
Electronic Brake Control Module

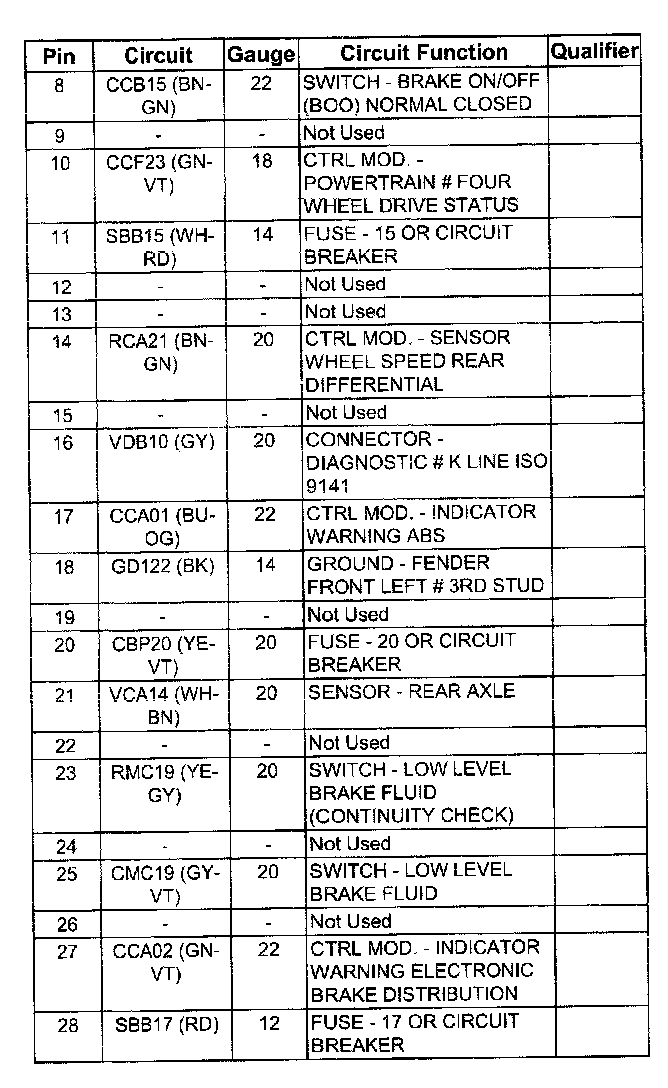

C135 (Part 1):
C135 (Part 2):
