Home >> Ford >> 2007 >> Fusion FWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

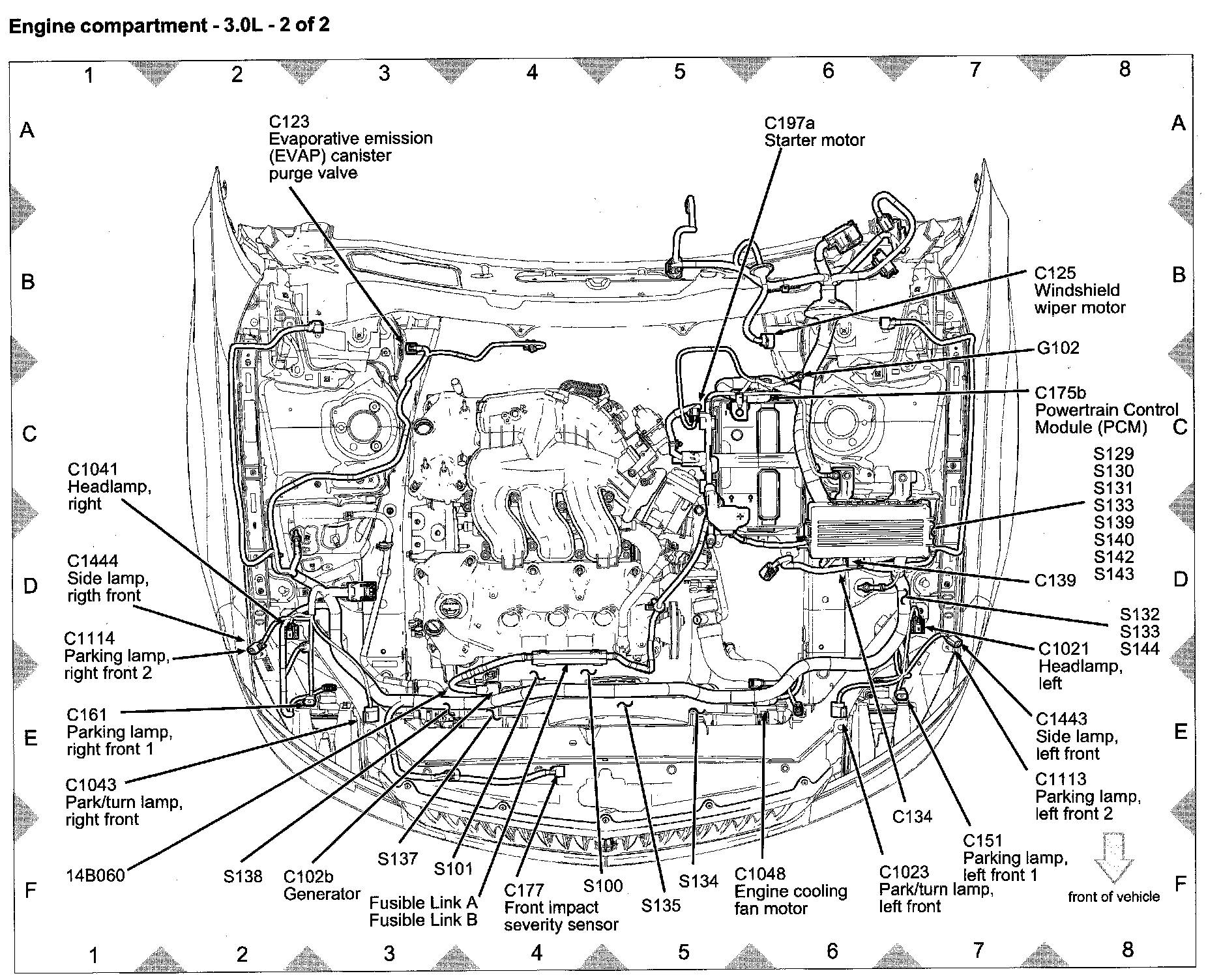

View 151-4 (Engine Compartment - 3.0L, (2 Of 2)):
