Home >> Ford >> 2007 >> Fusion FWD L4-2.3L VIN Z >> Repair and Diagnosis >> Powertrain Management >> Tune-up and Engine Performance Checks >> Compression Check >> Specifications

Compression Check: Specifications

AllData Editors Note - Ford does not provide a cranking pressure specification, only an acceptable range.

Use the Compression Pressure Limit Chart when checking cylinder compression so that the lowest reading is within 75% of the highest reading.

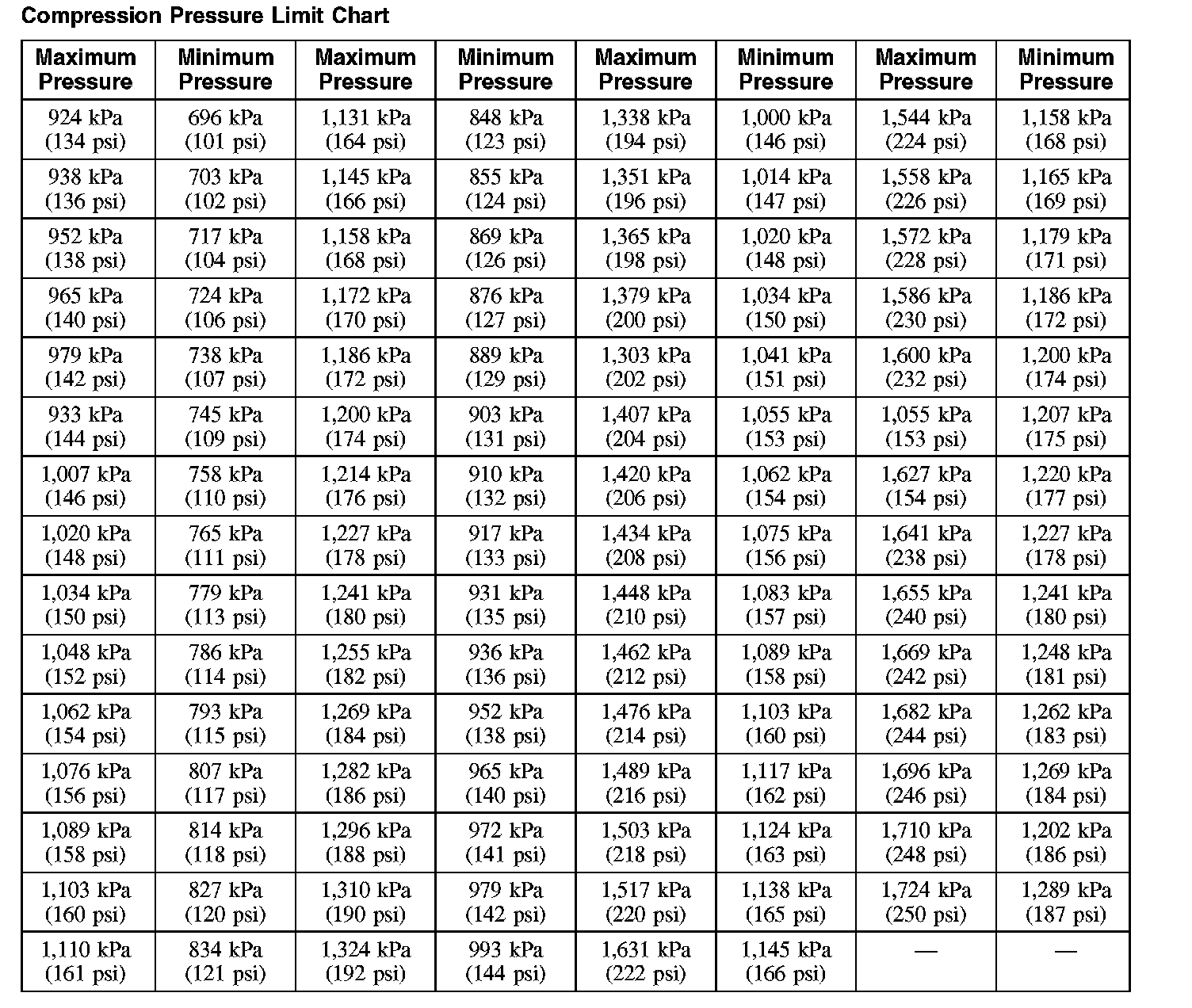

Compression Pressure Limit Chart:
