Home >> Ford >> 2007 >> Fusion FWD L4-2.3L VIN Z >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Electronic Throttle Control Module >> Locations

Electronic Throttle Control Module: Locations

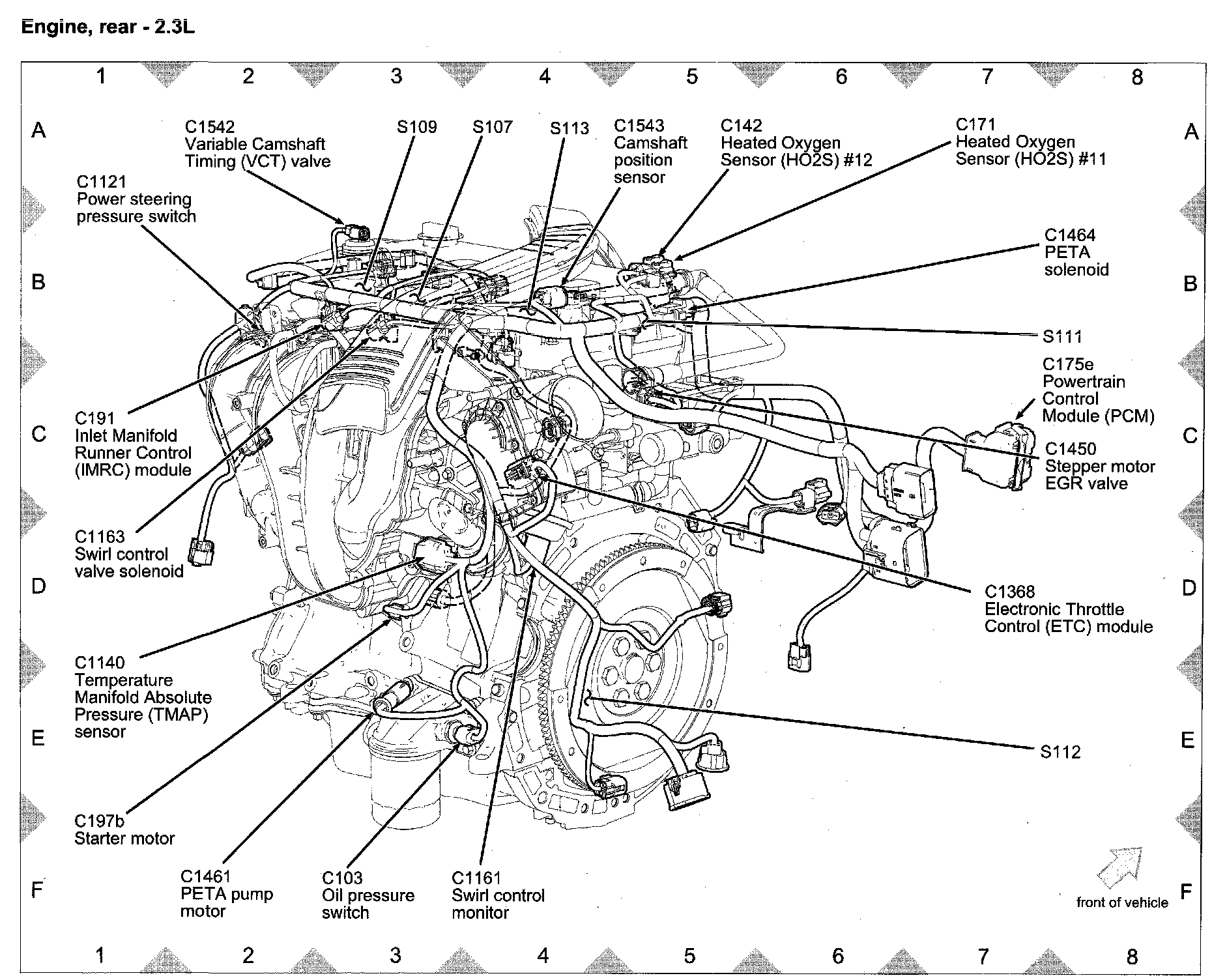

View 151-7 (Engine, Rear - 2.3L):
