Drive Belt

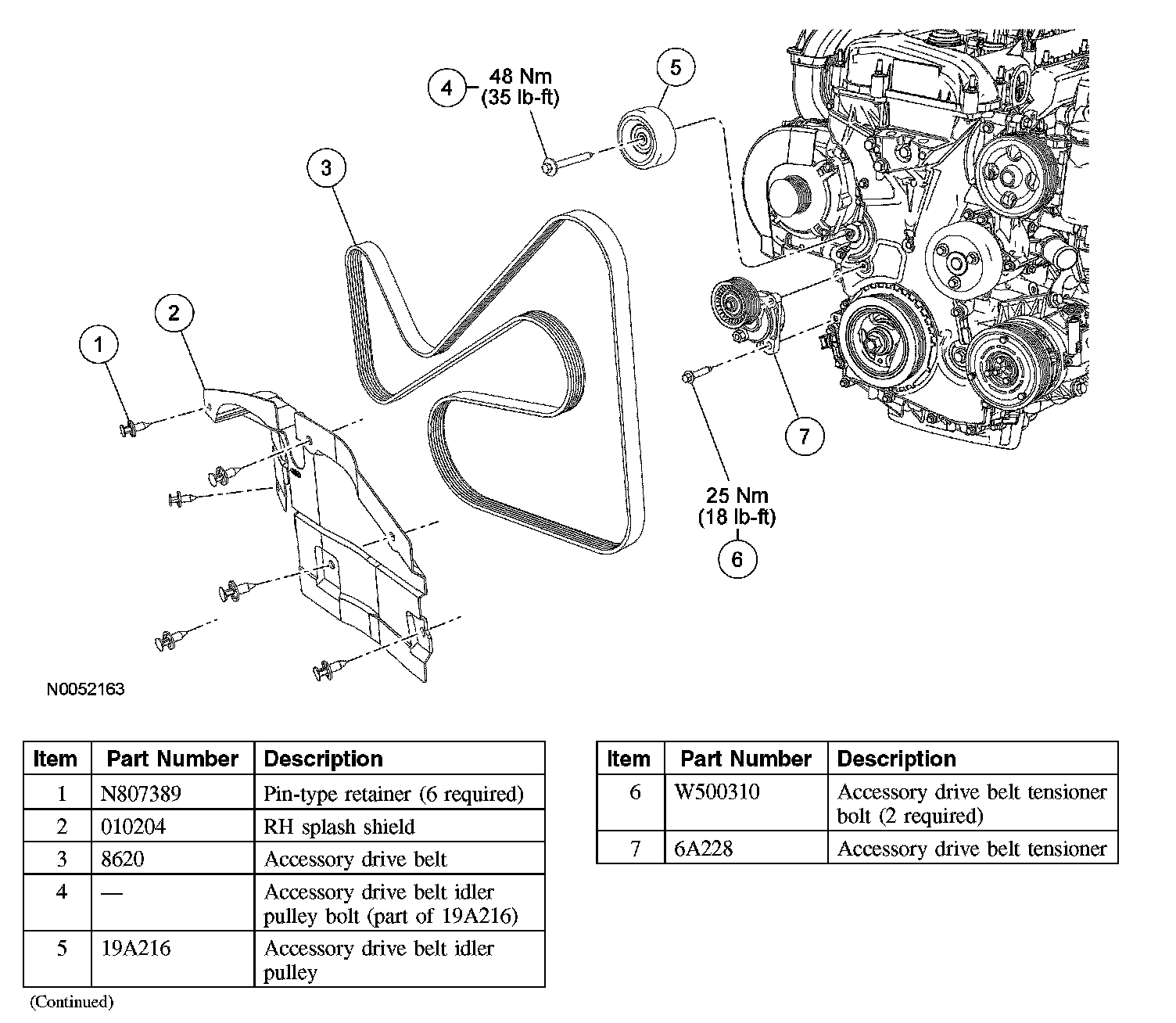

Front End Accessory Drive (FEAD) - Exploded View





1. For additional information, refer to the procedures.
