Home >> Ford >> 2007 >> Fusion FWD L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Connector Views >> Memory Positioning Module

Memory Positioning Module

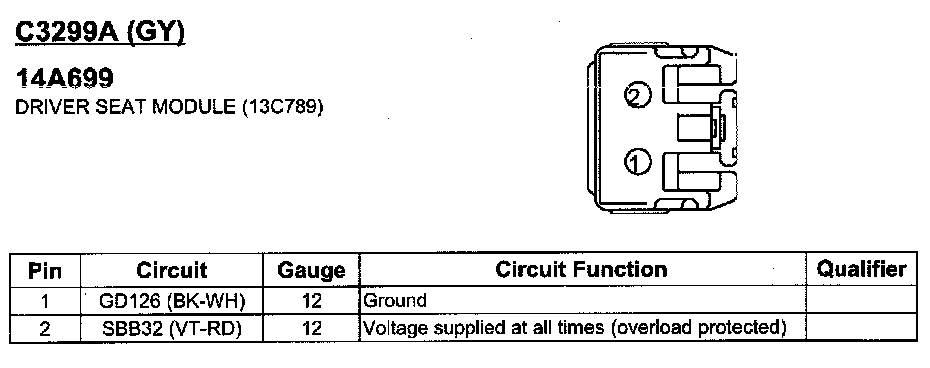

C3299A:

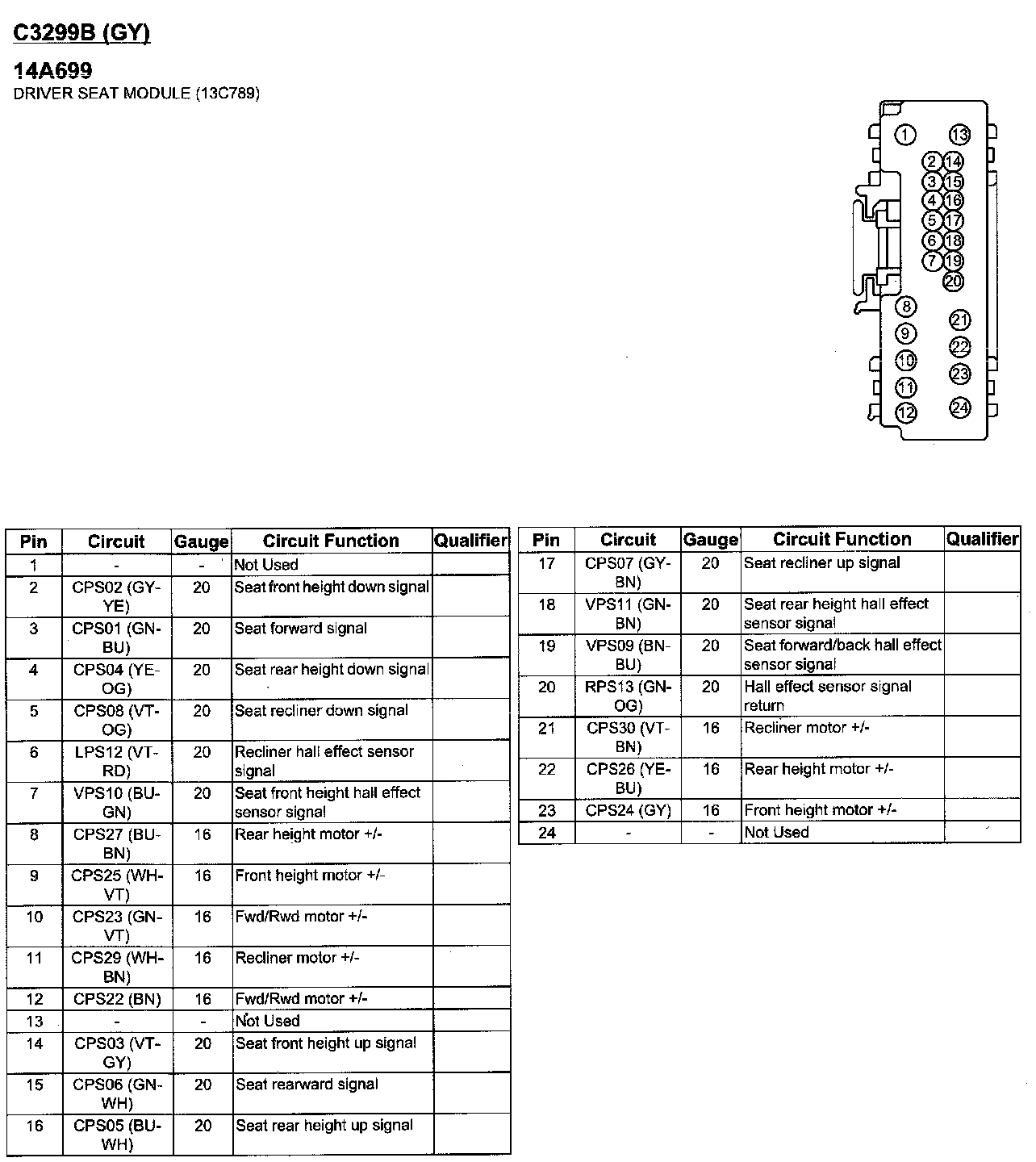

C3299B:

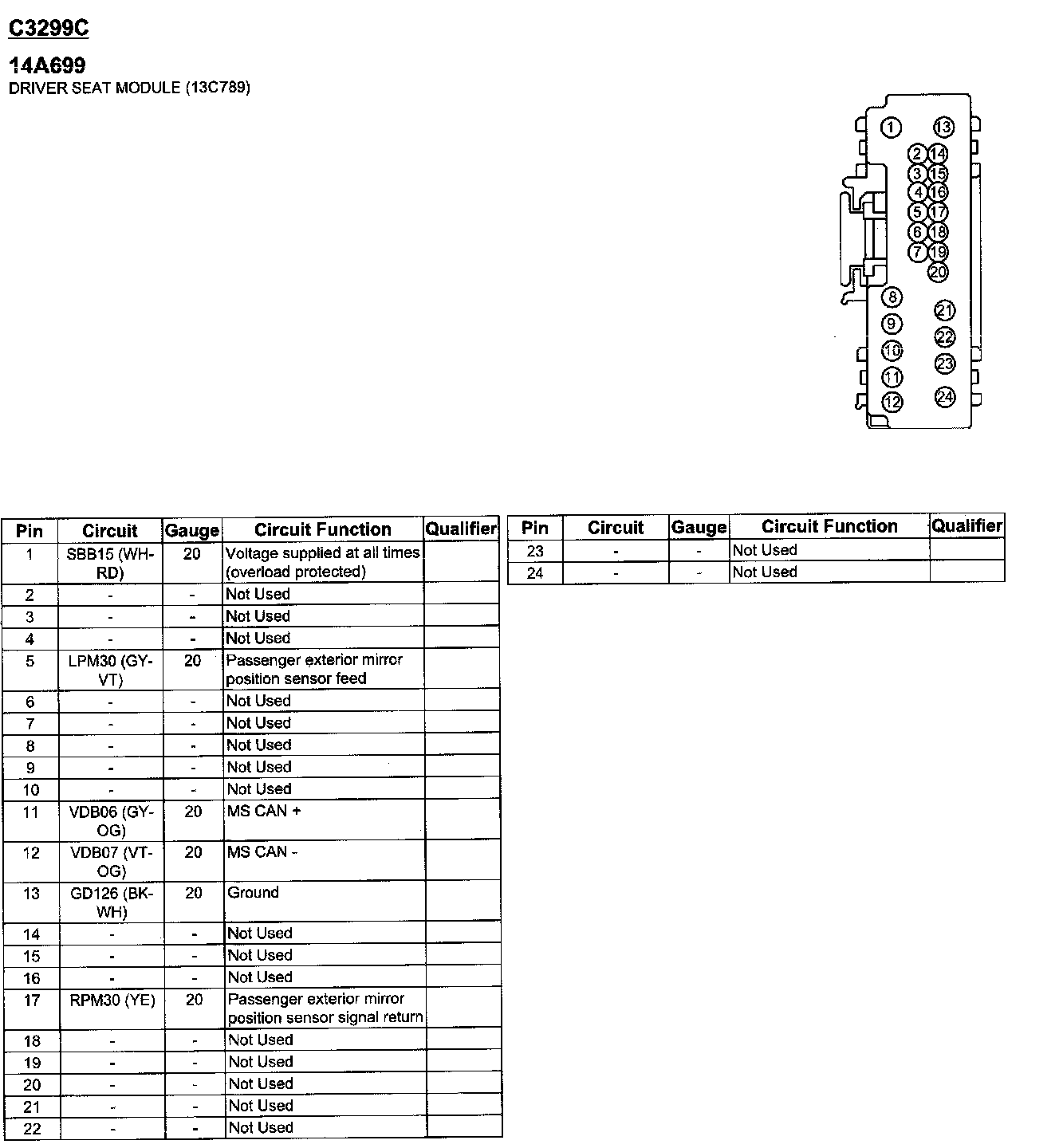

C3299C:

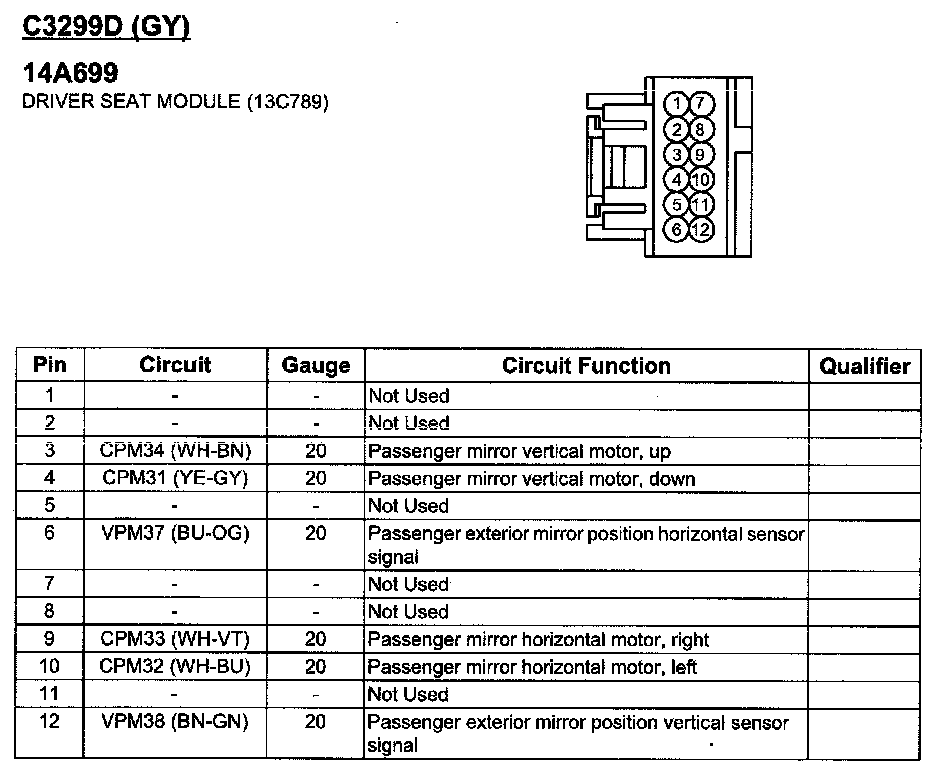

C3299D:
