Fusion FWD L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Throttle Control Module
Electronic Throttle Control Module

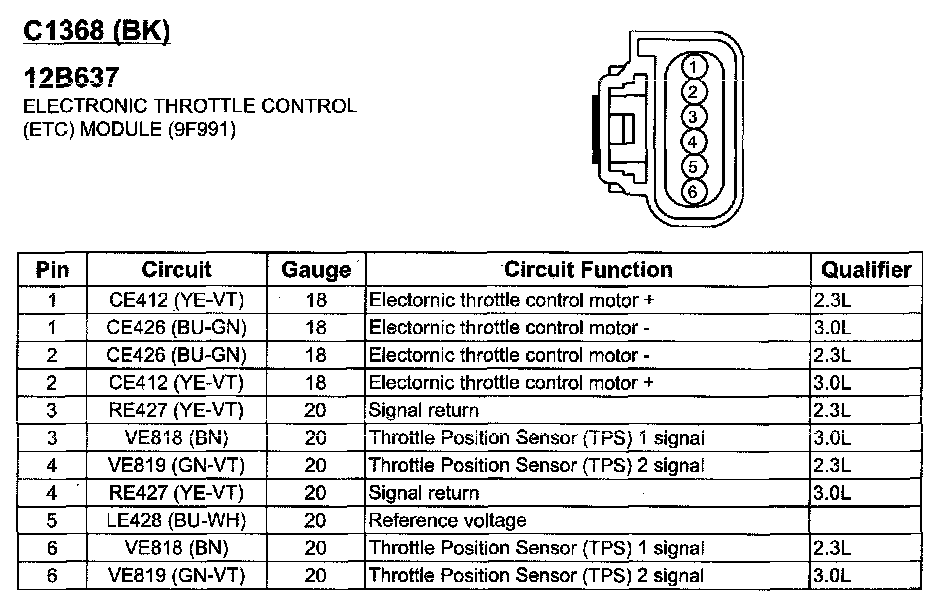

C1368:

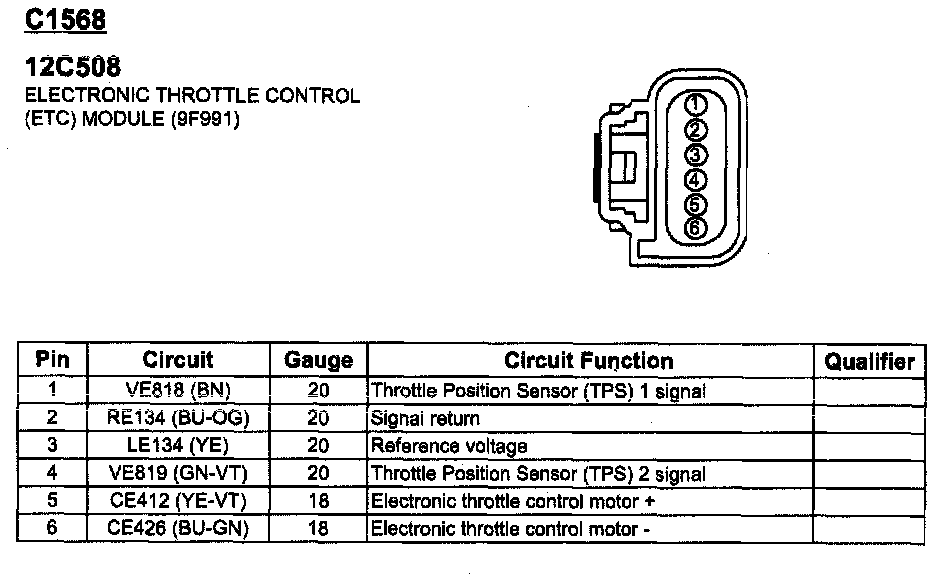

C1568:
