Ford
>>
2007
>>
Fusion AWD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, Transfer Case
>>

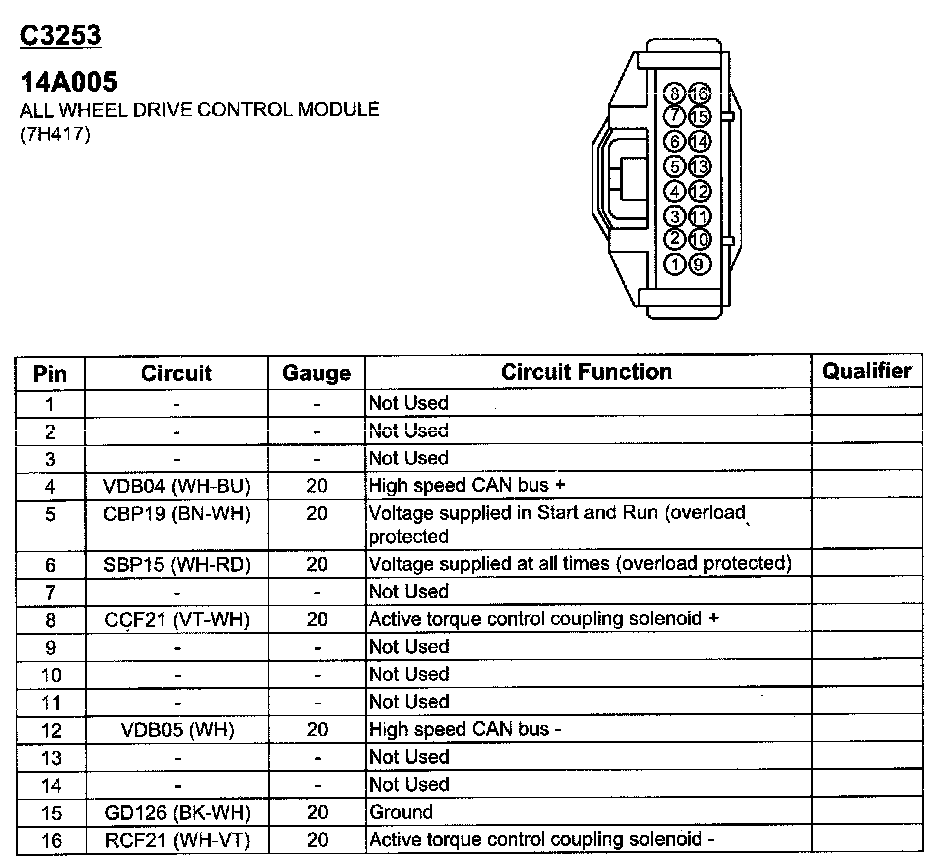

All Wheel Drive Control Module
All Wheel Drive Control Module
C3253:
