Knock Sensor: Service and Repair

KNOCK SENSOR (KS)







Removal and Installation
1. Disconnect the battery ground cable.
2. Remove the intake manifold.

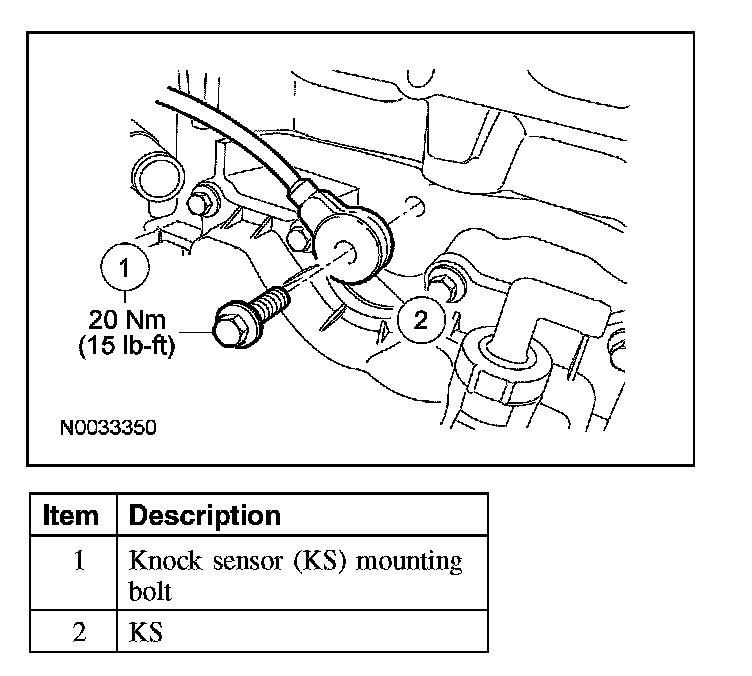

3. Remove the bolt and the KS.
- To install, tighten to 20 Nm (15 lb-ft).

4. To install, reverse the removal procedure.
