Throttle Position Sensor: Service and Repair

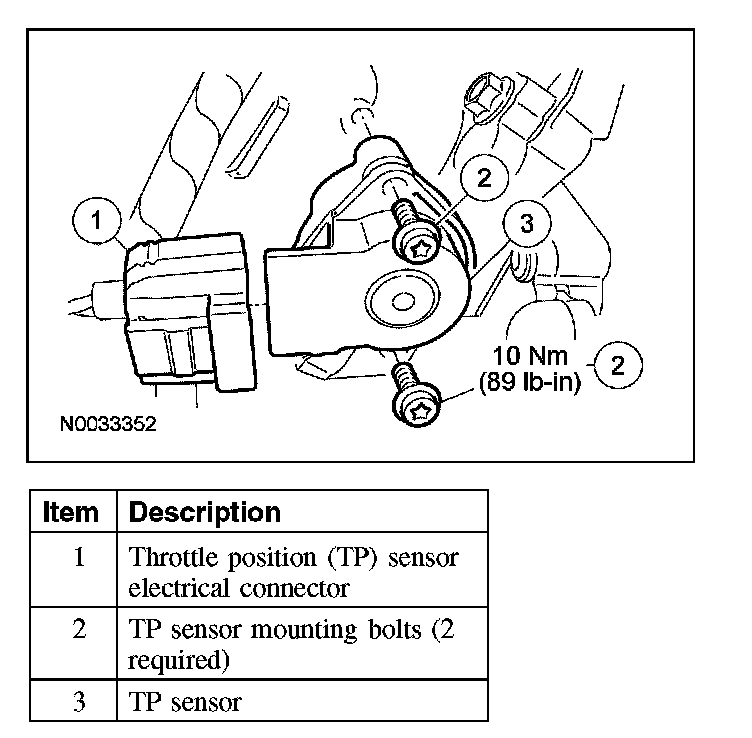

THROTTLE POSITION (TP) SENSOR







Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the throttle position (TP) sensor electrical connector.
3. Remove the 2 TP sensor retaining screws and the TP sensor.
- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
