Home >> Ford >> 2007 >> Focus L4-2.0L VIN N >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Temperature Sensor >> Locations

Engine Temperature Sensor: Locations

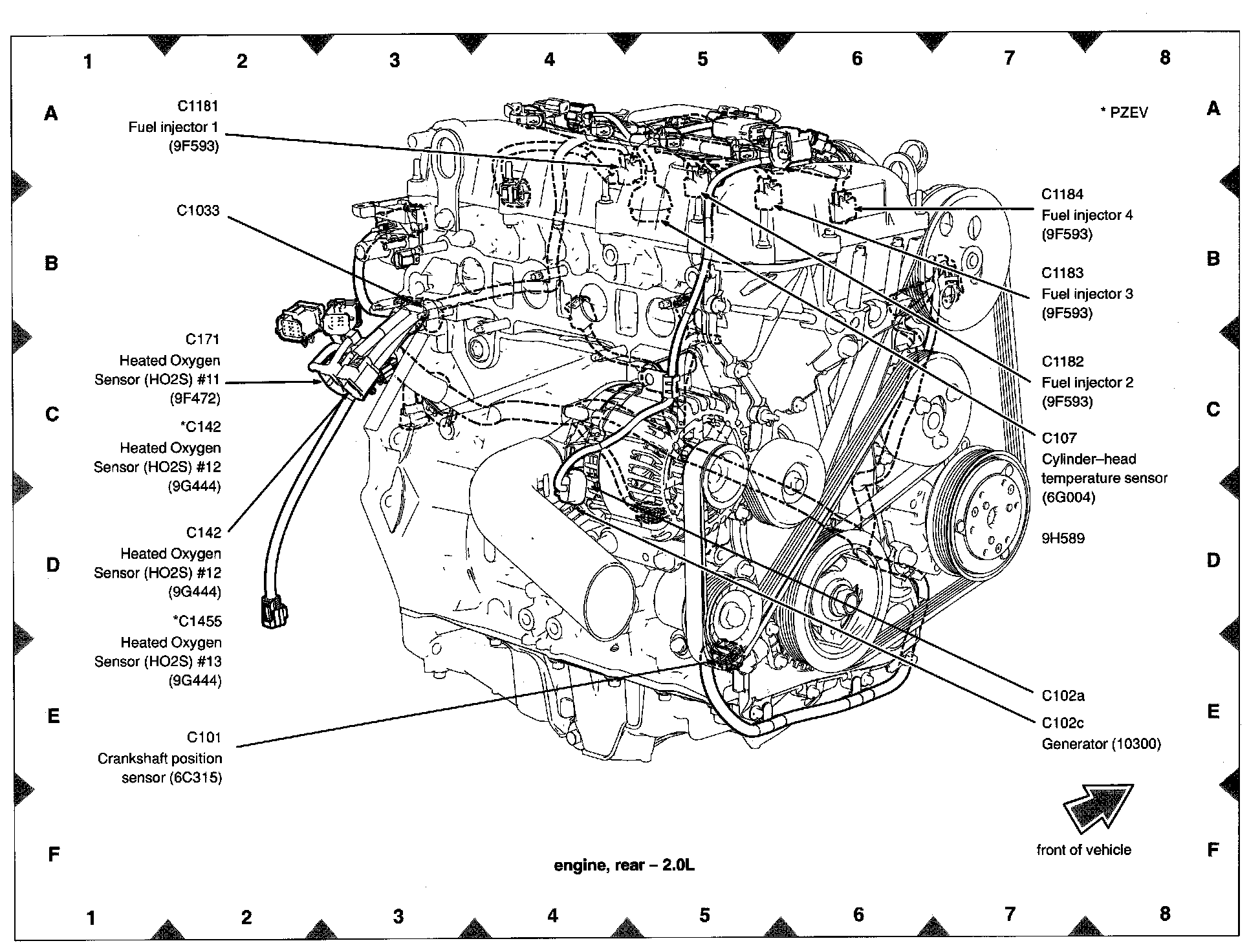

View 151-5 (Engine Rear - 2.0L):
