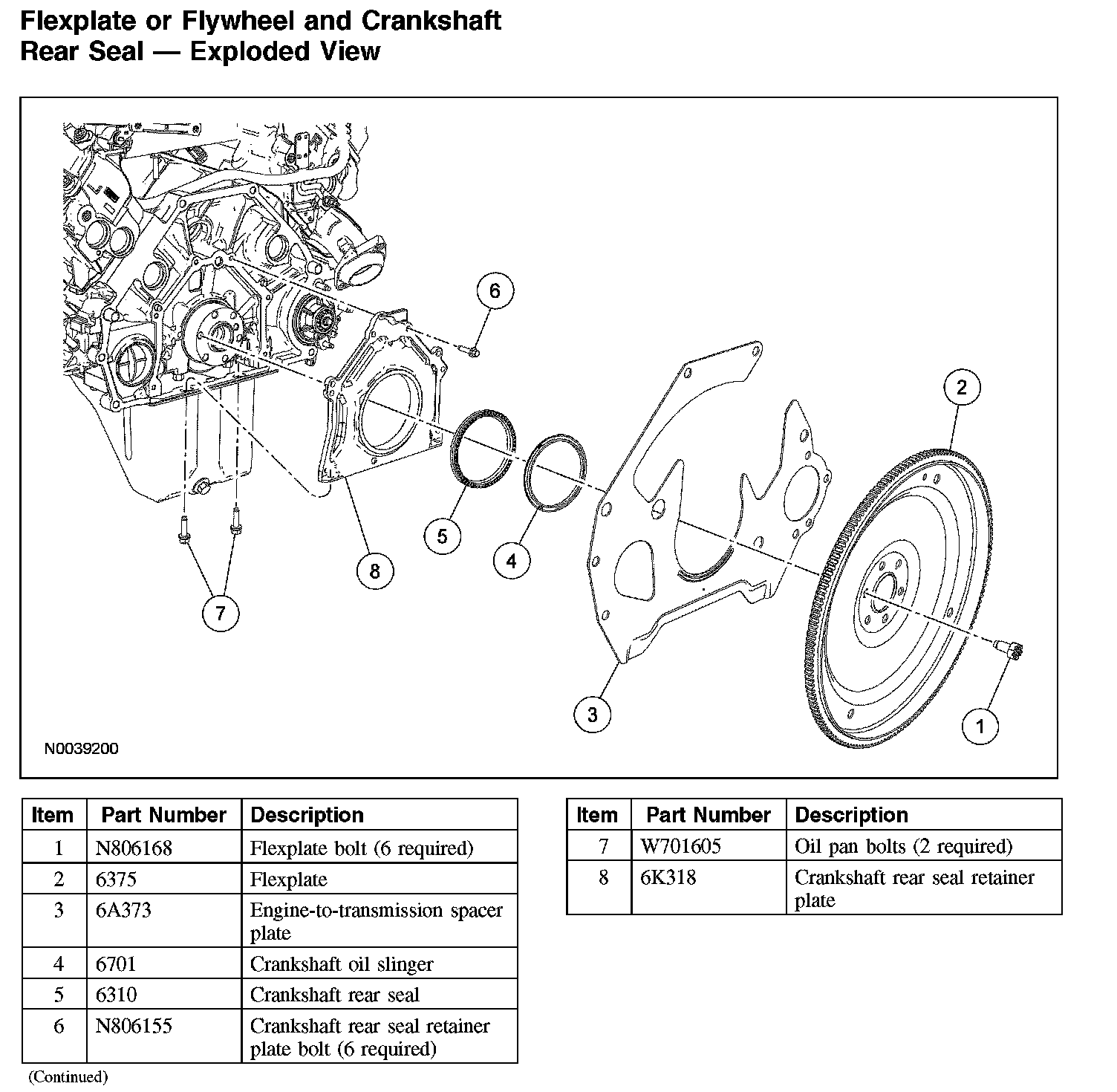

Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View
Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View:
