Timing Components

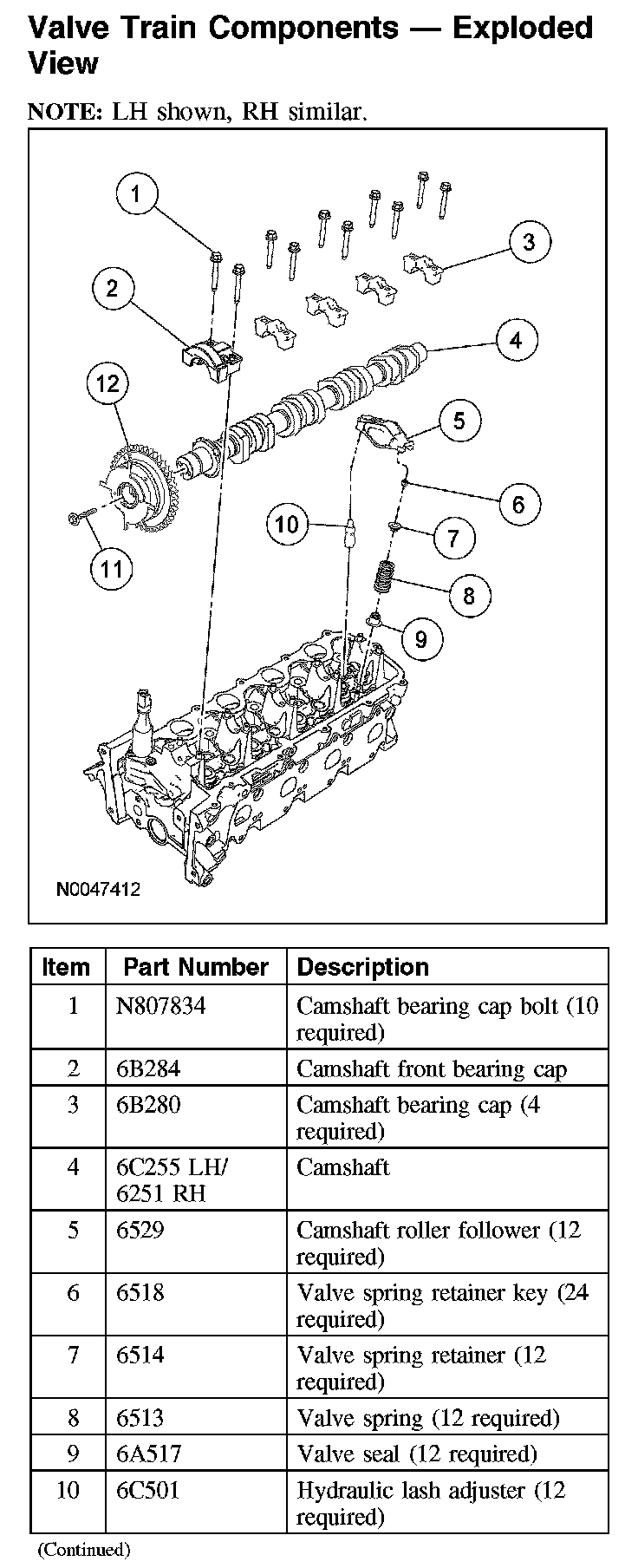

Valve Train Components - Exploded View
NOTE:
LH shown, RH similar.
Note: LH Shown, RH Similar.:

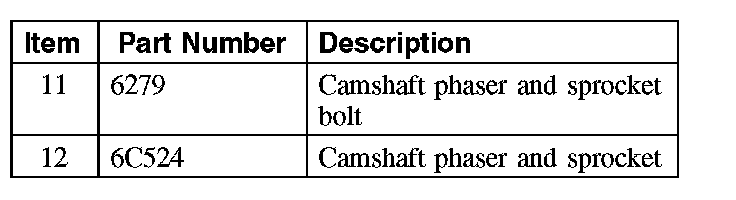

Valve Train Components - Exploded View (Part 2):
