Ford
>>
2007
>>
Explorer 2WD V8-4.6L VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Drive Belt
Drive Belt

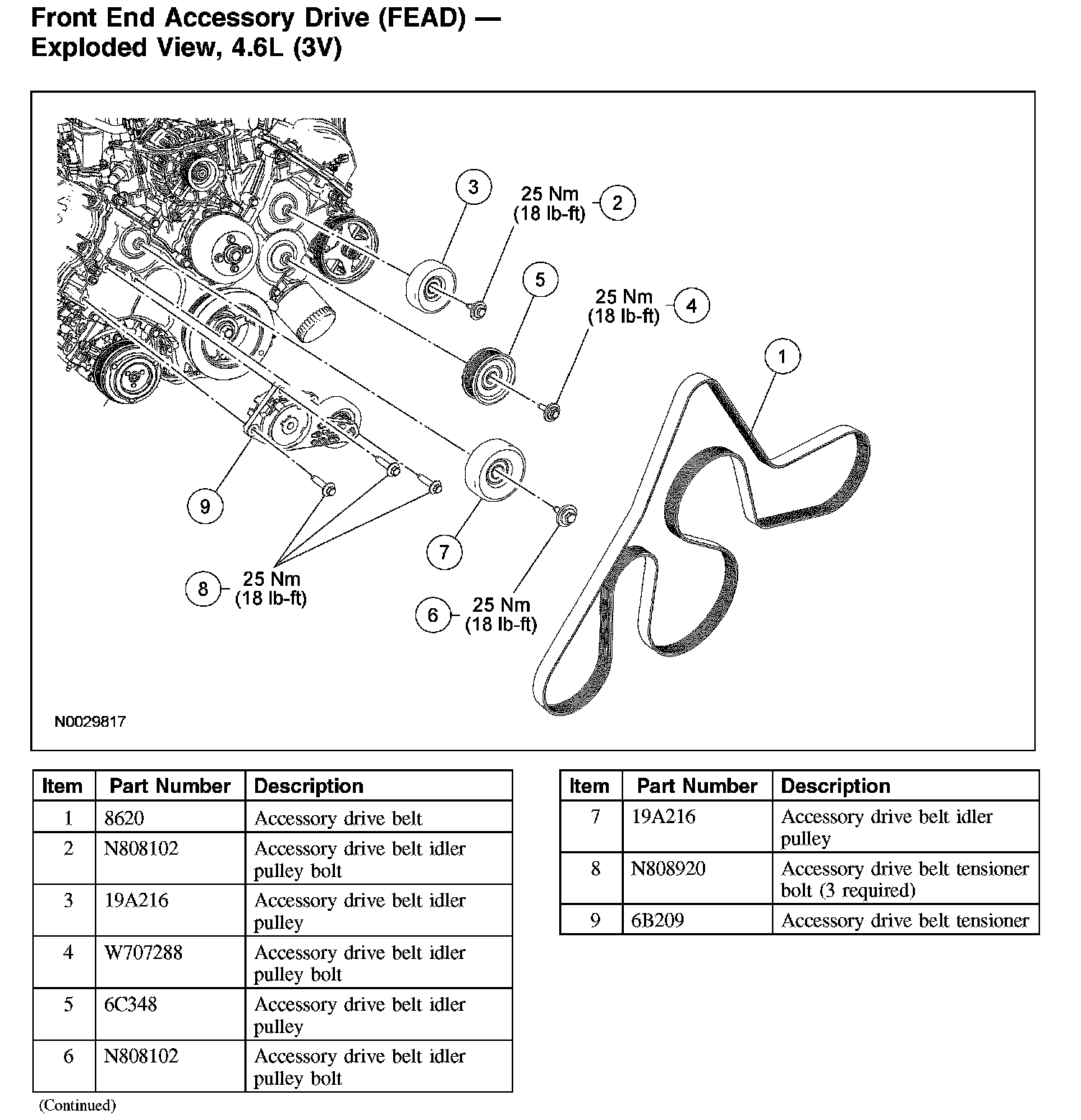

Front End Accessory Drive (FEAD) - Exploded View, 4.6L (3V)
Front End Accessory Drive (FEAD) - Exploded View, 4.6L (3V):
