Home >> Ford >> 2007 >> Explorer 2WD V8-4.6L VIN 8 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC

Control Module HVAC

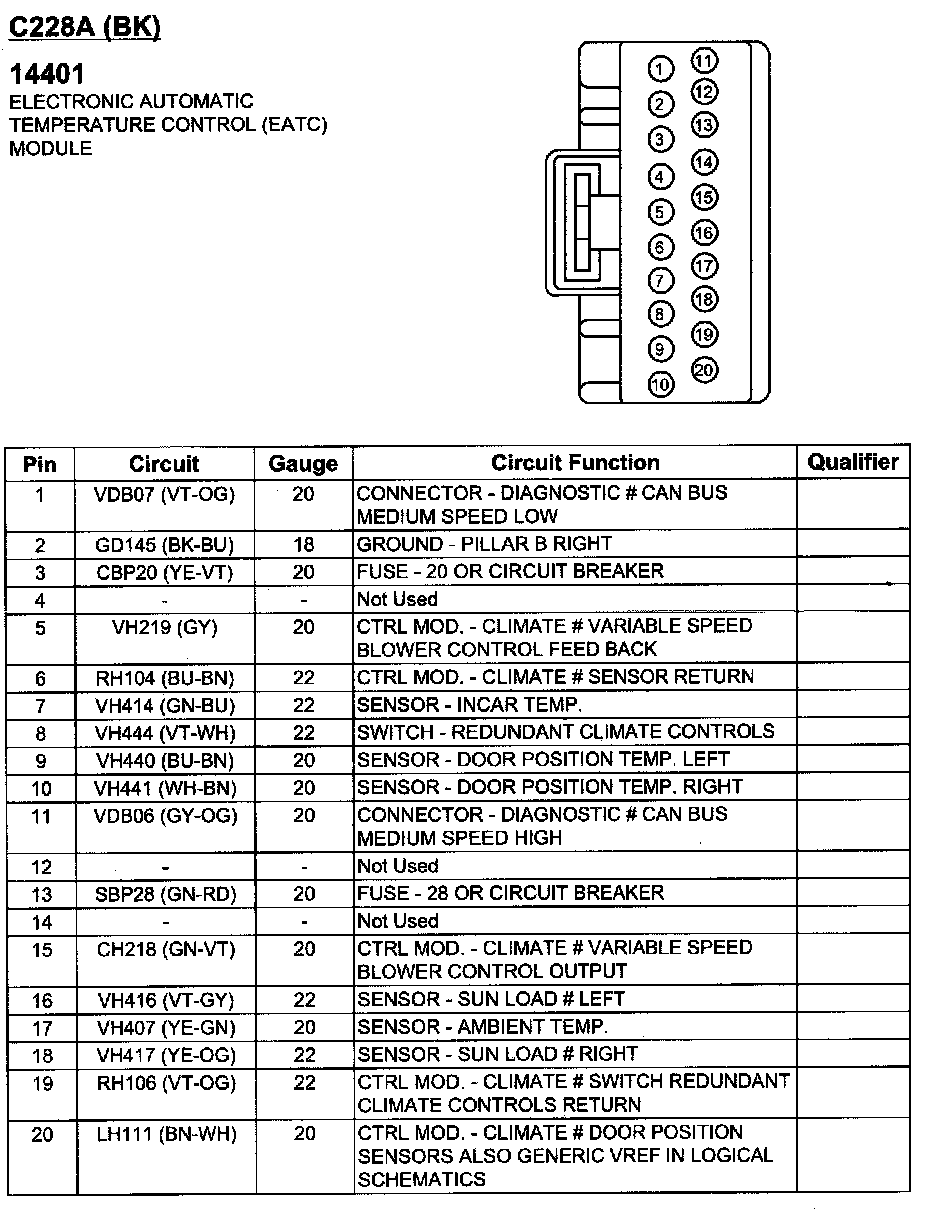

C228A:



C228B:
