Home >> Ford >> 2007 >> Explorer 2WD V6-4.0L VIN K >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine Lubrication

Engine Lubrication

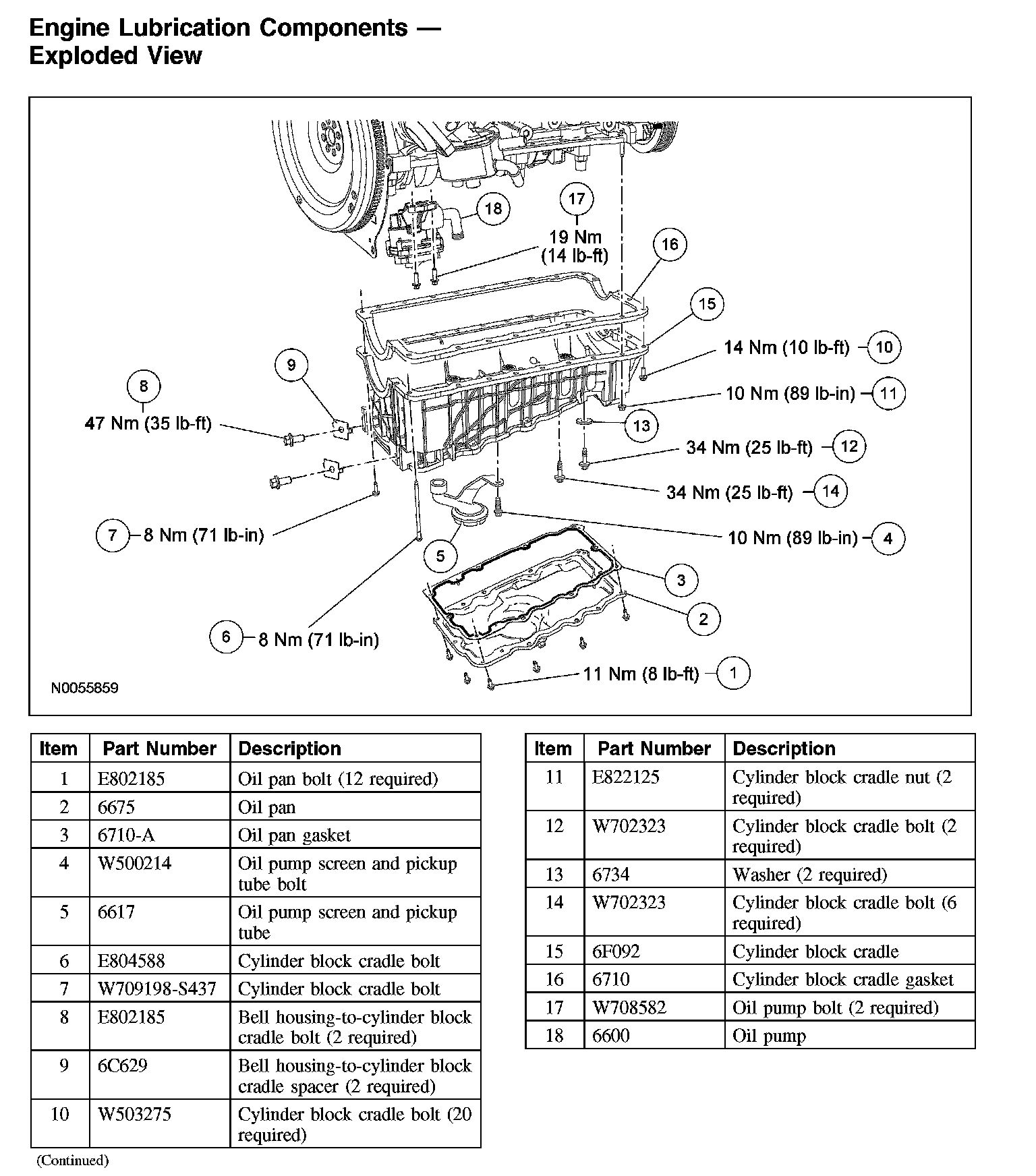

Engine Lubrication Components - Exploded View

Engine Lubrication Components - Exploded View:
