Ford
>>
2007
>>
Expedition 4WD V8-5.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
Differential Assembly

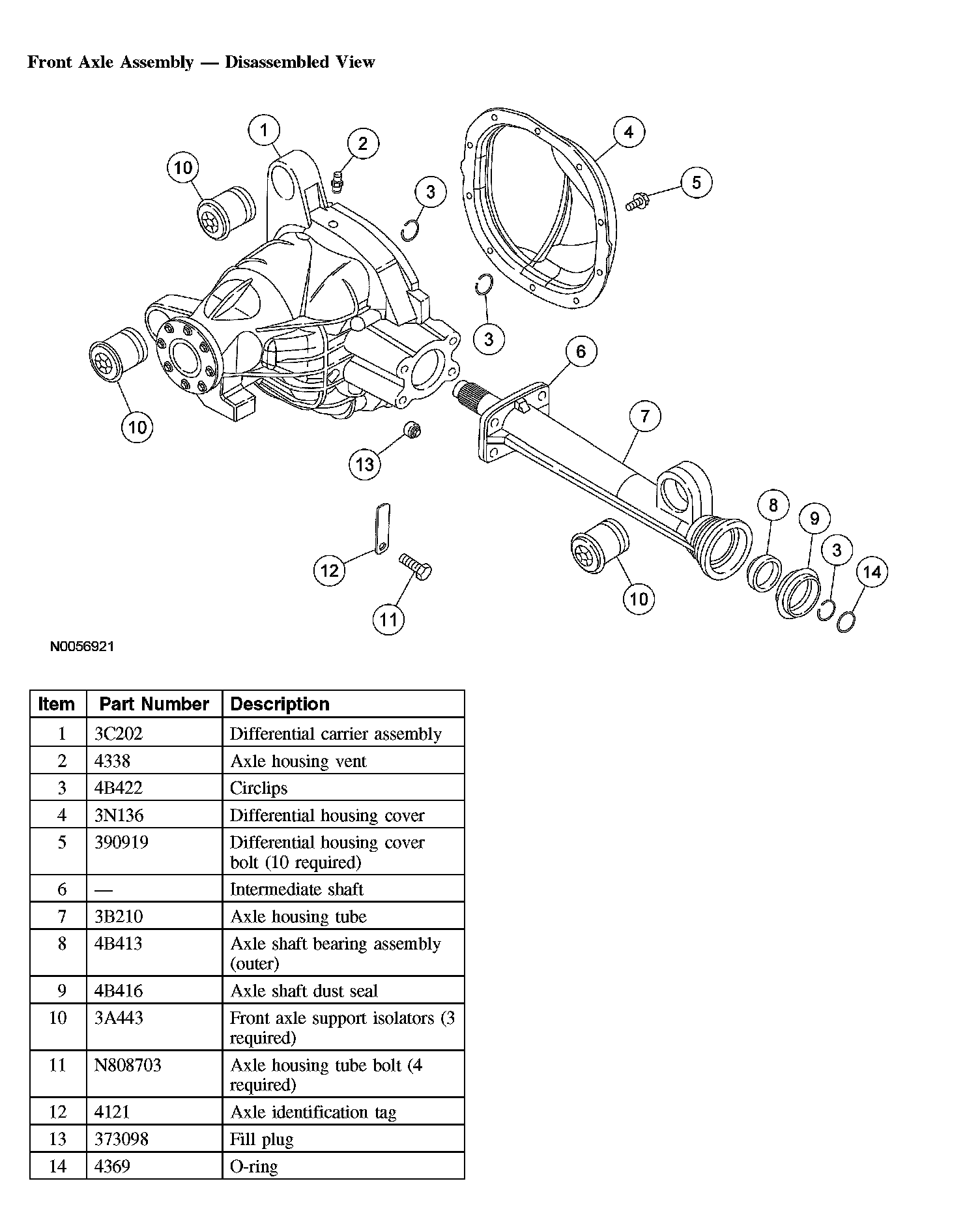

Front Axle Assembly - Disassembled View:

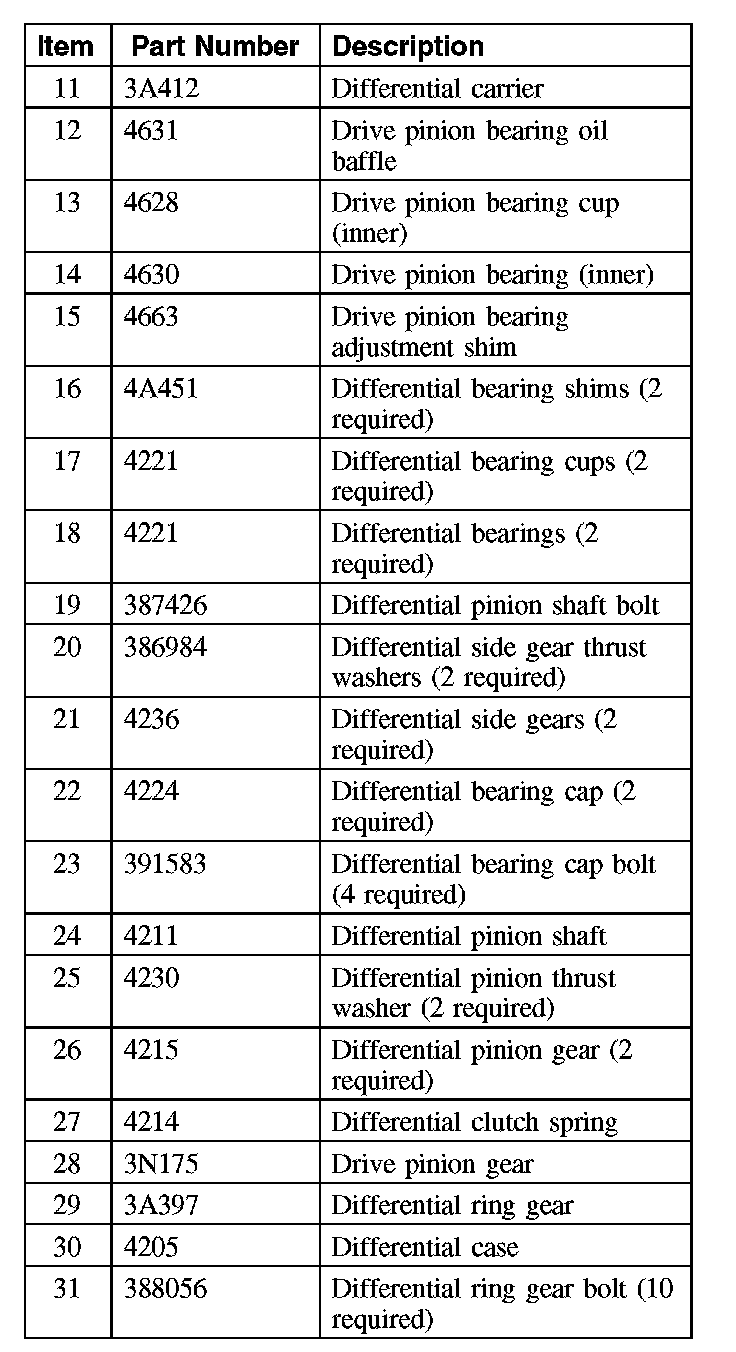

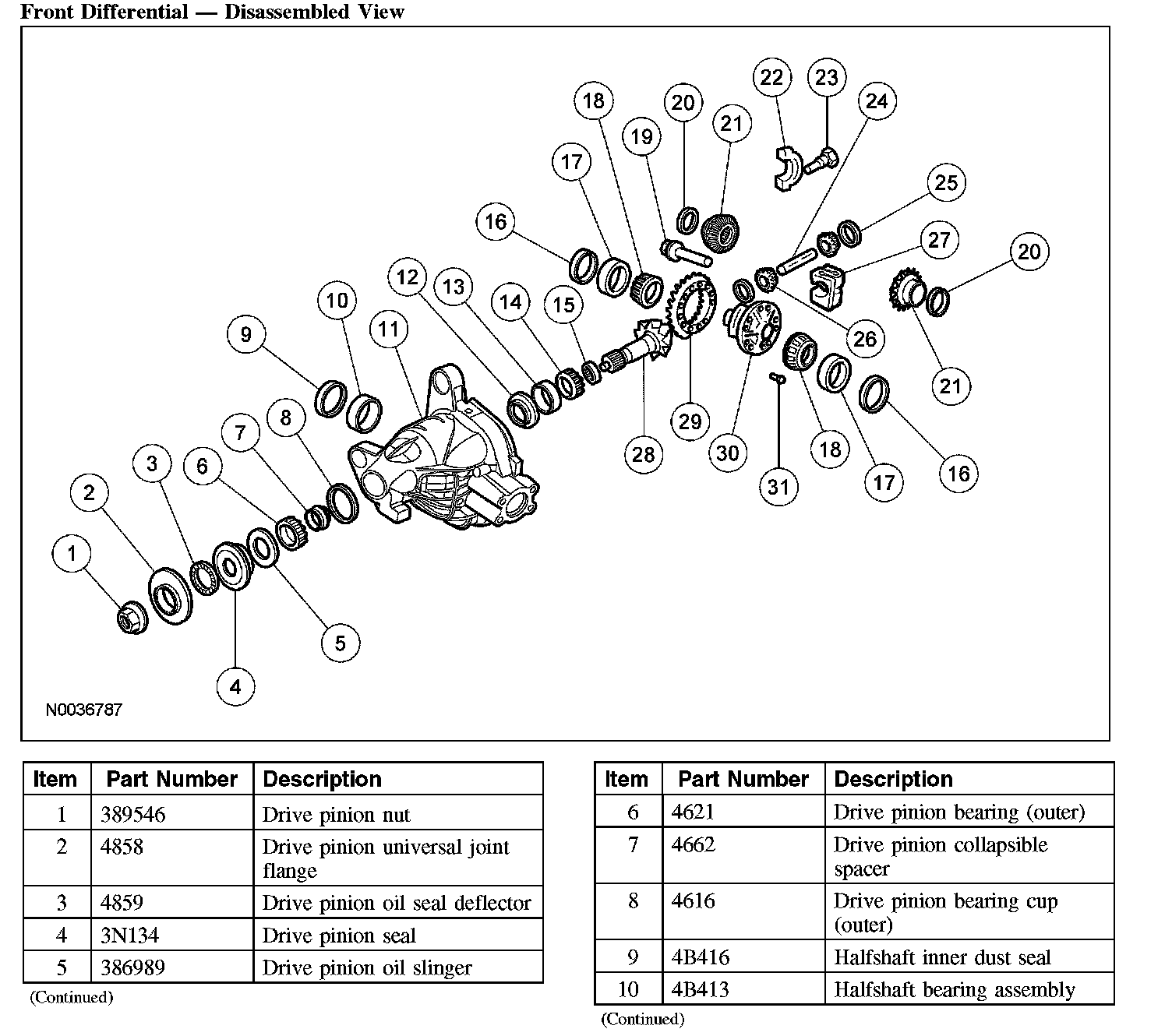

Front Differential - Disassembled View:
