Home >> Ford >> 2007 >> Expedition 4WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transfer Case >> Control Module, Transfer Case

Control Module, Transfer Case

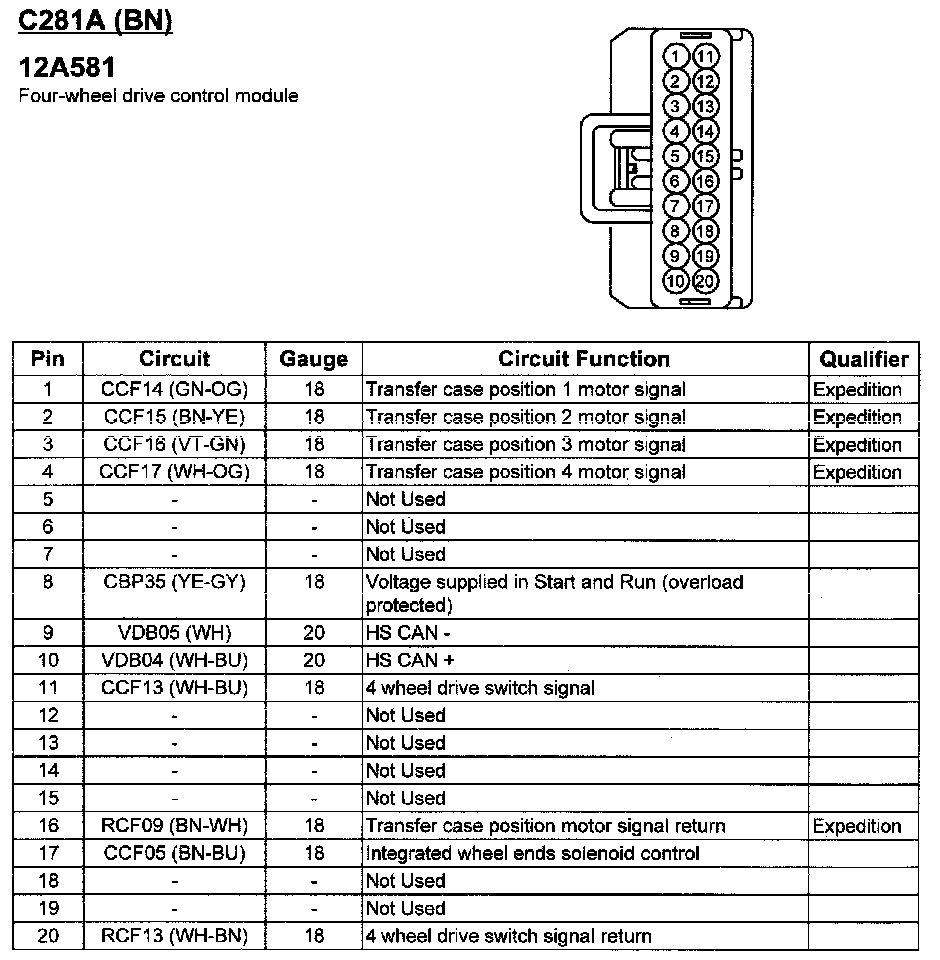

C281A:

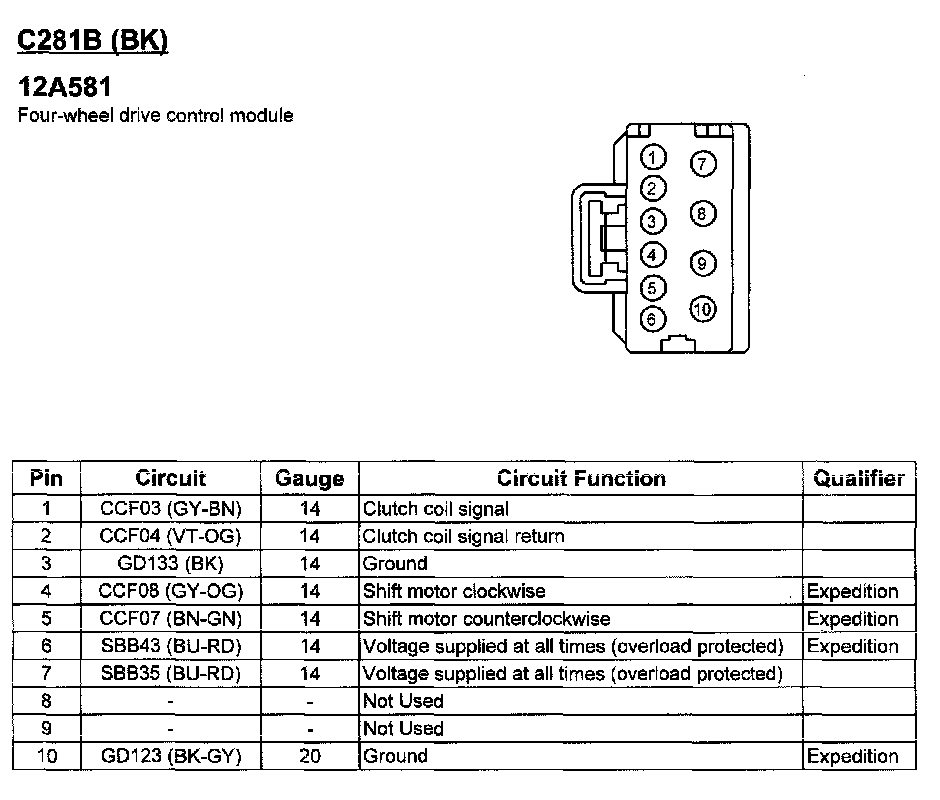

C281B:
