Climate Control Assembly

CLIMATE CONTROL ASSEMBLY

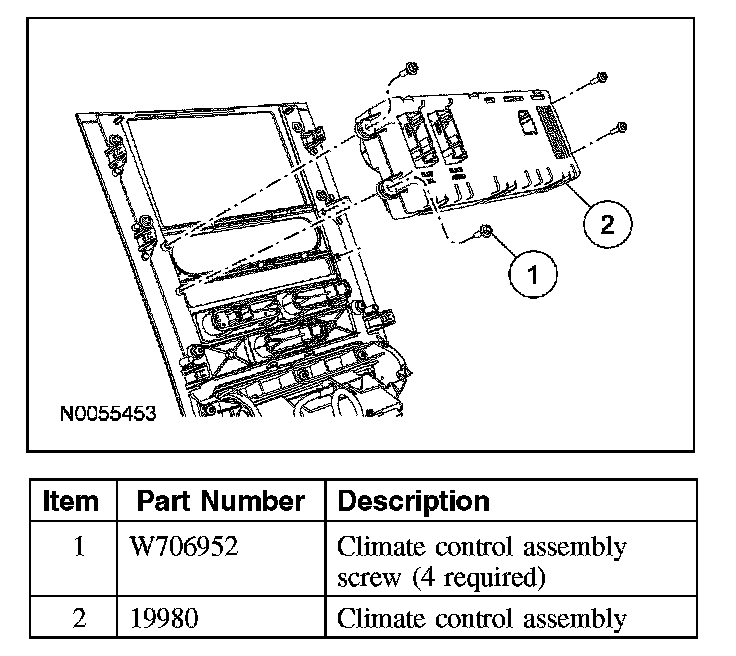

Removal and Installation

NOTE: Navigator shown, expedition similar.

1. Remove the center instrument panel finish panel.
2. Remove the 4 climate control assembly screws.
3. Remove the climate control assembly.
4. To install, reverse the removal procedure.
