Home >> Ford >> 2007 >> Expedition 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Drive/Propeller Shaft

Drive/Propeller Shaft

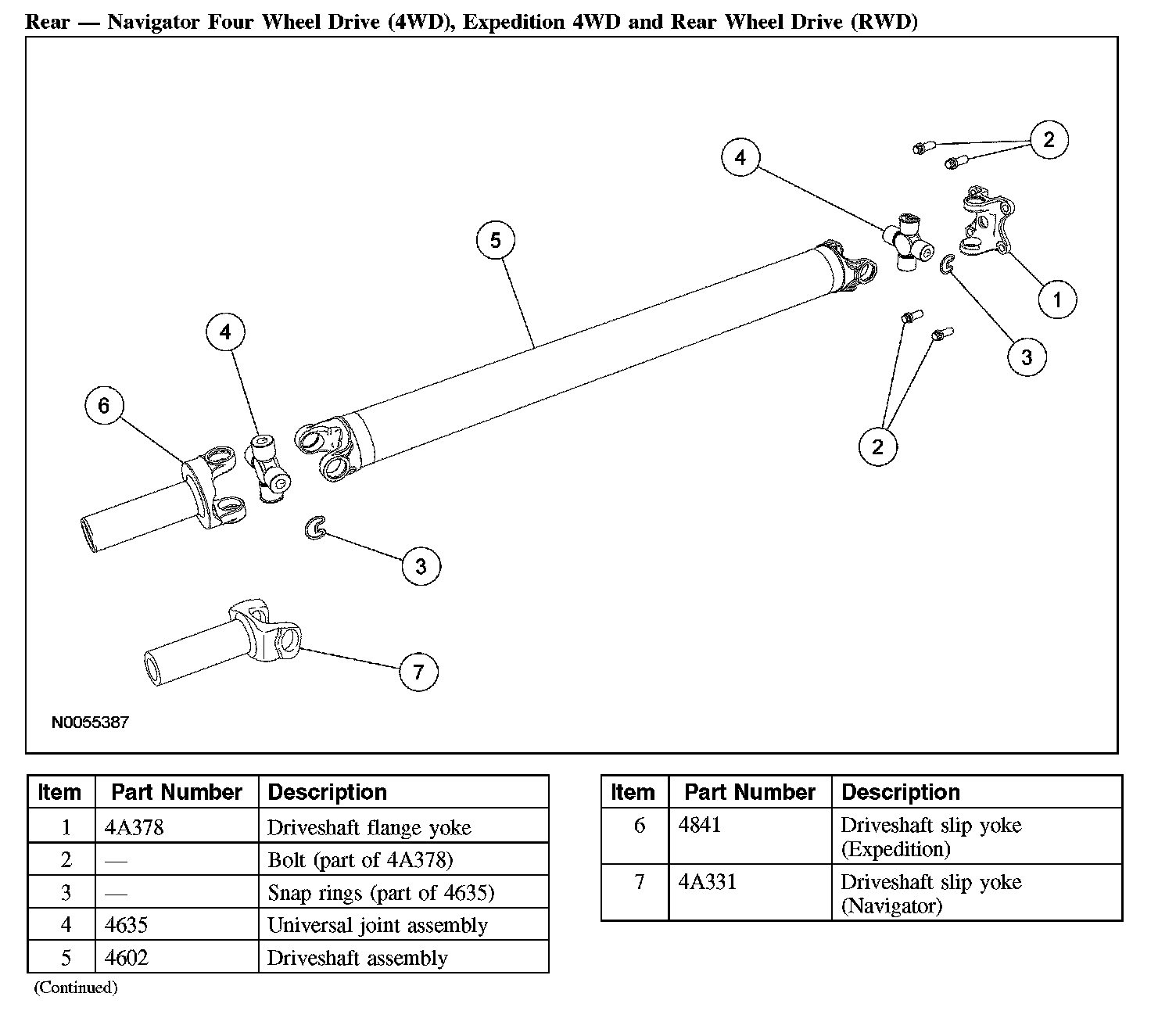

Rear - Navigator Four Wheel Drive (4WD), Expedition 4WD and Rear Wheel Drive (RWD):

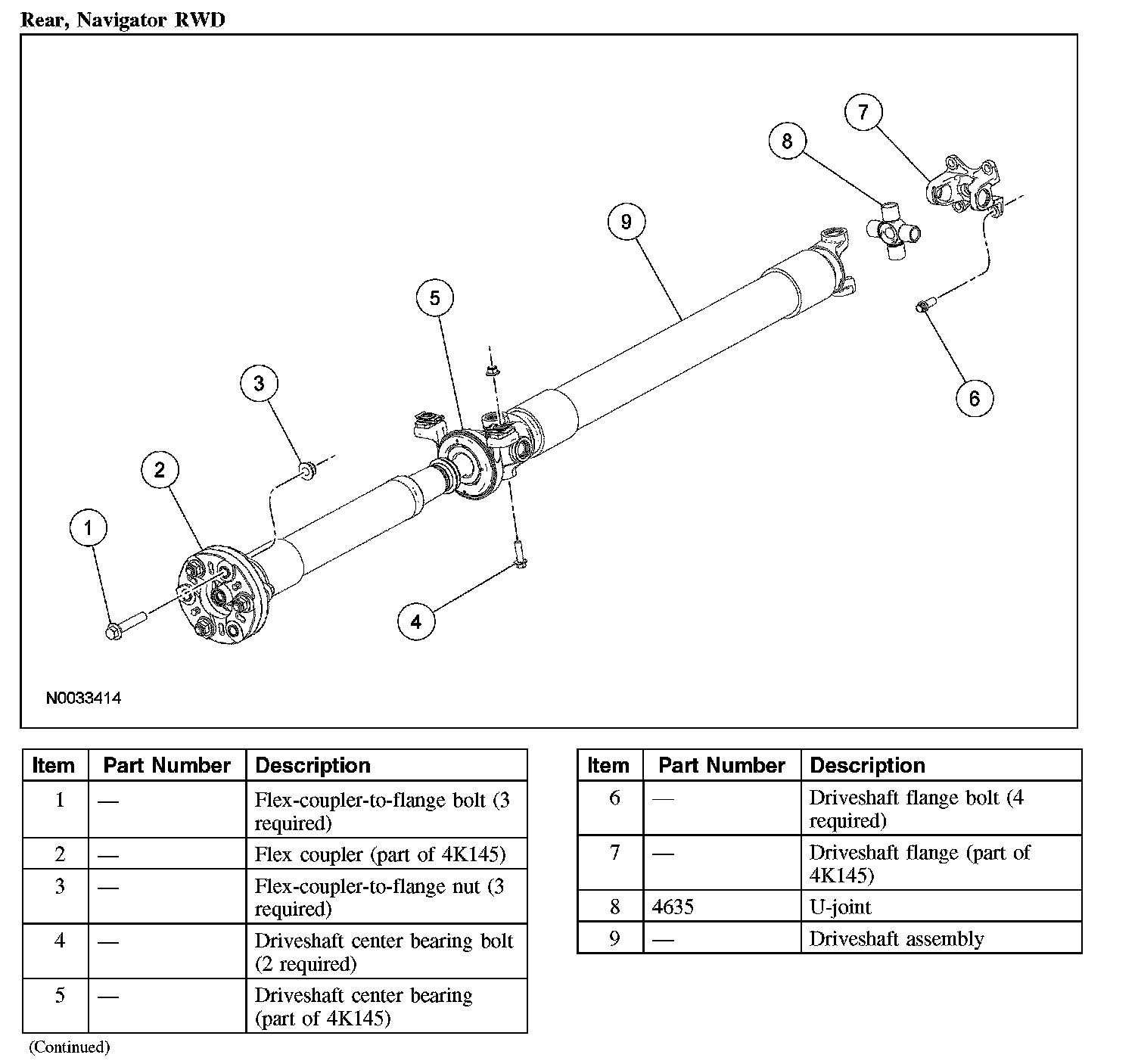

Rear, Navigator RWD:
