Ford
>>
2007
>>
Expedition 2WD V8-5.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
>>
Rear
Rear

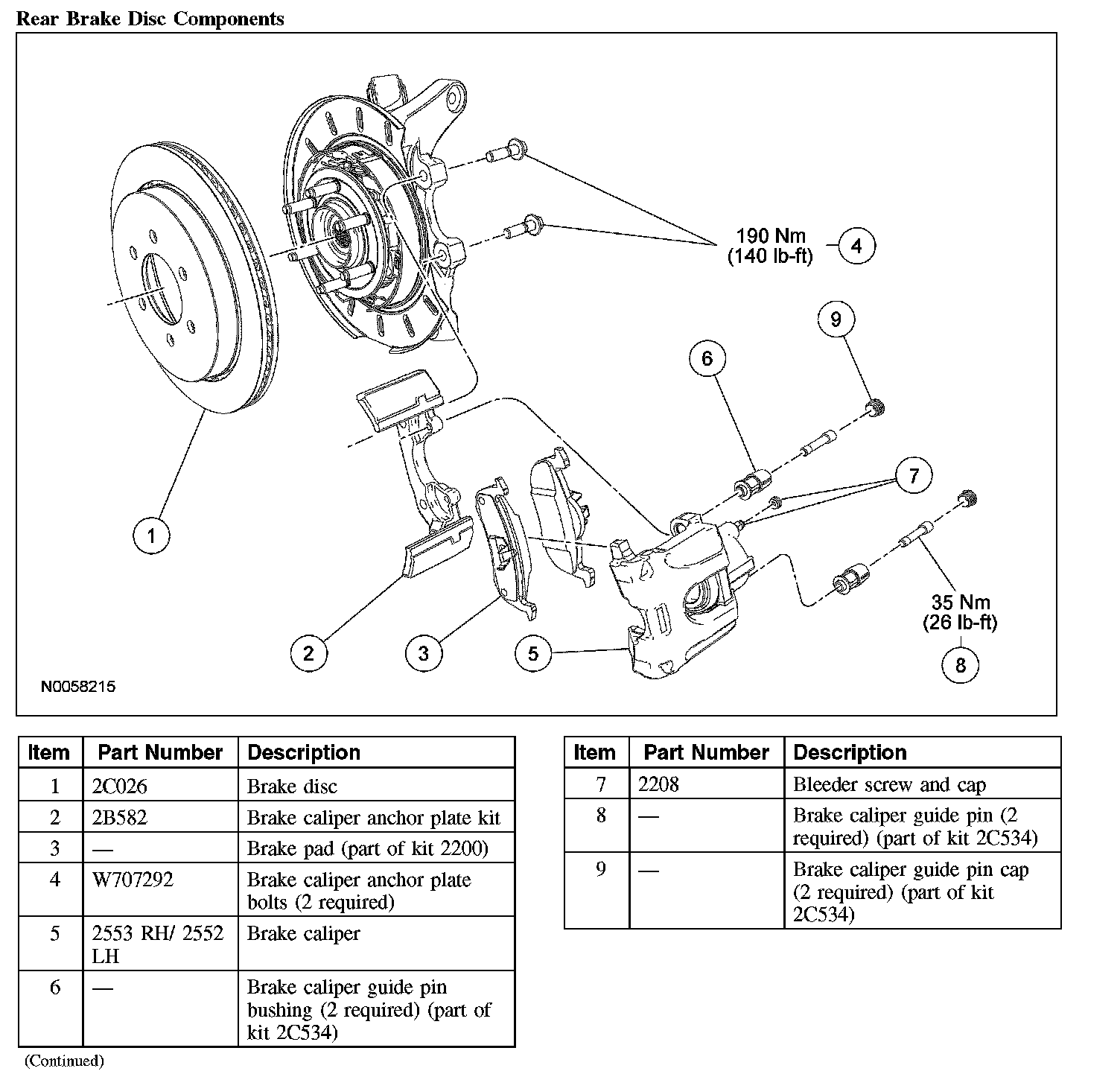

Rear Brake Disc Components
Disc Brake System - Exploded View - Rear Brake Disc Components:
