Disc Brake System
>>
Front
Front
Disc Brake System
- Exploded View

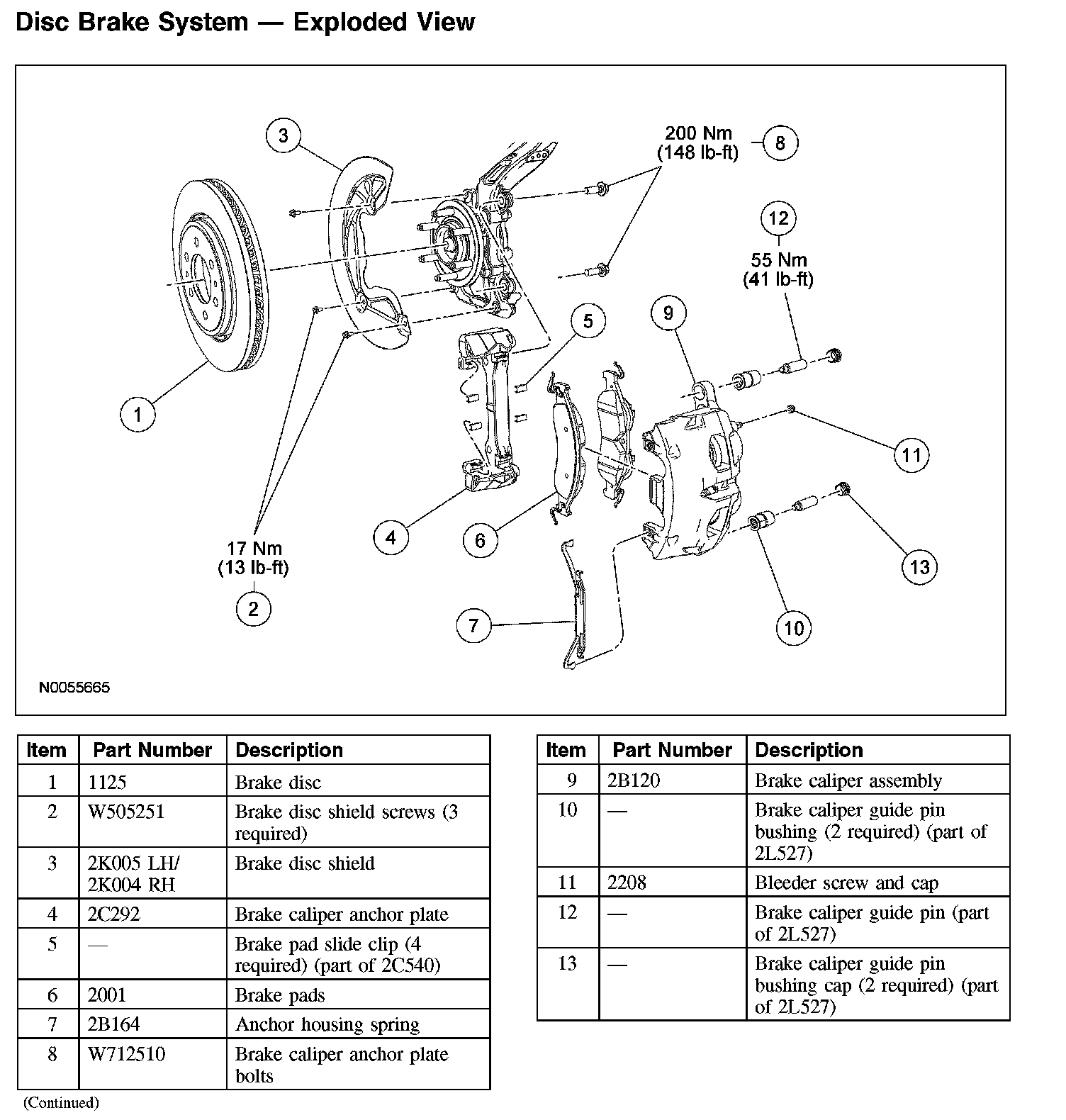

Disc Brake System - Exploded View:
