Home >> Ford >> 2007 >> Expedition 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module

Seat Temperature Control Module

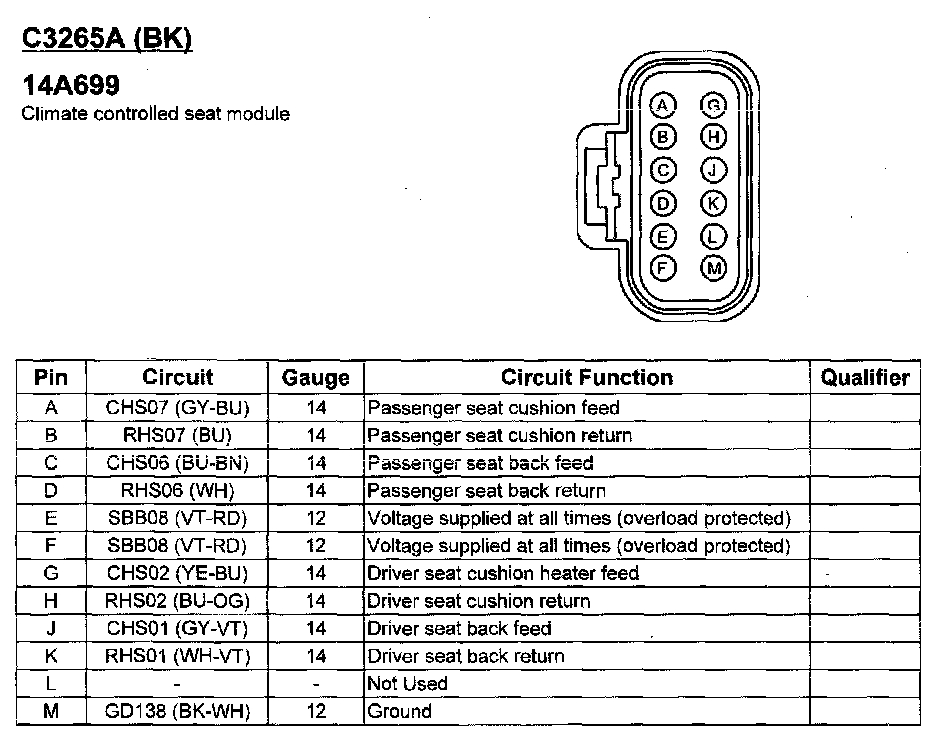

C3265A:

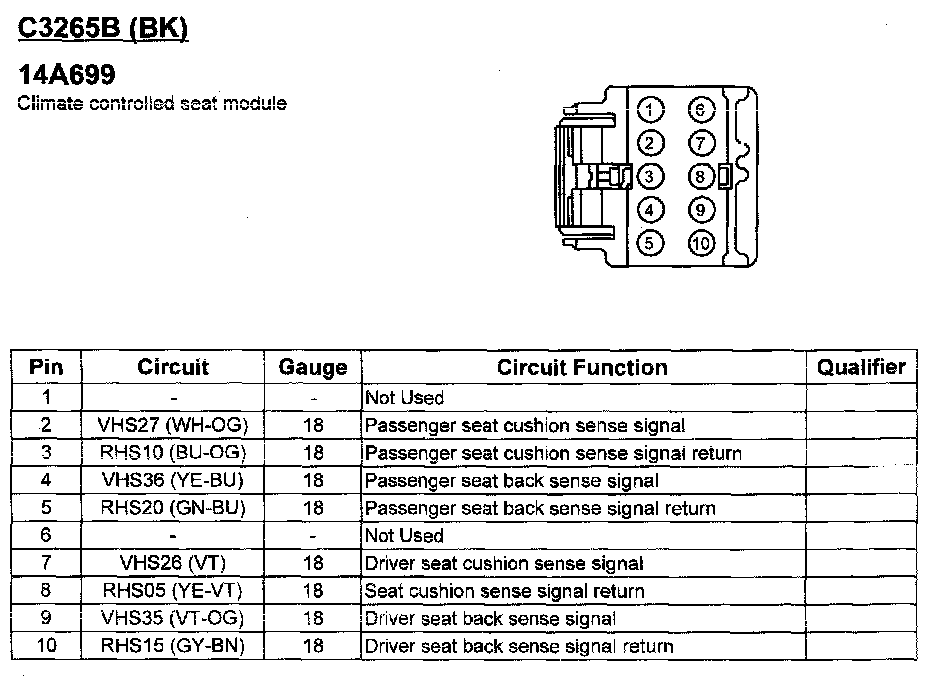

C3265B:

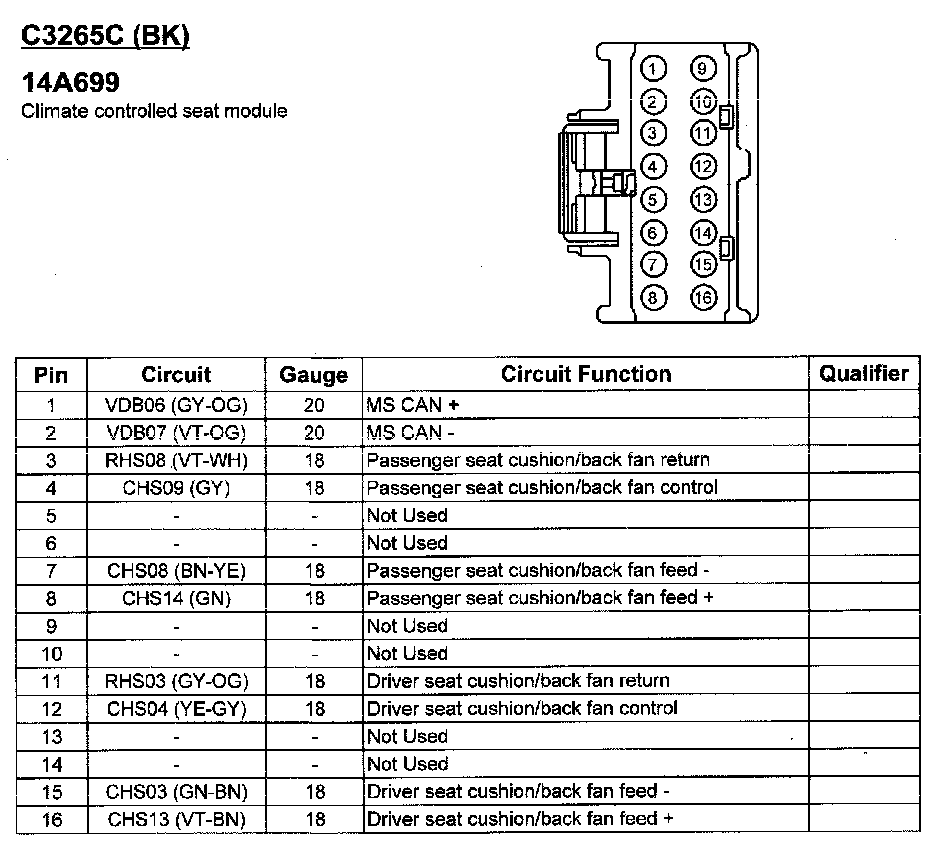

C3265C:
