Home >> Ford >> 2007 >> Expedition 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Memory Positioning Module

Memory Positioning Module

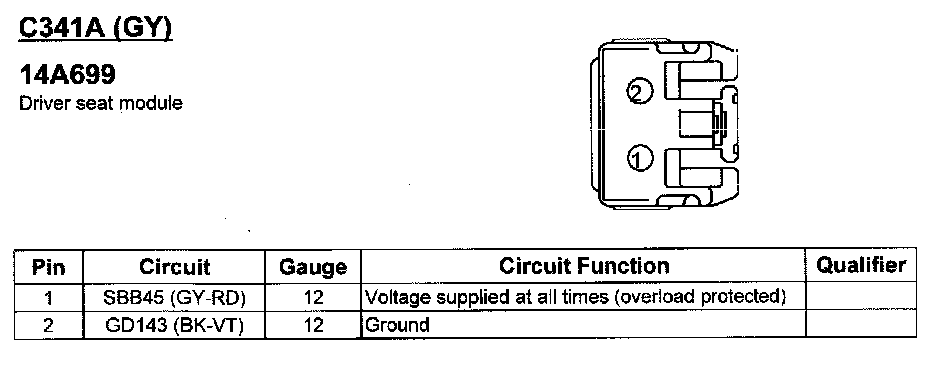

C341A:

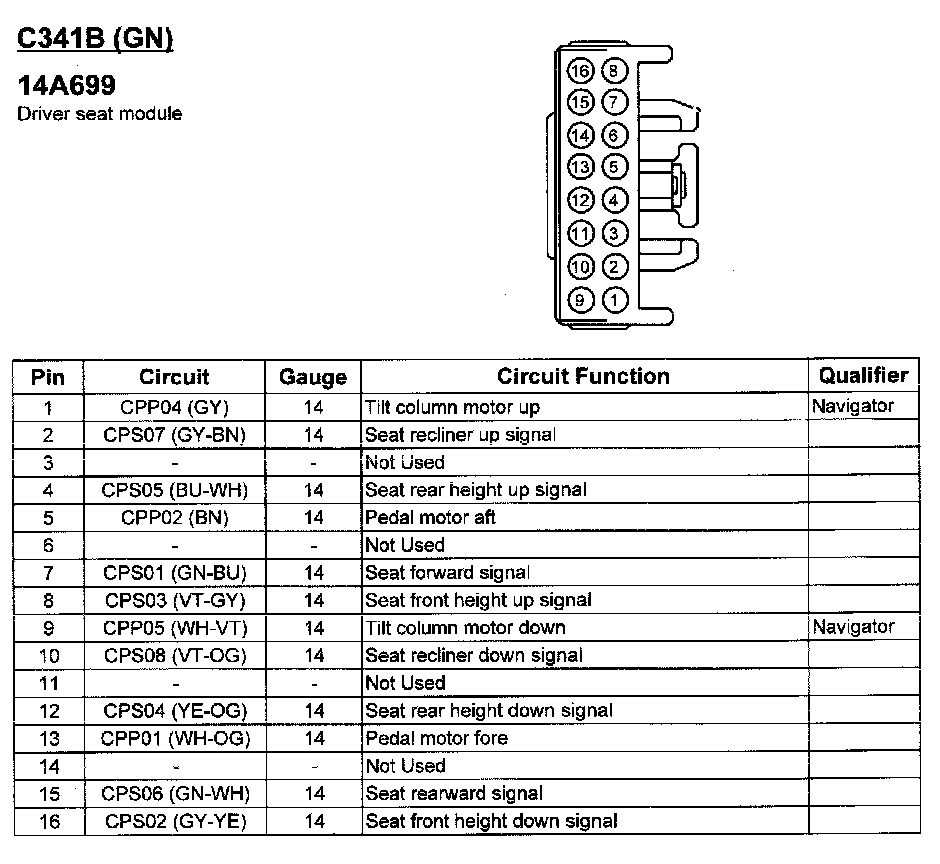

C341B:

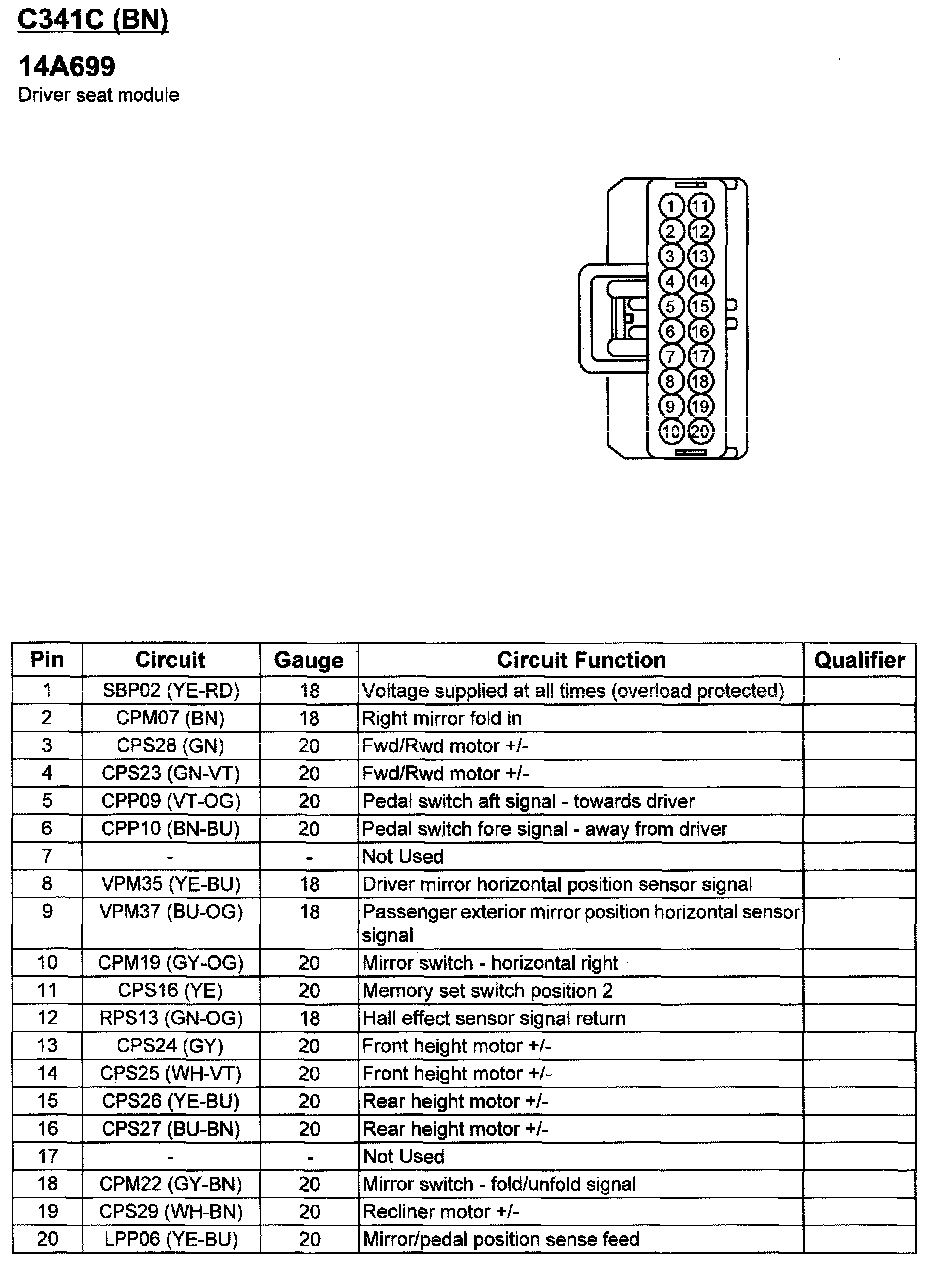

C341C:

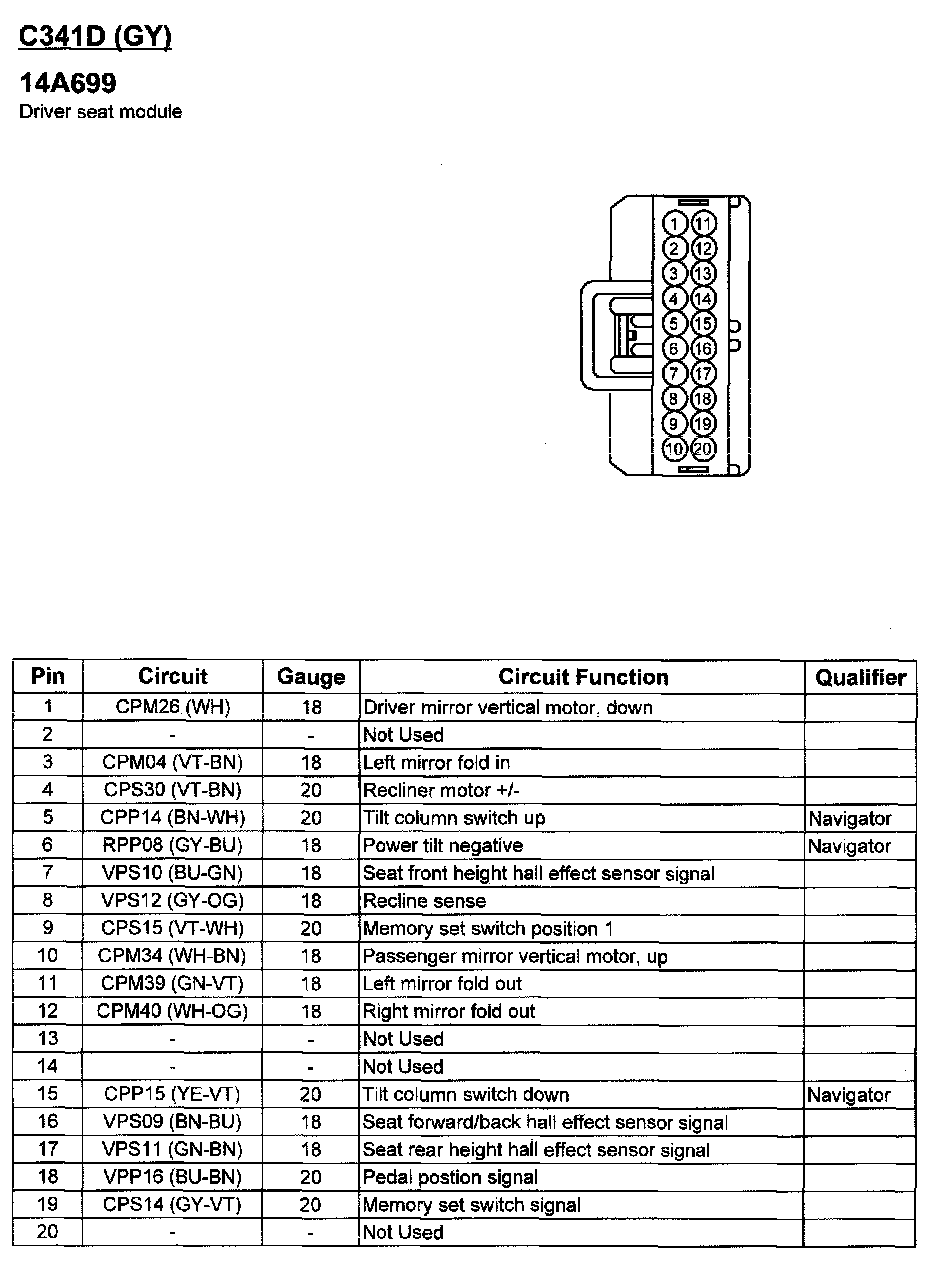

C341D:

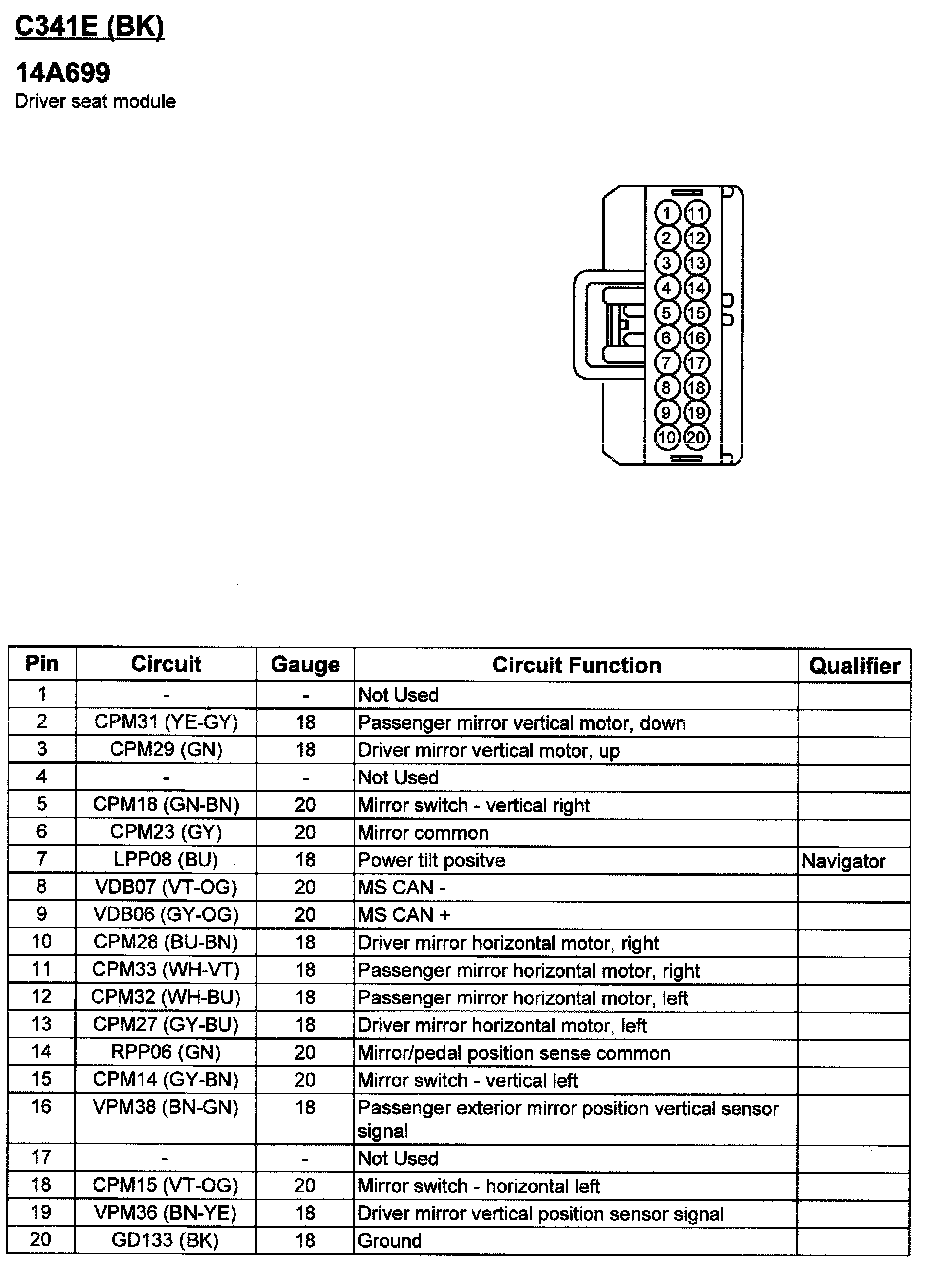

C341E:
