Ford
>>
2007
>>
Expedition 2WD V8-5.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>
Manual Climate Control Module
Manual Climate Control Module

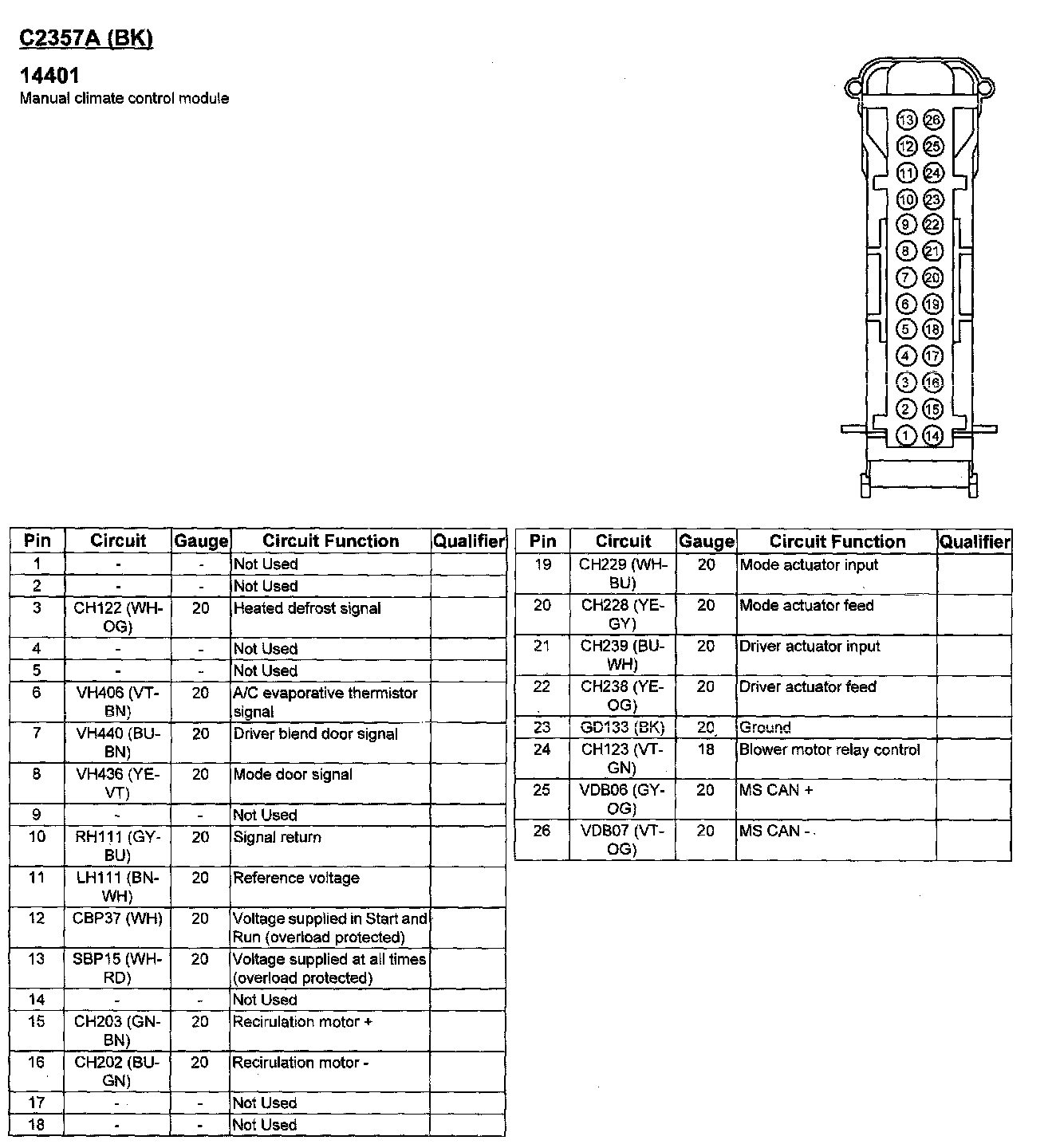

C2357A:

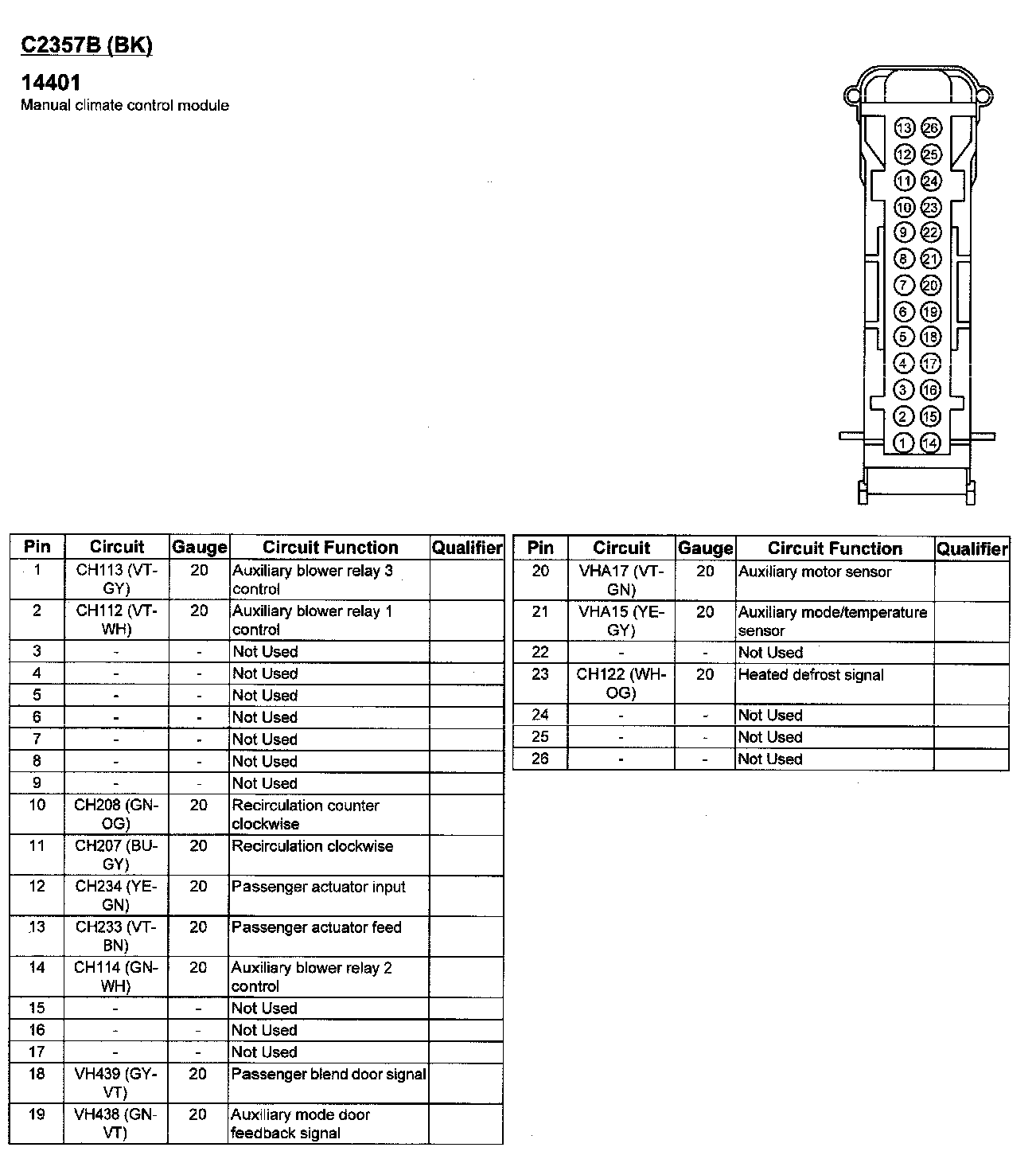

C2357B:

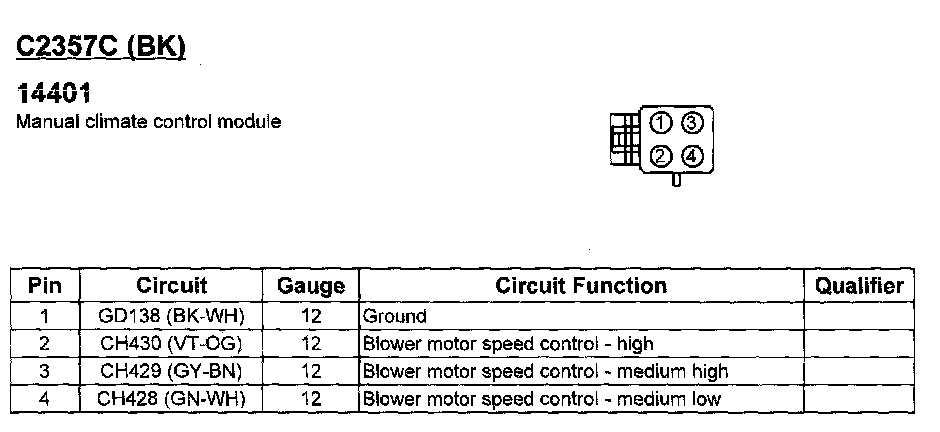

C2357C:
