Home
>>
Ford
>>
2007
>>
Expedition 2WD V8-5.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>

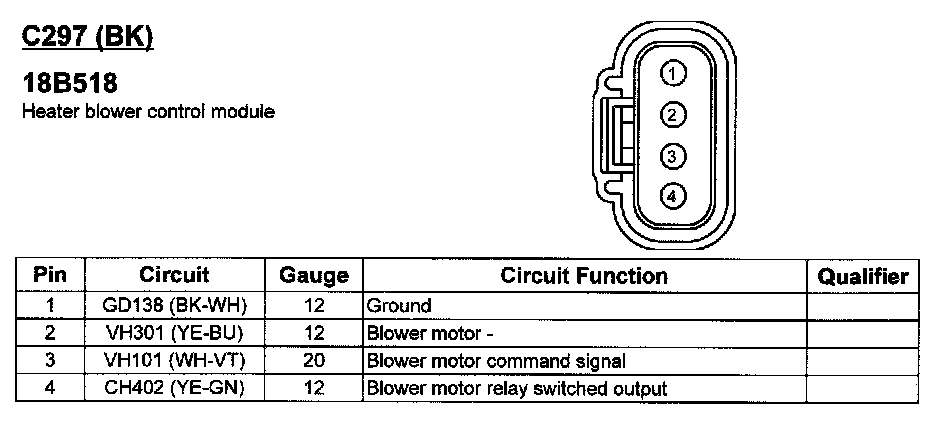

Heater Blower Control Module
Heater Blower Control Module
C297:
