Home >> Ford >> 2007 >> Escape 4WD L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Disc Brake System >> Front

Front

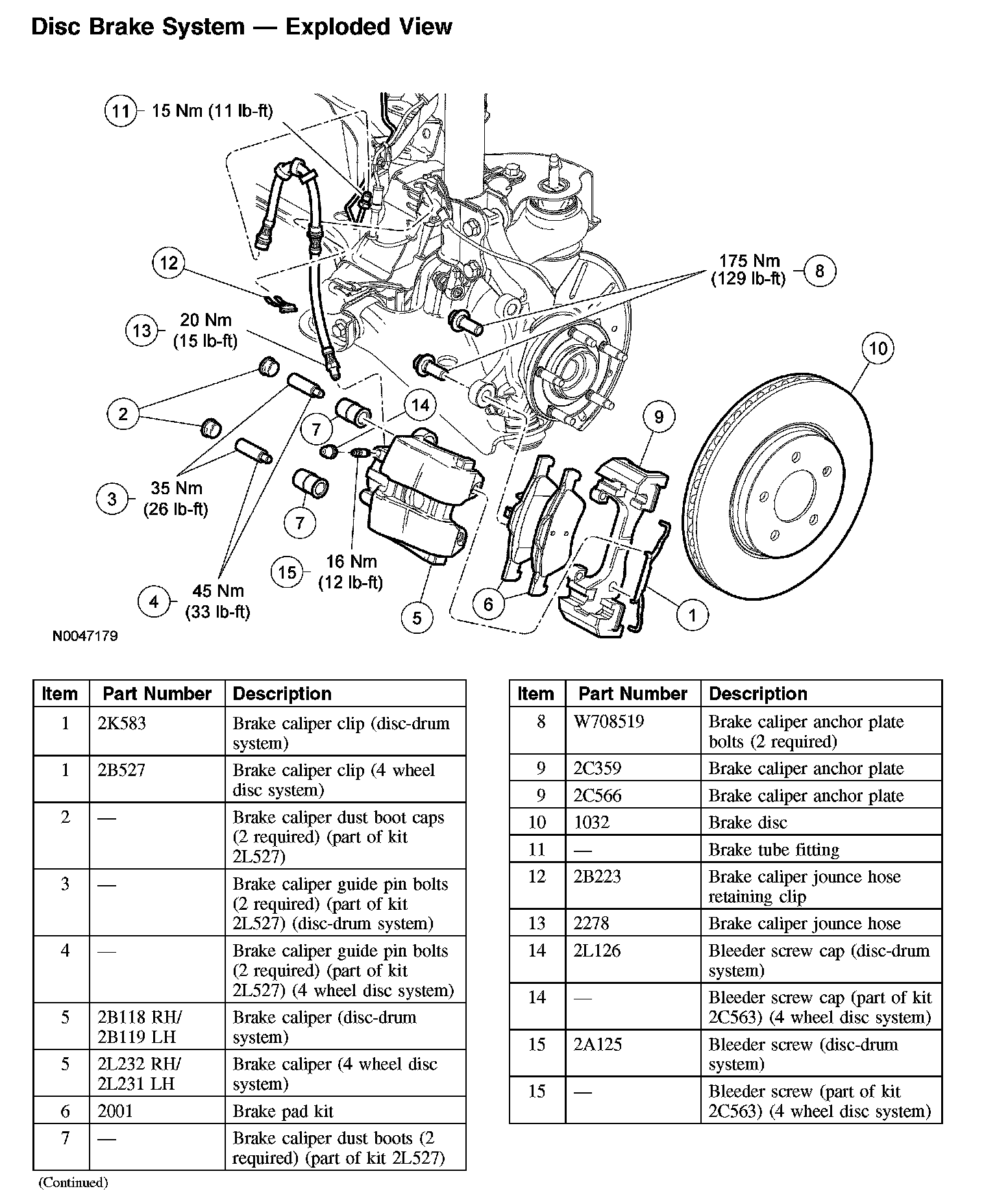

Disc Brake System - Exploded View

Disc Brake System - Exploded View:
