Home >> Ford >> 2007 >> Escape 4WD L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Differential Assembly

Differential Assembly

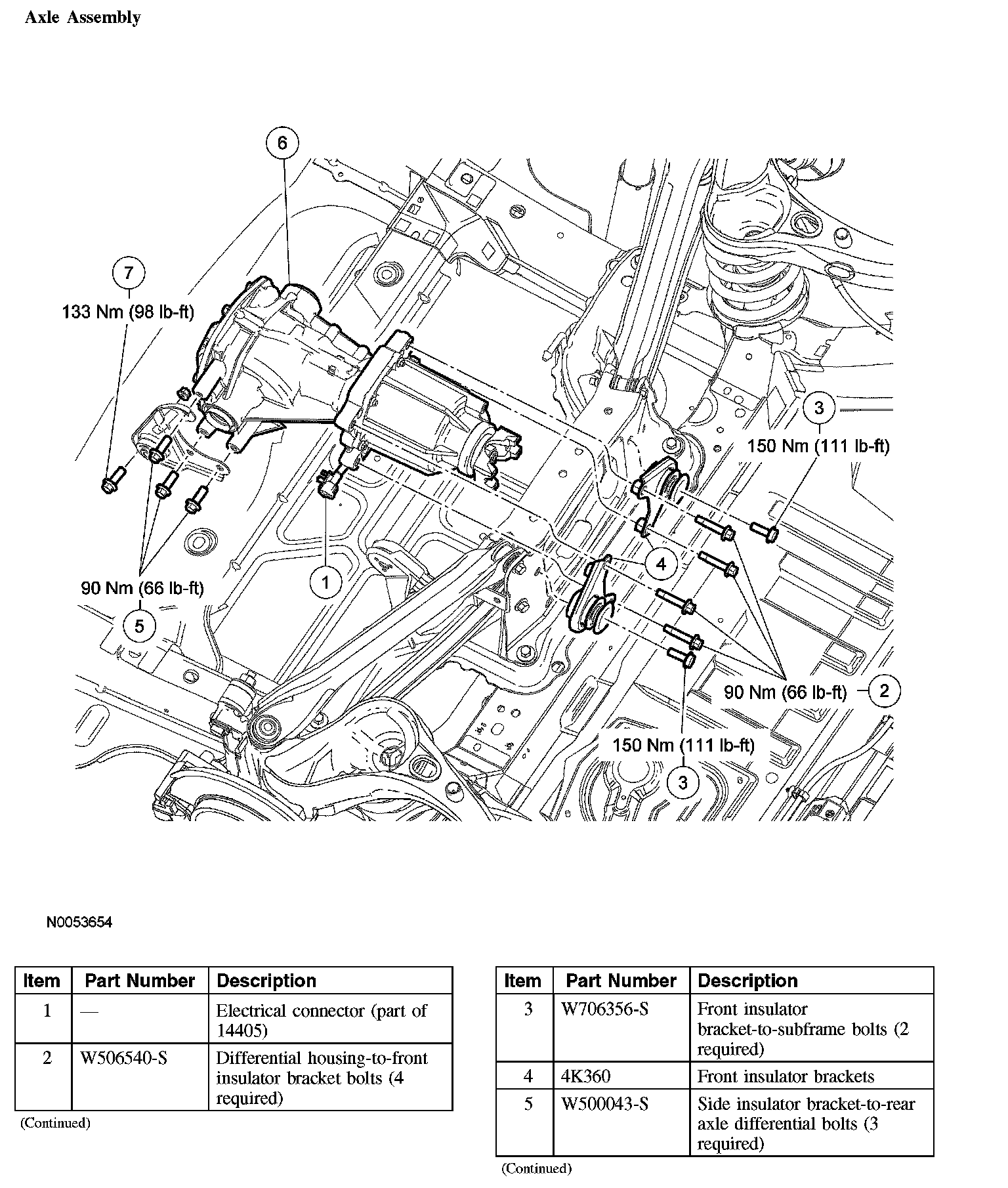

Axle Assembly (Part 1):

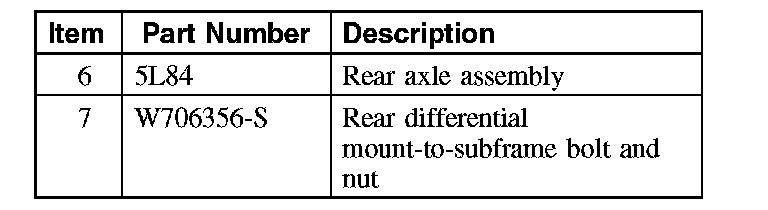

Axle Assembly (Part 2):
