Home >> Ford >> 2007 >> Escape 4WD L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

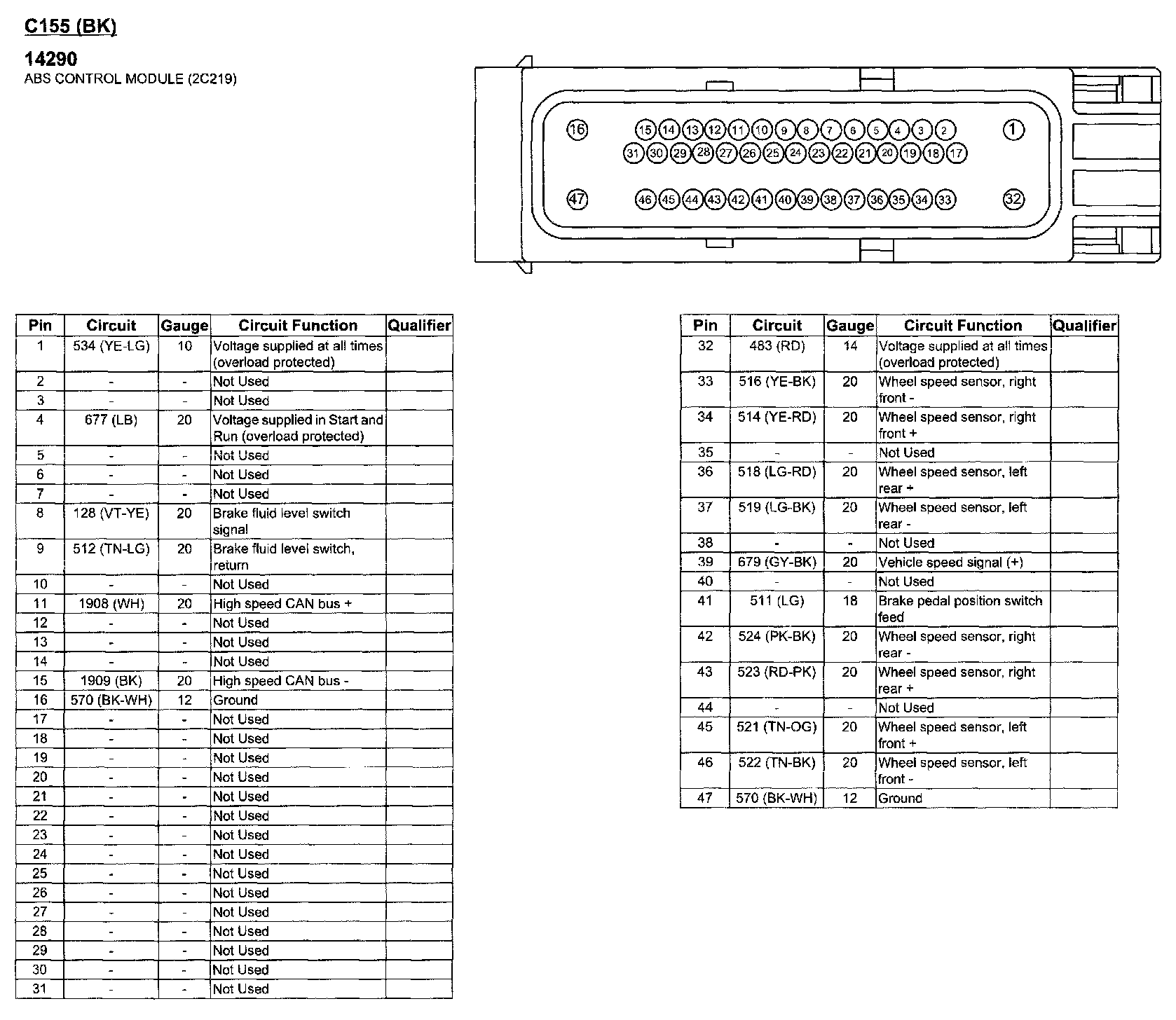

Electronic Brake Control Module

C155:
