Home >> Ford >> 2007 >> Escape 2WD L4-2.3L VIN Z >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Service and Repair >> Function Selector Switch

Function Selector Switch

FUNCTION SELECTOR SWITCH







Removal and Installation
1. Remove the instrument panel center finish panel.

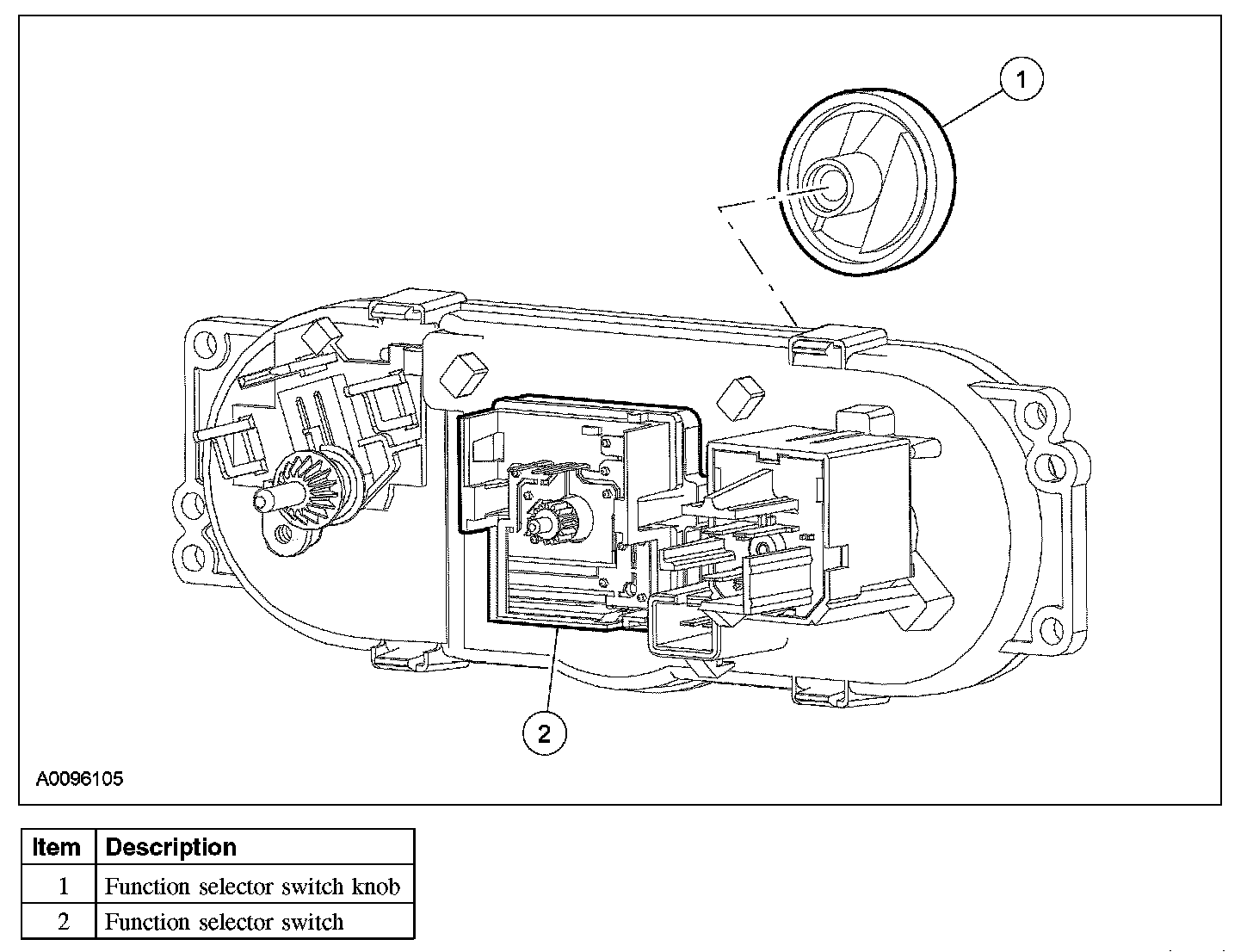

2. Remove the function selector switch knob.

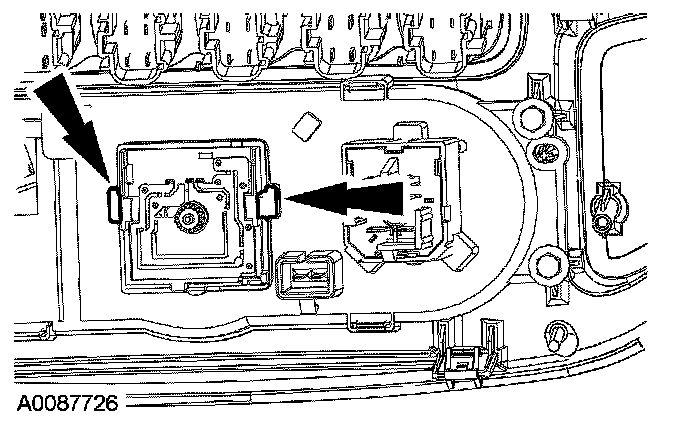

3. Press the tabs simultaneously and remove the function selector switch.
4. To install, reverse the removal procedure.
